And now, onto the post…

Red Hat OpenShift is a comprehensive enterprise-grade application platform built for containers powered by Kubernetes. OpenShift lets developers quickly build, develop, and deploy applications on nearly any infrastructure, public or private.

OpenShift comes in four flavors – OpenShift Origin, OpenShift Online, OpenShift Container Platform, and OpenShift Dedicated. OpenShift Origin is the upstream, open source version which can be installed on Fedora, CentOS or Red Hat Enterprise Linux. OpenShift Online is the hosted version of the platform managed by Red Hat. OpenShift Container Platform is the enterprise offering that can be deployed in the public cloud or within an enterprise data center. OpenShift Dedicated is a single-tenant, highly-available cluster running in the public cloud.

For this walk-through, we are using a cluster running OpenShift Origin.

Portworx is a cloud native storage platform to run persistent workloads deployed on a variety of orchestration engines including Kubernetes. With Portworx, customers can manage the database of their choice on any infrastructure using any container scheduler. It provides a single data management layer for all stateful services, no matter where they run.

Portworx is Red Hat certified for Red Hat OpenShift Container Platform and PX-Enterprise is available in the Red Hat Container Catalog. This certification enables enterprises to confidently run high-performance stateful applications like databases, big and fast data workloads, and machine learning applications on the Red Hat OpenShift Container Platform. Learn more about Portworx & OpenShift in our Product Brief.

This tutorial is a walk-through of the steps involved in deploying and managing a highly available Microsoft SQL Server database on Red Hat OpenShift. Portworx is a Microsoft SQL Server high availability and disaster recovery partner and this tutorial will show you how to reliably run this database for mission-critical applications.

In summary, to run HA SQL Server on Red Hat OpenShift you need to:

  1. Launch a Red Hat OpenShift cluster
  2. Install cloud native storage solution like Portworx as a DaemonSet on OKD
  3. Create a storage class defining your storage requirements like replication factor, snapshot policy, and performance profile
  4. Deploy SQL Server on OpenShift
  5. Test failover by killing or cordoning node in your cluster
  6. Expand the storage volume without downtime
  7. Backup and restore SQL Server from a snapshot

While not covered in this tutorial, Portworx also enables the following capabilities for MS SQL server.

  • Bring-your-own key encryption of data volumes for data protection
  • Zero RPO failover of MS SQL server pods between data centers in a metropolitan area (defined by maximum 15 milliseconds round trip latency)
  • Near RPO zero failover for MS SQL server pods between data centers across the WAN
  • Application and data backup and restore across environments with a single Kubernetes command for scheduled and unscheduled maintenance, blue-green deployments or copy data management.

How to install and configure an OpenShift Origin cluster

OpenShift Origin can be deployed in a variety of environments ranging from VirtualBox to a public cloud IaaS such as Amazon, Google, Azure. Refer to the official installation guide for the steps involved in setting up your own cluster. For this guide, we run an OpenShift Origin (OKD) cluster in AWS.

Your OpenShift cluster setup should look similar to the below configuration. It is recommended that you run at least 3 nodes for the HA configuration.

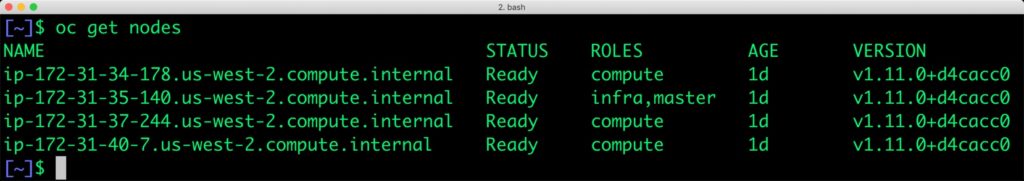

$ oc get nodes
NAME                                          STATUS    ROLES          AGE       VERSION
ip-172-31-34-178.us-west-2.compute.internal   Ready     compute        1d        v1.11.0+d4cacc0
ip-172-31-35-140.us-west-2.compute.internal   Ready     infra,master   1d        v1.11.0+d4cacc0
ip-172-31-37-244.us-west-2.compute.internal   Ready     compute        1d        v1.11.0+d4cacc0
ip-172-31-40-7.us-west-2.compute.internal     Ready     compute        1d        v1.11.0+d4cacc0

px-sql-okd

Though almost all the steps can be performed through the OpenShift Console, we are using the oc CLI. Please note that most of the kubectl commands are available through oc tool. You may find the tools used interchangeably.

Installing Portworx in OpenShift

Since OpenShift is based on Kubernetes, the steps involved in installing Portworx are not very different from the standard Kubernetes installation. Portworx documentation has a detailed guide with the prerequisites and all the steps to install on OpenShift.

Before proceeding further, ensure that Portworx is up and running on OpenShift.

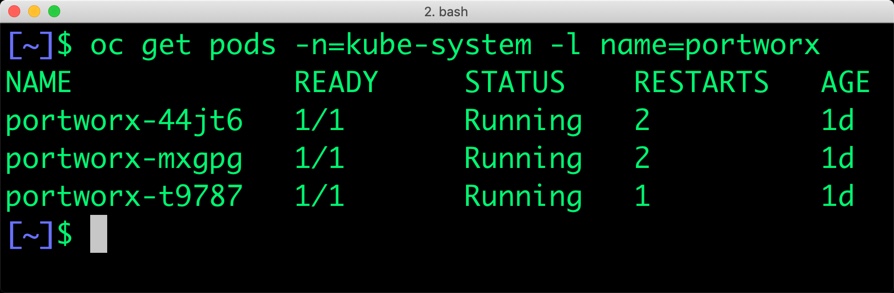

$ oc get pods -n=kube-system -l name=portworx
NAME             READY     STATUS    RESTARTS   AGE
portworx-44jt6   1/1       Running   2          1d
portworx-mxgpg   1/1       Running   2          1d
portworx-t9787   1/1       Running   1          1d

px-sql-okd-1

Creating a storage class for MS SQL Server

Once the OKD cluster is up and running, and Portworx is installed and configured, we will deploy a highly available Microsoft SQL Server stack in Kubernetes.

Through storage class objects, an admin can define different classes of Portworx volumes that are offered in a cluster. These classes will be used during the dynamic provisioning of volumes. The storage class defines the replication factor, I/O profile (e.g., for a database or a CMS), and priority (e.g., SSD or HDD). These parameters impact the availability and throughput of workloads and can be specified for each volume. This is important because a production database will have different requirements than a development Jenkins cluster.

$ cat > px-sql-sc.yaml << EOF
kind: StorageClass
apiVersion: storage.k8s.io/v1beta1
metadata:
    name: px-mssql-sc
provisioner: kubernetes.io/portworx-volume
parameters:
   repl: "3"
   io_profile: "db_remote"
   priority_io: "high"
allowVolumeExpansion: true
EOF

Create the storage class and verify it’s available in the default namespace.

$ oc create -f px-sql-sc.yaml
storageclass.storage.k8s.io/px-mssql-sc created

$ oc get sc
NAME                 PROVISIONER                     AGE
px-mssql-sc         kubernetes.io/portworx-volume   11s
stork-snapshot-sc    stork-snapshot                  1d

Creating an MS SQL Server PVC

We can now create a Persistent Volume Claim (PVC) based on the Storage Class. Thanks to dynamic provisioning, the claims will be created without explicitly provisioning Persistent Volume (PV).

$ cat > px-sql-pvc.yaml << EOF
kind: PersistentVolumeClaim
apiVersion: v1
metadata:
   name: mssql-data
   annotations:
     volume.beta.kubernetes.io/storage-class: px-mssql-sc
spec:
   accessModes:
     - ReadWriteOnce
   resources:
     requests:
       storage: 5Gi
EOF
$ oc create -f px-sql-pvc.yaml
persistentvolumeclaim/mssql-data created

Let’s verify the PVC with the following command:

$ oc get pvc
NAME         STATUS    VOLUME                                     CAPACITY   ACCESS MODES   STORAGECLASS   AGE
mssql-data   Bound     pvc-31f9ff1e-69a7-11e9-9fb5-06d84be752aa   5Gi        RWO            px-mssql-sc    6s

Deploying MS SQL Server on OpenShift

Finally, let’s create a Microsoft SQL Server instance as a Kubernetes deployment object. For simplicity sake, we will just be deploying a single SQL Server pod. Because Portworx provides synchronous replication for High Availability, a single SQL Server instance might be the best deployment option for your SQL database. Portworx can also provide backing volumes for multi-node SQL Server deployments. The choice is yours.

cat > px-sql-db.yaml << EOF
apiVersion: apps/v1
kind: Deployment
metadata:
  name: mssql
spec:
  strategy:
    rollingUpdate:
      maxSurge: 1
      maxUnavailable: 1
    type: RollingUpdate
  replicas: 1
  selector:
    matchLabels:
      app: mssql
  template:
    metadata:
      labels:
        app: mssql
    spec:
      containers:
      - name: mssql
        image: microsoft/mssql-server-linux:2017-latest
        imagePullPolicy: "IfNotPresent"
        ports:
        - containerPort: 1433
        env:
        - name: ACCEPT_EULA
          value: "Y"
        - name: SA_PASSWORD
          value:  "P@ssw0rd"
        volumeMounts:
        - mountPath: /var/opt/mssql
          name: mssqldb
      volumes:
      - name: mssqldb
        persistentVolumeClaim:
          claimName: mssql-data
EOF
$ oc create -f px-sql-db.yaml
deployment.extensions/mssql created

Make sure that the SQL Server pods are in the Running state.

$ oc get pods -l app=mssql -o wide --watch

Wait till the SQL Server pod reaches the Running state.

$ oc get pods -l app=mssql -o wide --watch
NAME                     READY     STATUS    RESTARTS   AGE       IP           NODE                                          NOMINATED NODE
mssql-79759f8f66-f2s4g   1/1       Running   0          1m        10.129.0.4   ip-172-31-44-215.us-west-2.compute.internal

We can inspect the Portworx volume by accessing the pxctl tool running with the SQL Pod.

$ VOL=`oc get pvc | grep mssql-data | awk '{print $3}'`
$ PX_POD=$(oc get pods -l name=portworx -n kube-system -o jsonpath='{.items[0].metadata.name}')
$ oc exec -it $PX_POD -n kube-system -- /opt/pwx/bin/pxctl volume inspect ${VOL}

px-sql-okd

The output from the above command confirms the creation of volumes that are backing the SQL Server database instance.

Failing over MS SQL Server on OpenShift

Let’s populate the database with sample data.

Create a SQL file with the below statements:

CREATE DATABASE classicmodels;
go

USE classicmodels;
go

CREATE TABLE offices (
  officeCode varchar(10) NOT NULL,
  city varchar(50) NOT NULL,
  phone varchar(50) NOT NULL,
  addressLine1 varchar(50) NOT NULL,
  addressLine2 varchar(50) DEFAULT NULL,
  state varchar(50) DEFAULT NULL,
  country varchar(50) NOT NULL,
  postalCode varchar(15) NOT NULL,
  territory varchar(10) NOT NULL,
);
go

insert  into offices(officeCode,city,phone,addressLine1,addressLine2,state,country,postalCode,territory) values
('1','San Francisco','+1 650 219 4782','100 Market Street','Suite 300','CA','USA','94080','NA'),
('2','Boston','+1 215 837 0825','1550 Court Place','Suite 102','MA','USA','02107','NA'),
('3','NYC','+1 212 555 3000','523 East 53rd Street','apt. 5A','NY','USA','10022','NA'),
('4','Paris','+33 14 723 4404','43 Rue Jouffroy abbans',NULL,NULL,'France','75017','EMEA'),
('5','Tokyo','+81 33 224 5000','4-1 Kioicho',NULL,'Chiyoda-Ku','Japan','102-8578','Japan'),
('6','Sydney','+61 2 9264 2451','5-11 Wentworth Avenue','Floor #2',NULL,'Australia','NSW 2010','APAC'),
('7','London','+44 20 7877 2041','25 Old Broad Street','Level 7',NULL,'UK','EC2N 1HN','EMEA');
go

We will copy the sample data to the MS SQL pod before loading it through the SQLCMD utility.

$ SQL_POD=$(oc get pods -l app=mssql -o jsonpath='{.items[0].metadata.name}')
$ oc cp sample_data.sql $SQL_POD:/tmp

Let’s load the sample data into SQL Server.

$ oc exec $SQL_POD -- /opt/mssql-tools/bin/sqlcmd -U sa -P P@ssw0rd -i /tmp/sample_data.sql

We can query the database by running the below command:

$ oc exec $SQL_POD -- /opt/mssql-tools/bin/sqlcmd -U sa -P P@ssw0rd -d classicmodels -Q 'select * from offices'

The below query shows only the cities from the table.

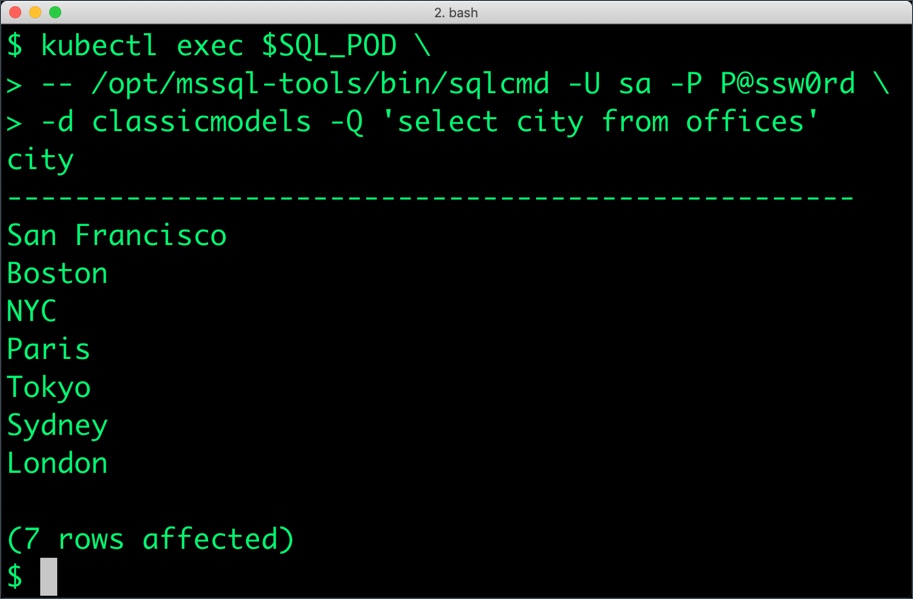

$ oc exec $SQL_POD \
-- /opt/mssql-tools/bin/sqlcmd -U sa -P P@ssw0rd \
-d classicmodels -Q 'select city from offices'

px-sql-okd-3

Now, let’s simulate the node failure by cordoning off the node on which SQL Server is running.

$ NODE=`oc get pods -l app=mssql -o wide | grep -v NAME | awk '{print $7}'`
$ oc adm cordon ${NODE}
node/ip-172-31-44-215.us-west-2.compute.internal cordoned

We will now go ahead and delete the SQL Server pod.

$ POD=`oc get pods -l app=mssql -o wide | grep -v NAME | awk '{print $1}'`
$ oc delete pod ${POD}
pod "mssql-79759f8f66-f2s4g" deleted

As soon as the pod is deleted, it is relocated to the node with the replicated data. STorage ORchestrator for Kubernetes (STORK), Portworx’s custom storage scheduler allows co-locating the pod on the exact node where the data is stored. It ensures that an appropriate node is selected for scheduling the pod.

Let’s verify this by running the below command. We will notice that a new pod has been created and scheduled in a different node.

$ oc get pods -l app=mssql
NAME                     READY   STATUS              RESTARTS   AGE
mssql-79759f8f66-d99hg   0/1       ContainerCreating   0          18s

Wait till the pod is ready and run the select query in it.

$ SQL_POD=$(oc get pods -l app=mssql -o jsonpath='{.items[0].metadata.name}')
$ oc exec $SQL_POD \
-- /opt/mssql-tools/bin/sqlcmd -U sa -P P@ssw0rd \
-d classicmodels -Q 'select city from offices'

Observe that the database table is still there and all the content intact!

Performing Storage Operations on OpenShift

After testing end-to-end failover of the database, let’s perform StorageOps on our OKD cluster.

Expanding the Volume with no downtime

Let’s first get the Portworx volume name backing the SQL Server deployment and inspect it through the pxctl tool.

$ VOL=`oc get pvc | grep mssql-data | awk '{print $3}'`
$ PX_POD=$(oc get pods -l name=portworx -n kube-system -o jsonpath='{.items[0].metadata.name}')

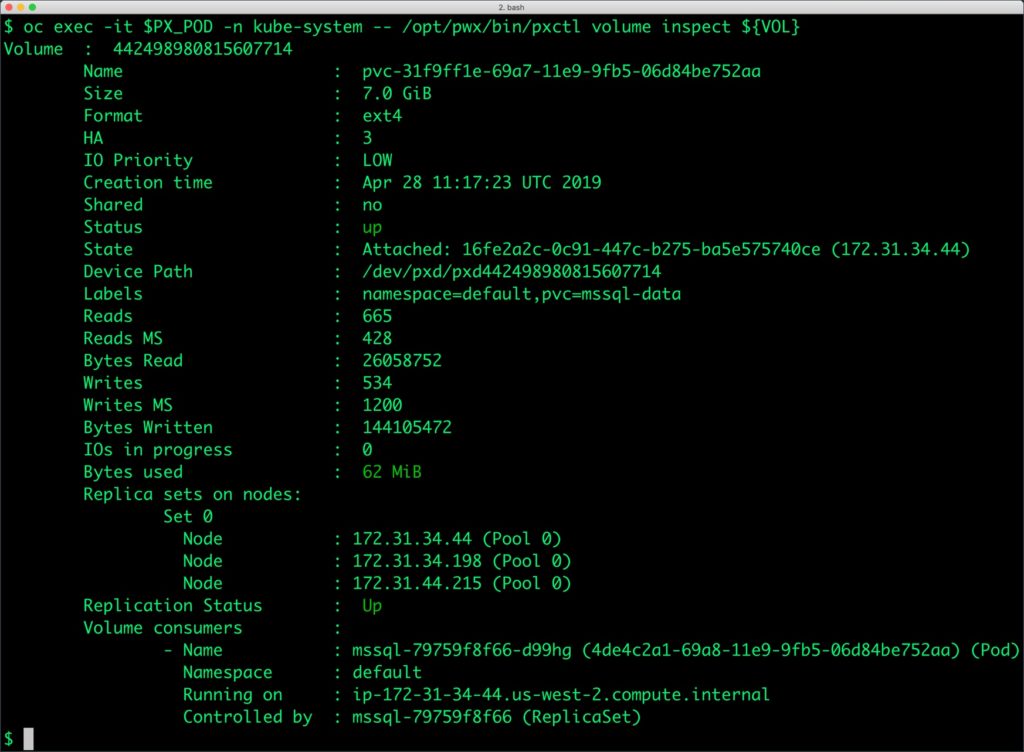

$ oc exec -it $PX_POD -n kube-system -- /opt/pwx/bin/pxctl volume inspect ${VOL}

The current volume size is 5GiB as defined in the PVC specification. Let’s expand it to 7GiB using the following command.

$ oc exec -it $PX_POD -n kube-system --  /opt/pwx/bin/pxctl volume update $VOL --size=7
Update Volume: Volume update successful for volume pvc-31f9ff1e-69a7-11e9-9fb5-06d84be752aa

px-sql-okd-4

Backing up and restoring a SQL Server instance through snapshots

Portworx supports creating Snapshots for Kubernetes PVCs. Since there is only one SQL Server instance, we can use regular, local snapshots to backup and restore.

Let’s create a snapshot for the Kubernetes PVC we created for SQL Server.

cat >  px-sql-snap.yaml << EOF
apiVersion: volumesnapshot.external-storage.k8s.io/v1
kind: VolumeSnapshot
metadata:
  name: px-sql-snapshot
  namespace: default
spec:
  persistentVolumeClaimName: mssql-data
EOF
$ oc create -f px-sql-snap.yaml
volumesnapshot.volumesnapshot.external-storage.k8s.io/px-sql-snapshot created

Verify the creation of the volume snapshot.

$ oc get volumesnapshot
NAME                AGE
px-sql-snapshot   25s
$ oc get volumesnapshotdatas
NAME                                                       AGE
k8s-volume-snapshot-251628c0-6406-11e9-85ba-0a580a340105   33s

We can now create a new PVC from the snapshot.

$ cat > px-sql-snap-pvc.yaml << EOF
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: px-sql-snap-clone
  annotations:
    snapshot.alpha.kubernetes.io/snapshot: px-sql-snapshot
spec:
  accessModes:
     - ReadWriteOnce
  storageClassName: stork-snapshot-sc
  resources:
    requests:
      storage: 5Gi
EOF
$ oc create -f px-sql-snap-pvc.yaml
persistentvolumeclaim/px-sql-snap-clone created

A new SQL Server pod based on the new PVC restored from the snapshot will contain the data from the original volume.

$ cat > px-sql-db-clone.yaml << EOF
apiVersion: apps/v1
kind: Deployment
metadata:
  name: mssql-snap
spec:
  strategy:
    rollingUpdate:
      maxSurge: 1
      maxUnavailable: 1
    type: RollingUpdate
  replicas: 1
  selector:
    matchLabels:
      app: mssql-snap
  template:
    metadata:
      labels:
        app: mssql-snap
    spec:
      containers:
      - name: mssql
        image: microsoft/mssql-server-linux:2017-latest
        imagePullPolicy: "IfNotPresent"
        ports:
        - containerPort: 1433
        env:
        - name: ACCEPT_EULA
          value: "Y"
        - name: SA_PASSWORD
          value:  "P@ssw0rd"
        volumeMounts:
        - mountPath: /var/opt/mssql
          name: mssqldb
      volumes:
      - name: mssqldb
        persistentVolumeClaim:
          claimName: px-sql-snap-clone
EOF

$ oc create -f px-sql-db-clone.yaml
deployment.extensions/mssql-snap created

Querying the new SQL Server pod will show the same data as the original.

$ SQL_POD=$(oc get pods -l app=mssql-snap -o jsonpath='{.items[1].metadata.name}')
$ oc exec $SQL_POD \
> -- /opt/mssql-tools/bin/sqlcmd -U sa -P P@ssw0rd \
> -d classicmodels -Q 'select city from offices'
city
--------------------------------------------------
San Francisco
Boston
NYC
Paris
Tokyo
Sydney
London

(7 rows affected)

Summary

Portworx can easily be deployed on Red Hat OpenShift to run stateful workloads in production. It integrates well with Kubernetes and OpenShift StatefulSets by providing dynamic provisioning. Additional operations such as expanding the volumes and performing backups stored as snapshots on object storage can be performed while managing production workloads.

Share
Subscribe for Updates

About Us
Portworx is the leader in cloud native storage for containers.

Janakiram

Janakiram MSV

Contributor | Certified Kubernetes Administrator (CKA) and Developer (CKAD)
Explore Related Content:
  • databases
  • kubernetes
  • openshift
  • red hat
  • red hat OpenShift
  • SQL Server
link
June 18, 2024 How To
SUSECON Demos - Disaster Recovery, Autopilot and More
Chris Crow
Chris Crow
link
April 29, 2024 How To
Using ArgoCD to Deploy Portworx
Chris Crow
Chris Crow
link
px_containers
April 3, 2023 How To
Run Kafka on Kubernetes with Portworx Services
Eric Shanks
Eric Shanks
