This post is part of our ongoing series on running MongoDB on Kubernetes.  We’ve published a number of articles about running MongoDB on Kubernetes for specific platforms and for specific use cases.  If you are looking for a specific Kubernetes platform, check out these related articles.

Running HA MongoDB on Red Hat OpenShift

Running HA MongoDB on Amazon Elastic Container Service for Kubernetes (EKS)

Running HA MongoDB on Azure Kubernetes Service (AKS)

Running HA MongoDB on IBM Cloud Kubernetes Service (IKS)

Running HA MongoDB with Rancher Kubernetes Engine (RKE)

Failover MongoDB 300% faster and run only 1/3 the pods

Kubernetes Persistent Volume Tutorial by Portworx

And now, onto the post…

Google Kubernetes Engine (GKE) is a managed, production-ready environment for deploying containerized applications in Google Cloud Platform. Launched in 2015, GKE is one of the first hosted container platforms which is built on the learnings from Google’s experience of running services like Gmail and YouTube in containers for over 12 years. GKE allows customers to quickly get up and running with Kubernetes by completely eliminating the need to install, manage, and operate Kubernetes clusters.

Portworx is a cloud-native storage platform to run persistent workloads deployed on a variety of orchestration engines including Kubernetes. With Portworx, customers can manage the database of their choice on any infrastructure using any container scheduler. It provides a single data management layer for all stateful services, no matter where they run.

This tutorial is a walk-through of the steps involved in deploying and managing a highly available MongoDB NoSQL database on Google Kubernetes Engine.

In summary, to run HA MongoDB on Google Cloud Platform you need to:

  1. Launch a GKE cluster
  2. Install cloud native storage solution like Portworx as a daemon set on GKE
  3. Create storage class defining your storage requirements like replication factor, snapshot policy, and performance profile
  4. Deploy MongoDB using Kubernetes
  5. Test failover by killing or cordoning node in your cluster
  6. Expand the storage volume without downtime

How to launch a GKE cluster

When launching a GKE cluster to run Portworx, you need to ensure that the cluster is based on Ubuntu. Due to certain restrictions with GKE clusters based on Container-Optimized OS (COS), Portworx requires Ubuntu as the base image for the GKE Nodes.

The following command configures a 3-node GKE Cluster in zone ap-south-1-a. You can modify the parameters accordingly.

$ gcloud container clusters create "gke-px" \
--zone "asia-south1-a" \
--username "admin" \
--cluster-version "1.8.10-gke.0" \
--machine-type "n1-standard-4" \
--image-type "UBUNTU" \
--disk-type "pd-ssd" \
--disk-size "100" \
--num-nodes "3" \
--enable-cloud-logging \
--enable-cloud-monitoring \
--network "default" \
--addons HorizontalPodAutoscaling,HttpLoadBalancing,KubernetesDashboard

Once the cluster is ready, configure kubectl CLI with the following command:

$ gcloud container clusters get-credentials gke-px --zone asia-south1-a

Portworx requires a ClusterRoleBinding for your user. Without this configuration, the command fails with an error clusterroles.rbac.authorization.k8s.io "portworx-pvc-controller-role" is forbidden.

Let’s create a ClusterRoleBinding with the following command:

$ kubectl create clusterrolebinding cluster-admin-binding \
--clusterrole cluster-admin \
--user $(gcloud config get-value account)

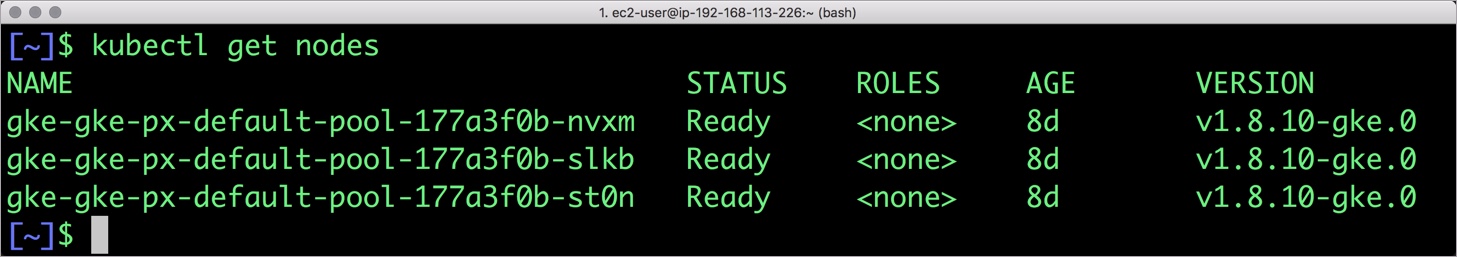

You should now have a three node Kubernetes cluster deployed in Google Cloud Platform.

$ kubectl get nodes
NAME                                    STATUS    ROLES     AGE       VERSION
gke-gke-px-default-pool-177a3f0b-nvxm   Ready     none      8d        v1.8.10-gke.0
gke-gke-px-default-pool-177a3f0b-slkb   Ready     none      8d        v1.8.10-gke.0
gke-gke-px-default-pool-177a3f0b-st0n   Ready     none      8d        v1.8.10-gke.0

px-mongo-gke-0

Installing Portworx in GKE

Installing Portworx on GKE is not very different from installing it on any other Kubernetes cluster. Portworx GKE documentation has the steps involved in running the Portworx cluster in a Kubernetes environment deployed in AWS.

Once the GKE cluster is up and running, and Portworx is installed and configured, we will deploy a highly available MongoDB database.

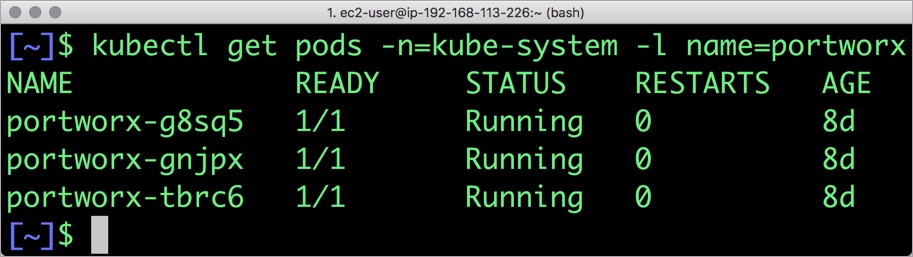

Portworx cluster needs to be up and running on GKE before proceeding to the next step. The kube-system namespace should have the Portworx pods in running state.

$ kubectl get pods -n=kube-system -l name=portworx
NAME             READY     STATUS    RESTARTS   AGE
portworx-g8sq5   1/1       Running   0          8d
portworx-gnjpx   1/1       Running   0          8d
portworx-tbrc6   1/1       Running   0          8d

px-mongo-gke-1

Creating a storage class for MongoDB

Once the GKE cluster is up and running, and Portworx is installed and configured, we will deploy a highly available MongoDB database.

Through storage class objects, an admin can define different classes of Portworx volumes that are offered in a cluster. These classes will be used during the dynamic provisioning of volumes. The storage class defines the replication factor, I/O profile (e.g., for a database or a CMS), and priority (e.g., SSD or HDD). These parameters impact the availability and throughput of workloads and can be specified for each volume. This is important because a production database will have different requirements than a development Jenkins cluster.

In this example, the storage class that we deploy has a replication factor of 3 with I/O profile set to “db,” and priority set to “high.” This means that the storage will be optimized for low latency database workloads like MongoDB and automatically placed on the highest performance storage available in the cluster. Notice that we also mention the filesystem, xfs in the storage class.

$ cat > px-mongo-sc.yaml << EOF
kind: StorageClass
apiVersion: storage.k8s.io/v1beta1
metadata:
    name: px-ha-sc
provisioner: kubernetes.io/portworx-volume
parameters:
  repl: "3"
  io_profile: "db_remote"
  priority_io: "high"
  fs: "xfs"
EOF

Create the storage class and verify its available in the default namespace.

$ kubectl create -f px-mongo-sc.yaml
storageclass.storage.k8s.io "px-ha-sc" created

$ kubectl get sc
NAME                PROVISIONER                     AGE
px-ha-sc             kubernetes.io/portworx-volume   6s
standard (default)   kubernetes.io/gce-pd            32m
stork-snapshot-sc    stork-snapshot                  20m

Creating a MongoDB PVC on Kubernetes

We can now create a Persistent Volume Claim (PVC) based on the Storage Class. Thanks to dynamic provisioning, the claims will be created without explicitly provisioning a persistent volume (PV).

$ cat > px-mongo-pvc.yaml << EOF
kind: PersistentVolumeClaim
apiVersion: v1
metadata:
   name: px-mongo-pvc
   annotations:
     volume.beta.kubernetes.io/storage-class: px-ha-sc
spec:
   accessModes:
     - ReadWriteOnce
   resources:
     requests:
       storage: 1Gi
EOF

$ kubectl create -f px-mongo-pvc.yaml
persistentvolumeclaim "px-mongo-pvc" created

$ kubectl get pvc
NAME           STATUS    VOLUME                                     CAPACITY   ACCESS MODES   STORAGE CLASS   AGE
px-mongo-pvc   Bound     pvc-abec5d2c-9292-11e8-9de8-42010aa00fdd   1Gi        RWO            px-ha-sc       50s

Deploying MongoDB on GKE

Finally, let’s create a MongoDB instance as a Kubernetes deployment object. For simplicity’s sake, we will just be deploying a single Mongo pod. Because Portworx provides synchronous replication for High Availability, a single MongoDB instance might be the best deployment option for your MongoDB database. Portworx can also provide backing volumes for multi-node MongoDB replica sets. The choice is yours.

$ cat > px-mongo-app.yaml << EOF
apiVersion: apps/v1
kind: Deployment
metadata:
  name: mongo
spec:
  strategy:
    rollingUpdate:
      maxSurge: 1
      maxUnavailable: 1
    type: RollingUpdate
  replicas: 1
  selector:
    matchLabels:
      app: mongo
  template:
    metadata:
      labels:
        app: mongo
    spec:
      schedulerName: stork
      containers:
      - name: mongo
        image: mongo
        imagePullPolicy: "Always"
        ports:
        - containerPort: 27017
        volumeMounts:
        - mountPath: /data/db
          name: mongodb
      volumes:
      - name: mongodb
        persistentVolumeClaim:
          claimName: px-mongo-pvc
EOF

$ kubectl create -f px-mongo-app.yaml
deployment.extensions "mongo" created

The MongoDB deployment defined above is explicitly associated with the PVC, px-mongo-pvc created in the previous step.

This deployment creates a single pod running MongoDB backed by Portworx.

$ kubectl get pods
NAME                     READY     STATUS    RESTARTS   AGE
mongo-94dfbcc64-2tk54   1/1       Running   0          31s

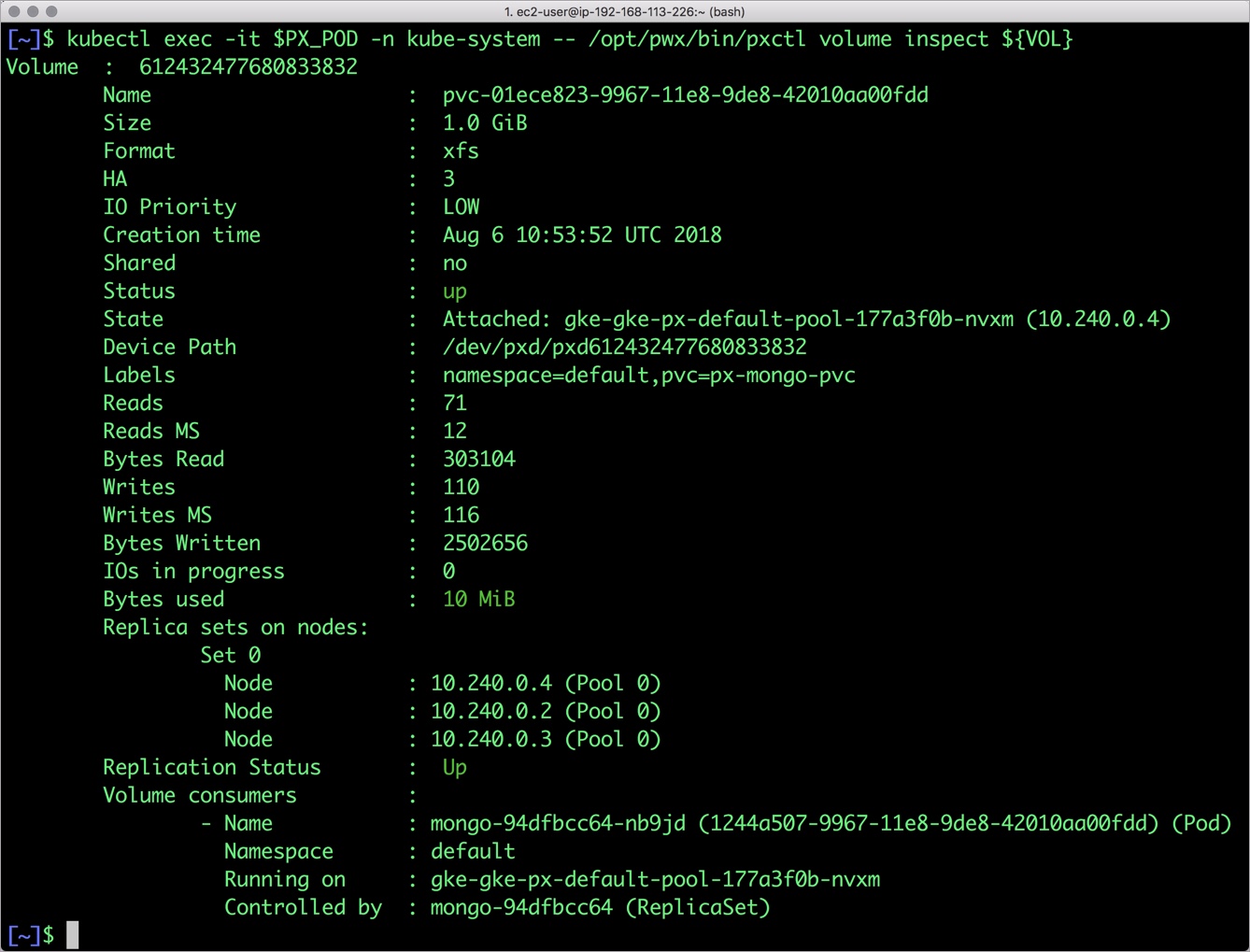

We can inspect the Portworx volume by accessing the pxctl tool running with the Mongo pod.

$ VOL=`kubectl get pvc | grep px-mongo-pvc | awk '{print $3}'`
$ PX_POD=$(kubectl get pods -l name=portworx -n kube-system -o jsonpath='{.items[0].metadata.name}')
$ kubectl exec -it $PX_POD -n kube-system -- /opt/pwx/bin/pxctl volume inspect ${VOL}
Volume	:  678280173270929749
	Name            	 :  pvc-abec5d2c-9292-11e8-9de8-42010aa00fdd
	Size            	 :  1.0 GiB
	Format          	 :  xfs
	HA              	 :  3
	IO Priority     	 :  LOW
	Creation time   	 :  Jul 28 18:18:48 UTC 2018
	Shared          	 :  no
	Status          	 :  up
	State           	 :  Attached: gke-gke-px-default-pool-177a3f0b-st0n (10.240.0.3)
	Device Path     	 :  /dev/pxd/pxd678280173270929749
	Labels          	 :  namespace=default,pvc=px-mongo-pvc
	Reads           	 :  71
	Reads MS        	 :  36
	Bytes Read      	 :  303104
	Writes          	 :  149
	Writes MS       	 :  80
	Bytes Written   	 :  2789376
	IOs in progress 	 :  0
	Bytes used      	 :  11 MiB
	Replica sets on nodes:
		Set 0
		  Node 		 : 10.240.0.4 (Pool 0)
		  Node 		 : 10.240.0.2 (Pool 0)
		  Node 		 : 10.240.0.3 (Pool 0)
	Replication Status	 :  Up
	Volume consumers	 :
		- Name           : mongo-94dfbcc64-2tk54 (ea944501-9292-11e8-9de8-42010aa00fdd) (Pod)
		  Namespace      : default
		  Running on     : gke-gke-px-default-pool-177a3f0b-st0n
		  Controlled by  : mongo-94dfbcc64 (ReplicaSet)

px-mongo-gke-2

The output from the above command confirms the creation of volumes that are backing MongoDB database instance.

Failing over MongoDB pod on Kubernetes

Populating sample data

Let’s populate the database with some sample data.

We will first find the pod that’s running MongoDB to access the shell.

$ POD=`kubectl get pods -l app=mongo | grep Running | grep 1/1 | awk '{print $1}'`

$ kubectl exec -it $POD mongo
MongoDB shell version v4.0.0
connecting to: mongodb://127.0.0.1:27017
MongoDB server version: 4.0.0
Welcome to the MongoDB shell.
…..

Now that we are inside the shell, we can populate a collection.

db.ships.insert({name:'USS Enterprise-D',operator:'Starfleet',type:'Explorer',class:'Galaxy',crew:750,codes:[10,11,12]})
db.ships.insert({name:'USS Prometheus',operator:'Starfleet',class:'Prometheus',crew:4,codes:[1,14,17]})
db.ships.insert({name:'USS Defiant',operator:'Starfleet',class:'Defiant',crew:50,codes:[10,17,19]})
db.ships.insert({name:'IKS Buruk',operator:' Klingon Empire',class:'Warship',crew:40,codes:[100,110,120]})
db.ships.insert({name:'IKS Somraw',operator:' Klingon Empire',class:'Raptor',crew:50,codes:[101,111,120]})
db.ships.insert({name:'Scimitar',operator:'Romulan Star Empire',type:'Warbird',class:'Warbird',crew:25,codes:[201,211,220]})
db.ships.insert({name:'Narada',operator:'Romulan Star Empire',type:'Warbird',class:'Warbird',crew:65,codes:[251,251,220]})

Let’s run a few queries on the Mongo collection.

Find one arbitrary document:

db.ships.findOne()
{
	"_id" : ObjectId("5b5c16221108c314d4c000cd"),
	"name" : "USS Enterprise-D",
	"operator" : "Starfleet",
	"type" : "Explorer",
	"class" : "Galaxy",
	"crew" : 750,
	"codes" : [
		10,
		11,
		12
	]
}

Find all documents and using nice formatting:

db.ships.find().pretty()
…..
{
	"_id" : ObjectId("5b5c16221108c314d4c000d1"),
	"name" : "IKS Somraw",
	"operator" : " Klingon Empire",
	"class" : "Raptor",
	"crew" : 50,
	"codes" : [
		101,
		111,
		120
	]
}
{
	"_id" : ObjectId("5b5c16221108c314d4c000d2"),
	"name" : "Scimitar",
	"operator" : "Romulan Star Empire",
	"type" : "Warbird",
	"class" : "Warbird",
	"crew" : 25,
	"codes" : [
		201,
		211,
		220
	]
}
…..

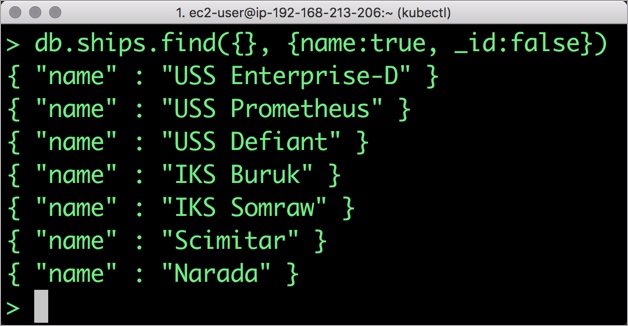

Shows only the names of the ships:

db.ships.find({}, {name:true, _id:false})
{ "name" : "USS Enterprise-D" }
{ "name" : "USS Prometheus" }
{ "name" : "USS Defiant" }
{ "name" : "IKS Buruk" }
{ "name" : "IKS Somraw" }
{ "name" : "Scimitar" }
{ "name" : "Narada" }

px-mongo-gke-3

Finds one document by attribute:

db.ships.findOne({'name':'USS Defiant'})
{
	"_id" : ObjectId("5b5c16221108c314d4c000cf"),
	"name" : "USS Defiant",
	"operator" : "Starfleet",
	"class" : "Defiant",
	"crew" : 50,
	"codes" : [
		10,
		17,
		19
	]
}

Exit from the client shell to return to the host.

Simulating node failure

Now, let’s simulate the node failure by cordoning off the node on which MongoDB is running.

$ NODE=`kubectl get pods -l app=mongo -o wide | grep -v NAME | awk '{print $7}'`

$ kubectl cordon ${NODE}
node "gke-gke-px-default-pool-177a3f0b-st0n" cordoned

The above command disabled scheduling on one of the nodes.

$ kubectl get nodes
NAME                                            STATUS                     ROLES     AGE       VERSION
gke-gke-px-default-pool-177a3f0b-nvxm   Ready                          40m       v1.8.10-gke.0
gke-gke-px-default-pool-177a3f0b-slkb   Ready                          40m       v1.8.10-gke.0
gke-gke-px-default-pool-177a3f0b-st0n   Ready,SchedulingDisabled       40m       v1.8.10-gke.0

Now, let’s go ahead and delete the MongoDB pod.

$ POD=`kubectl get pods -l app=mongo -o wide | grep -v NAME | awk '{print $1}'`
$ kubectl delete pod ${POD}
pod "mongo-94dfbcc64-2tk54" deleted

As soon as the pod is deleted, it is relocated to the node with the replicated data. STorage ORchestrator for Kubernetes (STORK), Portworx’s custom storage scheduler allows co-locating the pod on the exact node where the data is stored. It ensures that an appropriate node is selected for scheduling the pod.

Let’s verify this by running the below command. We will notice that a new pod has been created and scheduled in a different node.

$ kubectl get pods -l app=mongo -o wide
NAME                     READY     STATUS    RESTARTS   AGE       IP               NODE
mongo-94dfbcc64-whwsr   1/1       Running   0          19s       10.48.2.8   gke-gke-px-default-pool-177a3f0b-nvxm

Let’s uncordon the node to bring it back to action.

$ kubectl uncordon ${NODE}
node "gke-gke-px-default-pool-177a3f0b-st0n" uncordoned

Finally, let’s verify that the data is still available.

Verifying that the data is intact

Let’s find the pod name and run the ‘exec’ command, and then access the Mongo shell.

$ POD=`kubectl get pods -l app=mongo | grep Running | grep 1/1 | awk '{print $1}'`
$ kubectl exec -it $POD mongo
MongoDB shell version v4.0.0
connecting to: mongodb://127.0.0.1:27017
MongoDB server version: 4.0.0
Welcome to the MongoDB shell.
…..

We will query the collection to verify that the data is intact.

Find one arbitrary document:

db.ships.findOne()
{
	"_id" : ObjectId("5b5c16221108c314d4c000cd"),
	"name" : "USS Enterprise-D",
	"operator" : "Starfleet",
	"type" : "Explorer",
	"class" : "Galaxy",
	"crew" : 750,
	"codes" : [
		10,
		11,
		12
	]
}

Find all documents and using nice formatting:

db.ships.find().pretty()
…..
{
	"_id" : ObjectId("5b5c16221108c314d4c000d1"),
	"name" : "IKS Somraw",
	"operator" : " Klingon Empire",
	"class" : "Raptor",
	"crew" : 50,
	"codes" : [
		101,
		111,
		120
	]
}
{
	"_id" : ObjectId("5b5c16221108c314d4c000d2"),
	"name" : "Scimitar",
	"operator" : "Romulan Star Empire",
	"type" : "Warbird",
	"class" : "Warbird",
	"crew" : 25,
	"codes" : [
		201,
		211,
		220
	]
}
…..

Shows only the names of the ships:

db.ships.find({}, {name:true, _id:false})
{ "name" : "USS Enterprise-D" }
{ "name" : "USS Prometheus" }
{ "name" : "USS Defiant" }
{ "name" : "IKS Buruk" }
{ "name" : "IKS Somraw" }
{ "name" : "Scimitar" }
{ "name" : "Narada" }

Finds one document by attribute:

db.ships.findOne({'name':Narada'})
{
	"_id" : ObjectId("5b5c16221108c314d4c000d3"),
	"name" : "Narada",
	"operator" : "Romulan Star Empire",
	"type" : "Warbird",
	"class" : "Warbird",
	"crew" : 65,
	"codes" : [
		251,
		251,
		220
	]
}

Observe that the MongoDB collection is still there and all the content is intact! Exit from the client shell to return to the host.

Performing Storage Operations on MongoDB

After testing end-to-end failover of the database, let’s perform StorageOps on our GKE cluster.

Expanding the Kubernetes Volume with no downtime

Currently the Portworx volume that we created at the beginning is of 1Gib size. We will now expand it to double the storage capacity.

First, let’s get the volume name and inspect it through the pxctl tool.

If you have access, SSH into one of the nodes and run the following command.

$ gcloud compute ssh gke-gke-px-default-pool-177a3f0b-nvxm --zone asia-south1-a

$ POD=`/opt/pwx/bin/pxctl volume list --label pvc=px-mongo-pvc | grep -v ID | awk '{print $1}'`
$ /opt/pwx/bin/pxctl v i $POD
Volume	:  678280173270929749
	Name            	 :  pvc-abec5d2c-9292-11e8-9de8-42010aa00fdd
	Size            	 :  1.0 GiB
	Format          	 :  xfs
	HA              	 :  3
	IO Priority     	 :  LOW
	Creation time   	 :  Jul 28 18:18:48 UTC 2018
	Shared          	 :  no
	Status          	 :  up
	State           	 :  Attached: gke-gke-px-default-pool-177a3f0b-nvxm (10.240.0.4)
	Device Path     	 :  /dev/pxd/pxd678280173270929749
	Labels          	 :  namespace=default,pvc=px-mongo-pvc
	Reads           	 :  118
	Reads MS        	 :  44
	Bytes Read      	 :  1314816
	Writes          	 :  441
	Writes MS       	 :  3320
	Bytes Written   	 :  317435904
	IOs in progress 	 :  0
	Bytes used      	 :  11 MiB
	Replica sets on nodes:
		Set 0
		  Node 		 : 10.240.0.4 (Pool 0)
		  Node 		 : 10.240.0.2 (Pool 0)
		  Node 		 : 10.240.0.3 (Pool 0)
	Replication Status	 :  Up
	Volume consumers	 :
		- Name           : mongo-94dfbcc64-whwsr (b0764ff6-9293-11e8-9de8-42010aa00fdd) (Pod)
		  Namespace      : default
		  Running on     : gke-gke-px-default-pool-177a3f0b-nvxm
		  Controlled by  : mongo-94dfbcc64 (ReplicaSet)

Notice the current Portworx volume. It is 1GiB. Let’s expand it to 2GiB.

$ /opt/pwx/bin/pxctl volume update $POD --size=2
Update Volume: Volume update successful for volume 678280173270929749

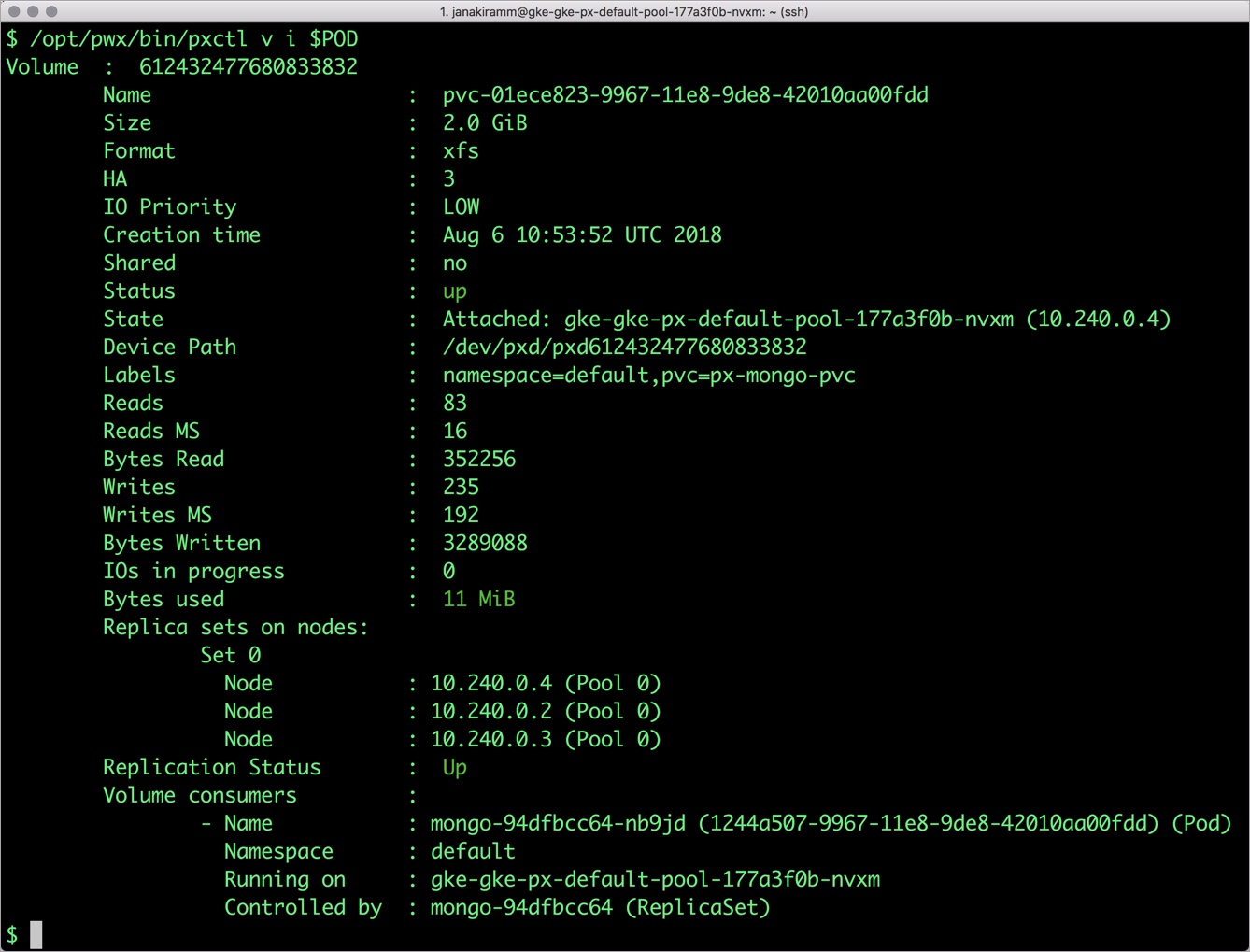

Check the new volume size. It is expanded to 2GiB.

$ /opt/pwx/bin/pxctl v i $POD
Volume	:  678280173270929749
	Name            	 :  pvc-abec5d2c-9292-11e8-9de8-42010aa00fdd
	Size            	 :  2.0 GiB
	Format          	 :  xfs
	HA              	 :  3
	IO Priority     	 :  LOW
	Creation time   	 :  Jul 28 18:18:48 UTC 2018
	Shared          	 :  no
	Status          	 :  up
	State           	 :  Attached: gke-gke-px-default-pool-177a3f0b-nvxm (10.240.0.4)
	Device Path     	 :  /dev/pxd/pxd678280173270929749
	Labels          	 :  pvc=px-mongo-pvc,namespace=default
	Reads           	 :  131
	Reads MS        	 :  52
	Bytes Read      	 :  1368064
	Writes          	 :  497
	Writes MS       	 :  3348
	Bytes Written   	 :  317718528
	IOs in progress 	 :  0
	Bytes used      	 :  11 MiB
	Replica sets on nodes:
		Set 0
		  Node 		 : 10.240.0.4 (Pool 0)
		  Node 		 : 10.240.0.2 (Pool 0)
		  Node 		 : 10.240.0.3 (Pool 0)
	Replication Status	 :  Up
	Volume consumers	 :
		- Name           : mongo-94dfbcc64-whwsr (b0764ff6-9293-11e8-9de8-42010aa00fdd) (Pod)
		  Namespace      : default
		  Running on     : gke-gke-px-default-pool-177a3f0b-nvxm
		  Controlled by  : mongo-94dfbcc64 (ReplicaSet)

px-mongo-gke-4

Taking Snapshots of a Kubernetes volume and restoring the database

Portworx supports creating snapshots for Kubernetes PVCs.

Let’s create a snapshot for the PVC we created for MongoDB.

cat > px-mongo-snap.yaml << EOF
apiVersion: volumesnapshot.external-storage.k8s.io/v1
kind: VolumeSnapshot
metadata:
  name: px-mongo-snapshot
  namespace: default
spec:
  persistentVolumeClaimName: px-mongo-pvc
EOF

$ kubectl create -f px-mongo-snap.yaml
volumesnapshot.volumesnapshot.external-storage.k8s.io "px-mongo-snapshot" created

Verify the creation of volume snapshot.

$ kubectl get volumesnapshot
NAME                AGE
px-mongo-snapshot   1m

$ kubectl get volumesnapshotdatas
NAME                                                       AGE
k8s-volume-snapshot-a83796ea-9295-11e8-89ef-0a580a30010a   13s

With the snapshot in place, let’s go ahead and delete the database.

$ POD=`kubectl get pods -l app=mongo | grep Running | grep 1/1 | awk '{print $1}'`
$ kubectl exec -it $POD mongo

db.ships.drop()

Since snapshots are just like volumes, we can use it to start a new instance of MongoDB. Let’s create a new instance of MongoDB by restoring the snapshot data.

$ cat > px-mongo-snap-pvc << EOF
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: px-mongo-snap-clone
  annotations:
    snapshot.alpha.kubernetes.io/snapshot: px-mongo-snapshot
spec:
  accessModes:
     - ReadWriteOnce
  storageClassName: stork-snapshot-sc
  resources:
    requests:
      storage: 2Gi
EOF

$ kubectl create -f px-mongo-snap-pvc.yaml
persistentvolumeclaim "px-mongo-snap-clone" created

From the new PVC, we will create a MongoDB pod.

cat < px-mongo-snap-restore.yaml >> EOF
apiVersion: apps/v1
kind: Deployment
metadata:
  name: mongo-snap
spec:
  strategy:
    rollingUpdate:
      maxSurge: 1
      maxUnavailable: 1
    type: RollingUpdate
  replicas: 1
  selector:
    matchLabels:
      app: mongo-snap
  replicas: 1
  template:
    metadata:
      labels:
        app: mongo-snap
    spec:
      affinity:
        nodeAffinity:
          requiredDuringSchedulingIgnoredDuringExecution:
            nodeSelectorTerms:
            - matchExpressions:
              - key: px/running
                operator: NotIn
                values:
                - "false"
              - key: px/enabled
                operator: NotIn
                values:
                - "false"
    spec:
      containers:
      - name: mongo
        image: mongo
        imagePullPolicy: "Always"
        ports:
        - containerPort: 27017
        volumeMounts:
        - mountPath: /data/db
          name: mongodb
      volumes:
      - name: mongodb
        persistentVolumeClaim:
          claimName: px-mongo-snap-clone
EOF

$ kubectl create -f px-mongo-snap-restore.yaml
deployment.extensions "mongo-snap" created

Verify that the new pod is in running state.

$ kubectl get pods -l app=mongo-snap
NAME                         READY     STATUS    RESTARTS   AGE
mongo-snap-6b885ddb9b-tf7zc   1/1       Running   0          5m

Finally, let’s access the sample data created earlier in the walkthrough.

$ POD=`kubectl get pods -l app=mongo-snap | grep Running | grep 1/1 | awk '{print $1}'`
$ kubectl exec -it $POD mongo
MongoDB shell version v4.0.0
connecting to: mongodb://127.0.0.1:27017
MongoDB server version: 4.0.0
Welcome to the MongoDB shell.
…..
sdb.ships.find({}, {name:true, _id:false})
{ "name" : "USS Enterprise-D" }
{ "name" : "USS Prometheus" }
{ "name" : "USS Defiant" }
{ "name" : "IKS Buruk" }
{ "name" : "IKS Somraw" }
{ "name" : "Scimitar" }
{ "name" : "Narada" }

Notice that the collection is still there with the data intact. We can also push the snapshot to Amazon S3 if we want to create a Disaster Recovery backup in another Amazon region. Portworx snapshots also work with any S3 compatible object storage, so the backup can go to a different cloud or even an on-premises data center.

Summary

Portworx can easily be deployed on Google Kubernetes Engine to run stateful workloads in production. Through the integration of STORK, DevOps and StorageOps teams can seamlessly run highly-available database clusters in Google Kubernetes Engine. They can perform traditional operations such as volume expansion, snapshots, backup and recovery for the cloud-native applications.

Share
Subscribe for Updates

About Us
Portworx is the leader in cloud native storage for containers.

gP_biIhl

Janakiram MSV

Contributor | Certified Kubernetes Administrator (CKA) and Developer (CKAD)
Explore Related Content:
  • databases
  • gke
  • kubernetes
  • mongodb
link
Graphic-35
March 19, 2019 How To
HA MongoDB on IBM Cloud Kubernetes Service
Janakiram MSV
Janakiram MSV
link
Graphic-122
July 12, 2018 How To
How to Run HA PostgreSQL on GKE
Janakiram MSV
Janakiram MSV
link
Graphic-102
July 30, 2018 How To
How to Run HA MongoDB on Amazon EKS
Janakiram MSV
Janakiram MSV
