How to run multi-tenant WordPress platform on IBM Cloud Kubernetes Service
This post is part of our ongoing series on running WordPress on Kubernetes. We’ve published a number of articles about running WordPress on Kubernetes for specific platforms and for specific use cases. If you are looking for a specific Kubernetes platform, check out these related articles.
Running HA WordPress on Amazon Elastic Container Service for Kubernetes (EKS)
Running HA WordPress on Azure Kubernetes Service (AKS)
Running HA WordPress on Google Kubernetes Engine (GKE)
Running HA WordPress on Red Hat OpenShift
Running HA WordPress with Rancher Kubernetes Engine (RKE)
Running HA WordPress on IBM Cloud Private
And now, onto the post…
In the world of Kubernetes demos, WordPress is one of the canonical examples, but usually, the complexities of WordPress itself is just an afterthought. WordPress is just the container that we deploy to demonstrate some other capability, not a multifaceted application that needs to be deployed, scaled, backup up, and managed. For all the countless examples, rarely do they talk about what it means to run a multi-tenant WordPress environment from the perspective of a service provider selling WordPress sites for profit. The reason? Running a multi-tenant WordPress environment on Kubernetes is actually quite hard and these examples are designed to show simple things. So the complexity is swept under the rug.
Today we discuss some of the hard problems you need to solve in order to run a multi-tenant WordPress deployment as a service provider. Portworx has a lot of experience helping hosting companies and other service providers run lots of WordPress sites for paying customers. This blog is a summary of that work.
In these multi-tenant WordPress deployments, there are a few important capabilities that customers must achieve.
- It is important to host as many independent, isolated WordPress sites on the same host in order to maximize resource utilization and keep costs low. This means that often we need to have 100s of sites on a single server.
- If a WordPress site is consuming too many resources and harming the performance of other sites (i.e. the noisy neighbor problem), it must be easy to relocate that site to another host (or to move less resource intensive sites away leaving fewer sites on the host).
- It must be possible to independently backup a single WordPress site even if it is running on a host with dozens or hundreds of other sites.
- It must be possible to limit resource consumption at the site level and upsell additional resources to the end-customer. For example, if they need more storage, we should be able to “turn on” that feature easily.
Why Portworx is perfect for large scale multi-tenant WordPress deployments
Portworx wasn’t designed with only WordPress in mind, but you might think that it was. First, Portworx supports persistent storage and data management for two critical WordPress components:
- A highly available single-writer MySQL database that typically scales vertically
- Fast “multi-writer” or “shared” volumes for file uploads needed as the WordPress PHP container is scaled horizontally.
Without a solution for both MySQL and NFS-like file storage, a persistent storage solution for Kubernetes cannot claim to be able to handle WordPress workloads. But just persistent storage isn’t enough either.
As a service provider running WordPress sites, it is all about density, density, density
WordPress is said to run 28% of all websites on the Internet. That is a phenomenal installed base of some 75 million sites. While some of these are massive sites like TechCrunch or The New Yorker, the vast majority of WordPress sites are much smaller. That means as a WordPress hoster, your business probably follows the 80-20 rule. 80% of your revenue comes from 20% of your sites. Or said another way, 80% of your sites only account for 20% of your traffic.
That means that you need to think about your business in two ways:
- You need to provide a reliable service to a large number of low-traffic sites while minimizing infrastructure costs since your margins come in large part by placing more sites on the same physical infrastructure.
- You need to provide a white-glove, highly performant and reliable experience to a small number of sites that make up the bulk of your revenue.
At the same time, you need a migration path for some sites to move from low-volume to high-volume plan, without disrupting the customer or your own internal operations teams.
Let’s look at how Portworx solves these requirements in turn.
How to achieve 100s of WordPress sites per host
As we have seen, each WordPress site requires 2 persistent volumes. One for MySQL, one for shared storage. A Linux host, however, is limited to 40 volumes maximum when using a solution like Amazon EBS or a traditional SAN. That means that unless you use the same volume for multiple sites, you are limited to 20 sites per host, no matter how large the host is. This is often the choice that WordPress hosters make, but what they gain in density, they lose in isolation. Since multiple sites share the same volumes, you cannot backup and restore only a single site as easily.
With Portworx however, a single block device provided by Amazon, Google, Azure, your existing SAN or even the bare metal server can be divided up in hundreds of virtual volumes, allowing hundreds of sites to run on the same host. Here is how one Portworx customer, Aurea, was able to leverage Portworx for running hundreds of apps on the same host:
“Our clusters are highly dense, meaning we run a lot of containers per host. On AWS, we use huge instances. The recommendation from Kubernetes is 100 pods per VM. Already, we’re running 200-300 pods per host. Also, since most of the apps that we run are stateful, we can easily have 200-300 volumes per host as well. And we’re working to push these limits even further. Because of these densities enabled by Kubernetes and Portworx, we’re easily saving 60-90% on our compute costs. Portworx itself was between 30-50% cheaper than any other storage solution we tested.”
Dealing with the noisy neighbor problem
We’ve just seen how Portworx can help service providers increase the density of their WordPress deployments while simplifying operations. Now let’s look at how hosters can solve one of the biggest problems in multi-tenant environments: noisy neighbors.
If you categorically knew which 20% of your customers would account for 80% of your traffic at all times, solving the noisy neighbor problem would be a one-time migration. But, because traffic patterns change over time, this is a hard problem to solve. Portworx does a few critical things to help.
First, in addition to using Kubernetes to limit pod resources like Memory and CPU, you can use Portworx to automatically place different workloads on different storage hardware for different classes of service. For instance, you might sell your customers a premium “performance” plan if they are expecting heavy usage and they are performance sensitive. Alternatively, cost-conscious customers might opt for a “budget” plan that offers reliability but doesn’t guarantee blazing fast performance. On the backend, these plans can be mapped to Portworx “storage classes” that automatically place high-end plans on SSDs and low-end plans on HHDs.
Additionally, since you don’t always know when one a customer site will suddenly experience a spike in traffic draining resources from neighbor sites, Portworx enables you to move applications between environments using PX-Motion. With PX-Motion you can move a single pod or group of pods to a different Kubernetes environment with a single command.
Often a hosting customer will call their service provider the day before they are going to be on a national TV and say “I really need my site to work tomorrow.” This often leads to a lot of scrambling around and manual tuning, but with PX-Motion, moving the customer to an environment with more resources is as easy as kubectl apply -f wp-migration.yaml.
The above described moving one heavy load site off a multi-tenant cluster. This is often the best option if you have some advance warning before a large traffic spike. However, in the middle of a large traffic event, it is often better to move low traffic sites away from the heavy traffic site, instead of vice versa. This is also possible with PX-Motion.
“Oops, I deleted all my blogs. Can you help?”
Every WordPress hoster has heard this before. Accidents happen and when they do, your customer calls you, desperate. The problem for large multi-tenant environments is that true site-based isolation is difficult, especially if you have gotten past the 20-sites per host limit described above by pooling storage for multiple sites into the same volume.
With Portworx, these limitations don’t apply. Each WordPress site gets its own MySQL and shared volumes, which can be fully and independently controlled, managed, snapshotted, backed up and migrated. For example, you can easily set up a backup policy that snapshots a single WordPress environment (MySQL and files) every hour and back it up to an object store. Then, if you get that frantic phone call from a customer, you can easily restore just their site, without affecting anyone else. Importantly, using Portworx 3DSnap, these snapshots of MySQL and WordPress files are application consistent, not just crash consistent, ensuring easy recover from backup.
Let’s see that is action
Now that we’ve looked at a high level at how Portworx helps service providers run large scale multi-tenant WordPress environment, let’s go a step deeper and look at how it works on Kubernetes. This post looks at how to run an HA WordPress on IBM Cloud Kubernetes Service, a managed Kubernetes offering from IBM, which makes it easy to create, configure, and manage a cluster of virtual machines that are preconfigured to run containerized applications.
In summary, to run HA WordPress on IBM Cloud Kubernetes Service you need to:
- Launch an IKS cluster
- Install a cloud native storage solution like Portworx as a DaemonSet on IKS
- Create a storage class defining your storage requirements like replication factor, snapshotpolicy, and performance profile
- Deploy MySQL using Kubernetes
- Deploy and scale WordPress using Kubernetes
Launching an IKS Cluster
For running stateful workloads in a production environment backed by Portworx, it is highly recommended to launch an IKS cluster based on bare metal servers and software-defined storage. The minimum requirements of a worker node to successfully run Portworx include:
- 4 CPU cores
- 4GB memory
- 128GB of raw unformatted storage
- 10Gbps network speed
For details on launching a Kubernetes cluster with bare metal worker nodes, please refer to the documentation of IBM Cloud Kubernetes Service.

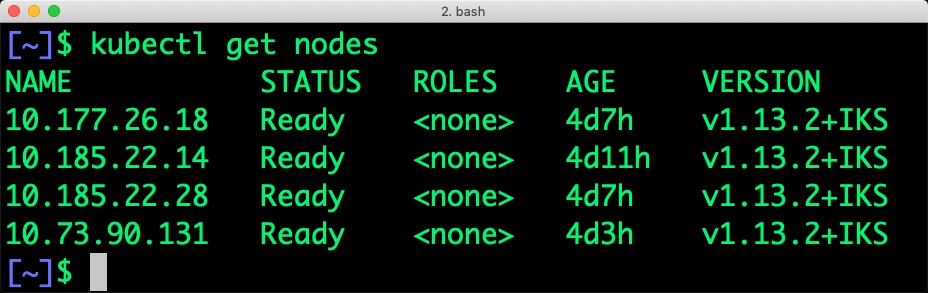

We are using an IKS cluster with 4 nodes out of which 3 nodes are running bare metal servers with SDS based on the instance type ms2c.4x32.1.9tb.ssd.encrypted. Only these machines that meet the prerequisite would be used by Portworx.
When we filter the nodes based on the label, we see the below nodes:
$ kubectl get nodes -l beta.kubernetes.io/instance-type=ms2c.4x32.1.9tb.ssd.encrypted NAME STATUS ROLES AGE VERSION 10.177.26.18 Ready <none> 4d7h v1.13.2+IKS 10.185.22.28 Ready <none> 4d7h v1.13.2+IKS 10.73.90.131 Ready <none> 4d3h v1.13.2+IKS
To exclude nodes that don’t meet Portworx prerequisites, you can apply a label to skip the installation of Portworx. For example, the below command applies a label on the node with name 10.185.22.14 which doesn’t run on a barem
etal server.
$ kubectl label nodes 10.185.22.14 px/enabled=false --overwrite
Installing Portworx in IKS
Installing Portworx on IKS is not very different from installing it on any other Kubernetes cluster. It is recommended that you create an etcd instance through Compose for etcd. You can use the Helm Chart to install Portworx cluster in IKS. Portworx documentation for IKS has the prerequisites and instructions to install and configure Portworx, STORK, and other components.

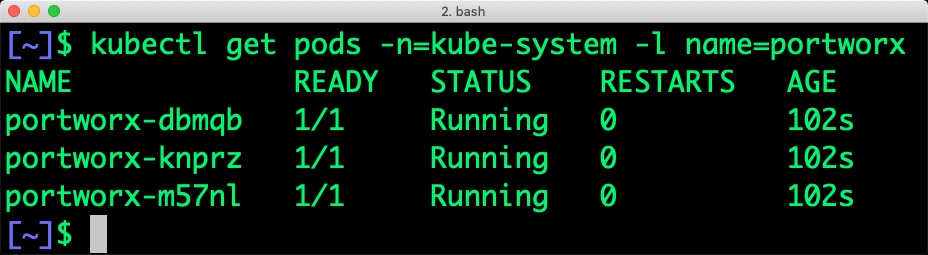

At the end of the installation, we will have Portworx DaemonSet running on the nodes excluding those that are filtered out in the previous step.
Once the IKS cluster is up and running, and Portworx is installed and configured, we will deploy a highly available WordPress deployment.
Creating a Kubernetes storage class for MySQL
Once the IKS cluster is up and running, and Portworx is installed and configured, we will deploy a highly available MySQL database.
Through Kubernetes storage class objects, an admin can define different classes of Portworx volumes that are offered in a cluster. These classes will be used during the dynamic provisioning of volumes. The Storage Class defines the replication factor, I/O profile (e.g., for a database or a CMS), and priority (e.g., SSD or HDD). These parameters impact the availability and throughput of workloads and can be specified for each volume. This is important because a production database will have different requirements than a development Jenkins cluster.
In this example, the storage class that we deploy has a replication factor of 3 with I/O profile set to “db_remote” and priority set to “high.” This means that the storage will be optimized for low latency database workloads like MySQL and automatically placed on the highest performance storage available in the cluster.
$ cat > px-mysql-sc.yaml << EOF
kind: StorageClass
apiVersion: storage.k8s.io/v1beta1
metadata:
name: px-ha-sc
provisioner: kubernetes.io/portworx-volume
parameters:
repl: "3"
io_profile: "db_remote"
priority_io: "high"
EOF
$ kubectl create -f px-mysql-sc.yaml storageclass.storage.k8s.io/px-ha-sc created $ kubectl get sc NAME PROVISIONER AGE default ibm.io/ibmc-file 8d ibmc-file-bronze (default) ibm.io/ibmc-file 8d ibmc-file-custom ibm.io/ibmc-file 8d ibmc-file-gold ibm.io/ibmc-file 8d ibmc-file-retain-bronze ibm.io/ibmc-file 8d ibmc-file-retain-custom ibm.io/ibmc-file 8d ibmc-file-retain-gold ibm.io/ibmc-file 8d ibmc-file-retain-silver ibm.io/ibmc-file 8d ibmc-file-silver ibm.io/ibmc-file 8d portworx-db-sc kubernetes.io/portworx-volume 12h portworx-db2-sc kubernetes.io/portworx-volume 12h portworx-null-sc kubernetes.io/portworx-volume 12h portworx-shared-sc kubernetes.io/portworx-volume 12h px-ha-sc kubernetes.io/portworx-volume 22s px-repl3-sc kubernetes.io/portworx-volume 34h stork-snapshot-sc stork-snapshot 12h
Creating a MySQL PVC on Kubernetes
We can now create a Persistent Volume Claim (PVC) based on the Storage Class. Thanks to dynamic provisioning, the claims will be created without explicitly provisioning Persistent Volume (PV).
$ cat > px-mysql-pvc.yaml << EOF
kind: PersistentVolumeClaim
apiVersion: v1
metadata:
name: px-mysql-pvc
annotations:
volume.beta.kubernetes.io/storage-class: px-ha-sc
spec:
accessModes:
- ReadWriteOnce
resources:
requests:
storage: 1Gi
EOF
$ kubectl create -f px-mysql-pvc.yaml
persistentvolumeclaim/px-mysql-pvc created
$ kubectl get pvc
NAME STATUS VOLUME CAPACITY ACCESS MODES STORAGECLASS AGE
px-mysql-pvc Bound pvc-d9f6f16a-31ad-11e9-aa17-32e4785d9ba0 1Gi RWO px-ha-sc 12s
Deploying MySQL on IKS
Finally, let’s create a MySQL instance as a Kubernetes deployment object. For simplicity’s sake, we will just be deploying a single MySQL pod. This is often sufficient for multi-tenant WordPress environments because each site is small and because Portworx provides synchronous replication for High Availability, a single MySQL instance might be the best deployment option for your MySQL database. Portworx can also provide backing volumes for multi-node MySQL clusters for your larger customers. The choice is yours.
$ cat > px-mysql-app.yaml << EOF
apiVersion: apps/v1
kind: Deployment
metadata:
name: mysql
spec:
strategy:
rollingUpdate:
maxSurge: 1
maxUnavailable: 1
type: RollingUpdate
replicas: 1
selector:
matchLabels:
app: mysql
template:
metadata:
labels:
app: mysql
spec:
schedulerName: stork
containers:
- name: mysql
image: mysql:5.6
imagePullPolicy: "Always"
env:
- name: MYSQL_ROOT_PASSWORD
value: password
ports:
- containerPort: 3306
volumeMounts:
- mountPath: /var/lib/mysql
name: mysql-data
volumes:
- name: mysql-data
persistentVolumeClaim:
claimName: px-mysql-pvc
EOF
$ kubectl create -f px-mysql-app.yaml deployment.extensions/mysql created
The MySQL deployment defined above is explicitly associated with the PVC, px-mysql-pvc created in the previous step.
This deployment creates a single pod running MySQL backed by Portworx.
$ kubectl get pods NAME READY STATUS RESTARTS AGE mysql-76d5c4b78b-gxdgg 1/1 Running 0 11s
We can inspect the Portworx volume by accessing the pxctl tool running with the MySQL pod.
$ VOL=`kubectl get pvc | grep px-mysql-pvc | awk '{print $3}'`
$ PX_POD=$(kubectl get pods -l name=portworx -n kube-system -o jsonpath='{.items[0].metadata.name}')
$ kubectl exec -it $PX_POD -n kube-system -- /opt/pwx/bin/pxctl volume inspect ${VOL}
Volume : 638948079473089829
Name : pvc-d9f6f16a-31ad-11e9-aa17-32e4785d9ba0
Size : 1.0 GiB
Format : ext4
HA : 3
IO Priority : LOW
Creation time : Feb 16 05:43:57 UTC 2019
Shared : no
Status : up
State : Attached: d7f53ebb-0d02-4ba4-b689-2f335e8f9379 (10.177.26.18)
Device Path : /dev/pxd/pxd638948079473089829
Labels : namespace=default,pvc=px-mysql-pvc
Reads : 12
Reads MS : 32
Bytes Read : 49152
Writes : 638
Writes MS : 8692
Bytes Written : 152567808
IOs in progress : 0
Bytes used : 16 MiB
Replica sets on nodes:
Set 0
Node : 10.73.90.131 (Pool 0)
Node : 10.177.26.18 (Pool 0)
Node : 10.185.22.29 (Pool 0)
Replication Status : Up
Volume consumers :
- Name : mysql-76d5c4b78b-gxdgg (edbc7e2d-31ad-11e9-930d-4e511e6b17c9) (Pod)
Namespace : default
Running on : 10.177.26.18
Controlled by : mysql-76d5c4b78b (ReplicaSet)
The output from the above command confirms the creation of volumes that are backing MySQL database instance.
Exposing MySQL as a Headless Service
To enable WordPress deployment to talk to the MySQL deployment, we need to expose it as a Kubernetes service. Since it is an internal service accessed by name, we will create a headless service that doesn’t assign an IP address. Refer to Kubernetes documentation for more details on the headless service.
The YAML file below has the definition of MySQL headless service.
$ cat > px-mysql-svc.yaml << EOF
apiVersion: v1
kind: Service
metadata:
name: mysql
labels:
app: mysql
spec:
ports:
- port: 3306
name: mysql
clusterIP: None
selector:
app: mysql
EOF
$ kubectl create -f px-mysql-svc.yaml service/mysql created
Verify the creation of the service by describing it. Note that the ClusterIP doesn’t have an IP address assigned. The service points to a single MySQL pod that was created earlier.
$ kubectl describe svc mysql Name: mysql Namespace: default Labels: app=mysql Annotations: Selector: app=mysql Type: ClusterIP IP: None Port: mysql 3306/TCP TargetPort: 3306/TCP Endpoints: 172.30.59.92:3306 Session Affinity: None Events:
Create a shared storage class for WordPress
Unlike other workloads, the pods running WordPress share the storage backend. This enables different instances of WordPress deployed as pods access the same filesystem.
Portworx has a concept of shared volumes in which multiple pods can share a common storage volume. A shared volume is declared as a part of the storageclass.
Additionally, we will specify an io_profile of “cms.”. This is useful for content management systems like WordPress and speeds up site performance by implementing an attribute cache.
Let’s define a seperate storage class for WordPress with a shared volume.
$ cat > px-shared-sc.yaml << EOF
kind: StorageClass
apiVersion: storage.k8s.io/v1beta1
metadata:
name: px-shared-sc
provisioner: kubernetes.io/portworx-volume
parameters:
repl: "3"
shared: "true"
io_profile: "cms"
EOF
$ kubectl create -f px-shared-sc.yaml
storageclass.storage.k8s.io/px-shared-sc created
Creating a Shared PVC for WordPress
We will now create a shared Persistent Volume Claim (PVC) based on the Storage Class that we defined earlier for WordPress. This PVC will be used by all the WordPress pods to store the shared content such as HTML, CSS, JPG etc.
$ cat > px-wp-pvc.yaml << EOF
kind: PersistentVolumeClaim
apiVersion: v1
metadata:
name: px-wp-pvc
annotations:
volume.beta.kubernetes.io/storage-class: px-shared-sc
spec:
accessModes:
- ReadWriteMany
resources:
requests:
storage: 1Gi
EOF
$ kubectl create -f px-wp-pvc.yaml
persistentvolumeclaim/px-wp-pvc created
We will now have two PVCs associated with MySQL and WordPress deployments.
$ kubectl get pvc NAME STATUS VOLUME CAPACITY ACCESS MODES STORAGECLASS AGE px-mysql-pvc Bound pvc-d9f6f16a-31ad-11e9-aa17-32e4785d9ba0 1Gi RWO px-ha-sc 7m12s px-wp-pvc Bound pvc-d35e973c-31ae-11e9-aa17-32e4785d9ba0 1Gi RWX px-shared-sc 13s
Deploying WordPress on IKS
We are now ready to deploy the WordPress instance that talks to MySQL. Create the following YAML file and submit it to Kubernetes through kubectl.
$ cat > px-wp-app.yaml << EOF
apiVersion: apps/v1
kind: Deployment
metadata:
name: wordpress
labels:
app: wordpress
spec:
strategy:
rollingUpdate:
maxSurge: 1
maxUnavailable: 1
type: RollingUpdate
replicas: 1
selector:
matchLabels:
app: wordpress
template:
metadata:
labels:
app: wordpress
spec:
containers:
- image: wordpress:latest
name: wordpress
env:
- name: WORDPRESS_DB_HOST
value: mysql
- name: WORDPRESS_DB_PASSWORD
value: password
ports:
- containerPort: 80
name: wordpress
volumeMounts:
- name: wp-data
mountPath: /var/www/html
volumes:
- name: wp-data
persistentVolumeClaim:
claimName: px-wp-pvc
EOF
$ kubectl create -f px-wp-app.yaml
deployment.extensions/wordpress created
Let’s verify that both MySQL and WordPress pods are up and running.
$ kubectl get pods NAME READY STATUS RESTARTS AGE mysql-76d5c4b78b-gxdgg 1/1 Running 0 7m38s wordpress-7cfcbf4c67-5ttdp 1/1 Running 0 10s
Before accessing the web UI of WordPress, let’s make sure that the Apache server hosting WordPress is running. We can do that by checking the logs of the WordPress pod.
$ kubectl logs wordpress-79bcf7bb5f-t9grw WordPress not found in /var/www/html - copying now... Complete! WordPress has been successfully copied to /var/www/html AH00558: apache2: Could not reliably determine the server's fully qualified domain name, using 192.168.151.67. Set the 'ServerName' directive globally to suppress this message AH00558: apache2: Could not reliably determine the server's fully qualified domain name, using 192.168.151.67. Set the 'ServerName' directive globally to suppress this message [Fri Nov 16 23:35:24.830311 2018] [mpm_prefork:notice] [pid 1] AH00163: Apache/2.4.25 (Debian) PHP/7.2.12 configured -- resuming normal operations [Fri Nov 16 23:35:24.830357 2018] [core:notice] [pid 1] AH00094: Command line: 'apache2 -D FOREGROUND'
Exposing WordPress to the public
In order to access the WordPress UI from the public Internet, we need to expose the deployment through a Kubernetes load balancer service. On IKS, the service will automatically create a TCP Load Balancer and shows the IP address associated with it.
Let’s create the load balancer service to expose WordPress.
$ cat > px-wp-svc.yaml << EOF
apiVersion: v1
kind: Service
metadata:
name: wordpress
labels:
app: wordpress
spec:
ports:
- port: 80
selector:
app: wordpress
type: LoadBalancer
EOF
$ kubectl create -f px-wp-svc.yaml
service/wordpress created
We can check the status of the service with the following command:
$ kubectl get svc $ kubectl get svc NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE kubernetes ClusterIP 172.21.0.1 443/TCP 8d mysql ClusterIP None 3306/TCP 5m24s wordpress LoadBalancer 172.21.193.91 169.46.22.83 80:30203/TCP 12s

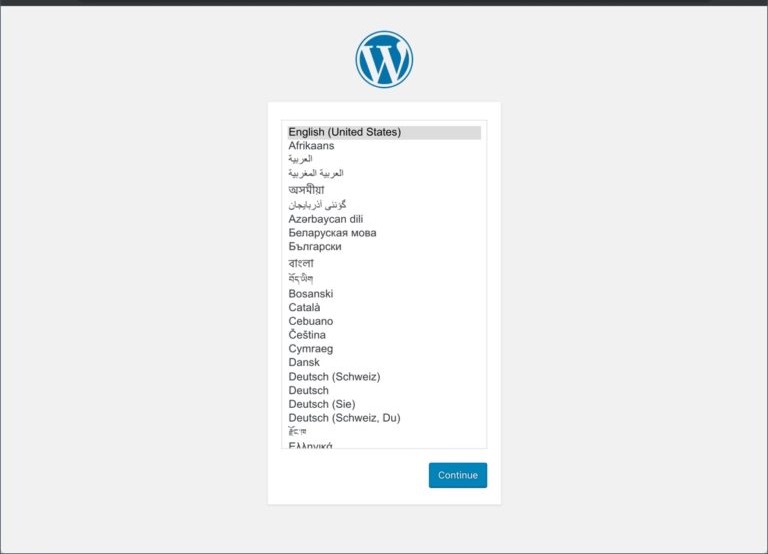

IKS has initiated the creation of load balancer that points to the WordPress service. After a few minutes, you can access the WordPress web UI through the load balancer’s IP address from any browser.
You can scale WordPress by adding more replicas to the deployment. Since all the WordPress pods share the common storage backend based on Portworx shared volume, the deployment can be easily scaled out.
The MySQL deployment is configured to be in HA mode. For details on how to perform failover, a dynamic expansion the volumes, and configuring snapshots, refer to the tutorial on running HA MySQL on IKS.
Summary
Portworx can be easily deployed on IBM Cloud Kubernetes Service to run stateful workloads in production. Through the integration of STORK, DevOps and StorageOps teams can seamlessly run highly available database clusters in IKS. They can perform traditional operations such as volume expansion, backup, and recovery for the cloud native applications in an automated and efficient manner.
Share
Subscribe for Updates
About Us
Portworx is the leader in cloud native storage for containers.
Thanks for subscribing!
Janakiram MSV
Contributor | Certified Kubernetes Administrator (CKA) and Developer (CKAD)Explore Related Content:
- databases
- Ibm
- iks
- kubernetes
- wordpress
