IBM Cloud Private is an application platform for developing and managing on-premises, containerized applications. It is an integrated environment for managing containers that includes the container orchestrator Kubernetes, a private image registry, a management console, and monitoring frameworks.
Portworx is a cloud native storage platform to run persistent workloads deployed on a variety of orchestration engines including Kubernetes. With Portworx, customers can manage the database of their choice on any infrastructure using any container scheduler. It provides a single data management layer for all stateful services, no matter where they run.
In summary, to run HA Cassandra on IBM Cloud Private (ICP) you need to:
- Setup and configure ICP environment
- Install a cloud native storage solution like Portworx as a DaemonSet on Kubernetes
- Create a storage class defining your storage requirements like replication factor, snapshot policy, and performance profile
- Deploy Cassandra as a StatefulSet on Kubernetes
- Test failover by killing or cordoning nodes in your cluster
- Optional – Take an app consistent snapshot of Cassandra
- Optional – Bootstrap a new Cassandra cluster from a snapshot backup
How to install IBM Cloud Private
IBM Cloud Private facilitates the development of applications in a shared, multitenant environment and supports both Linux x86_64 on x86 and Linux on Power (ppc64le) architectures. This deployment is based on ICP running in x86 architecture. For a detailed walkthrough of setting up ICP, refer to the official IBM documentation.

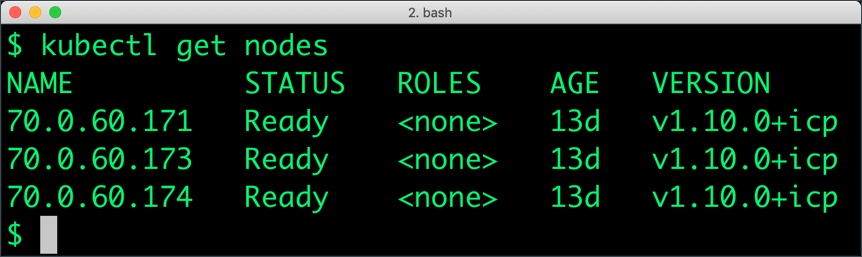

By the end of this step, you should have a Kubernetes cluster with one master and three worker nodes.
Installing Portworx in Kubernetes
Installing Portworx on ICP is not different from installing it on a Kubernetes cluster setup through Kops. Portworx documentation has the steps involved in running the Portworx cluster in a Kubernetes environment.

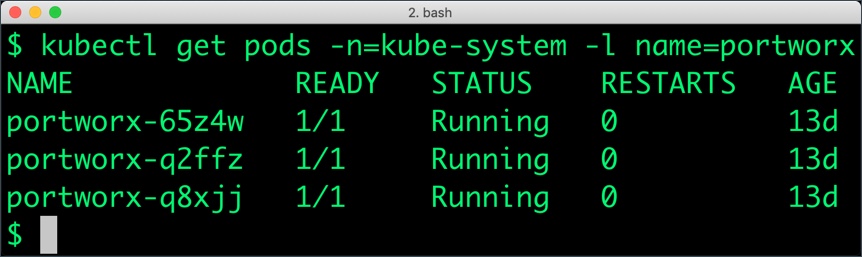

Ensure that Portworx storage cluster is installed and available as a DaemonSet.
Creating a storage class for Cassandra
Once the ICP environment is up and running, and Portworx is installed and configured, we will deploy a highly available Cassandra database.
Through storage class objects, an admin can define different classes of Portworx volumes that are offered in a cluster. These classes will be used during the dynamic provisioning of volumes. The storage class defines the replication factor, I/O profile (e.g., for a database or a CMS), and priority (e.g., SSD or HDD). These parameters impact the availability and throughput of workloads and can be specified for each volume. This is important because a production database will have different requirements than a development Jenkins cluster.
In this example, the storage class that we deploy has a replication factor of 3s with I/O profile set to “db,” and priority set to “high.” This means that the storage will be optimized for low latency database workloads like Cassandra and automatically placed on the highest performance storage available in the cluster.
$ cat > px-cassandra-sc.yaml << EOF kind: StorageClass kind: StorageClass apiVersion: storage.k8s.io/v1 metadata: name: px-storageclass provisioner: kubernetes.io/portworx-volume parameters: repl: "3" io_profile: "db_remote" priority_io: "high" fg: "true" EOF
Create the storage class and verify its available in the default namespace.
$ kubectl create -f px-cassandra-sc.yaml storageclass.storage.k8s.io "px-storageclass" created $ $ kubectl describe sc px-storageclass Name: px-storageclass IsDefaultClass: No Annotations: Provisioner: kubernetes.io/portworx-volume Parameters: fg=true,io_profile=db_remote,priority_io=high,repl=3 AllowVolumeExpansion: MountOptions: ReclaimPolicy: Delete VolumeBindingMode: Immediate Events:
Deploying Cassandra StatefulSet on Kubernetes
Finally, let’s create a Cassandra cluster as a Kubernetes StatefulSet object. Like a Kubernetes deployment, a StatefulSet manages pods that are based on an identical container spec. Unlike a deployment, a StatefulSet maintains a sticky identity for each of their Pods. For more details on StatefulSets, refer to Kubernetes documentation.
A StatefulSet in Kubernetes requires a headless service to provide network identity to the pods it creates. The following command and the spec will help you create a headless service for your Cassandra installation.
$ cat > px-cassandra-svc.yaml << EOF
apiVersion: v1
kind: Service
metadata:
labels:
app: cassandra
name: cassandra
spec:
clusterIP: None
ports:
- port: 9042
selector:
app: cassandra
EOF
$ kubectl create -f px-cassandra-svc.yaml service "cassandra" created
Now, let’s go ahead and create a StatefulSet running Cassandra cluster based on the below spec.
cat > px-cassandra-app.yaml << EOF
apiVersion: apps/v1
kind: StatefulSet
metadata:
name: cassandra
spec:
selector:
matchLabels:
app: cassandra
serviceName: cassandra
replicas: 3
template:
metadata:
labels:
app: cassandra
spec:
schedulerName: stork
containers:
- name: cassandra
image: cassandra:3
ports:
- containerPort: 7000
name: intra-node
- containerPort: 7001
name: tls-intra-node
- containerPort: 7199
name: jmx
- containerPort: 9042
name: cql
env:
- name: CASSANDRA_SEEDS
value: cassandra-0.cassandra.default.svc.cluster.local
- name: MAX_HEAP_SIZE
value: 512M
- name: HEAP_NEWSIZE
value: 512M
- name: CASSANDRA_CLUSTER_NAME
value: "Cassandra"
- name: CASSANDRA_DC
value: "DC1"
- name: CASSANDRA_RACK
value: "Rack1"
- name: CASSANDRA_AUTO_BOOTSTRAP
value: "false"
- name: CASSANDRA_ENDPOINT_SNITCH
value: GossipingPropertyFileSnitch
volumeMounts:
- name: cassandra-data
mountPath: /var/lib/cassandra
volumeClaimTemplates:
- metadata:
name: cassandra-data
annotations:
volume.beta.kubernetes.io/storage-class: px-storageclass
labels:
app: cassandra
spec:
accessModes: [ "ReadWriteOnce" ]
resources:
requests:
storage: 1Gi
EOF
$ kubectl apply -f px-cassandra-app.yaml statefulset.apps "cassandra" created
Verify that all the pods are in the Running state before proceeding further.
$ kubectl get statefulset NAME DESIRED CURRENT AGE cassandra 3 2 45s
$ kubectl get pods NAME READY STATUS RESTARTS AGE cassandra-0 1/1 Running 0 1m cassandra-1 1/1 Running 0 1m cassandra-2 1/1 Running 1 1m
Let’s also check if persistent volume claims are bound to the volumes.
$ kubectl get pvc NAME STATUS VOLUME CAPACITY ACCESS MODES STORAGECLASS AGE cassandra-data-cassandra-0 Bound pvc-3cc7c73d-736e-11e9-8bbc-000c29549a08 5Gi RWO px-storageclass 59s cassandra-data-cassandra-1 Bound pvc-44438d19-736e-11e9-8bbc-000c29549a08 5Gi RWO px-storageclass 46s cassandra-data-cassandra-2 Bound pvc-4d1c827f-736e-11e9-8bbc-000c29549a08 5Gi RWO px-storageclass 32s
Notice the naming convention followed by Kubernetes for the pods and volume claims. The arbitrary number attached to each object indicates the association of pods and volumes.

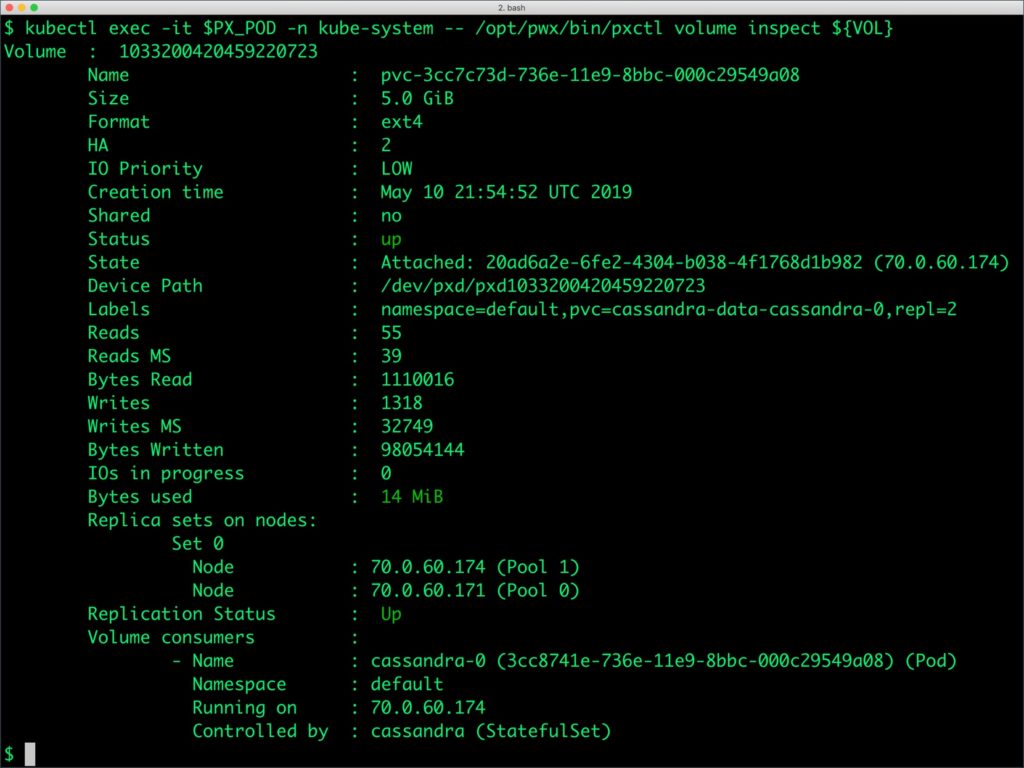

We can now inspect the Portworx volume associated with one of the Cassandra pods by accessing the pxctl tool.
$ VOL=`kubectl get pvc | grep cassandra-0 | awk '{print $3}'`
$ PX_POD=$(kubectl get pods -l name=portworx -n kube-system -o jsonpath='{.items[0].metadata.name}')
$ kubectl exec -it $PX_POD -n kube-system -- /opt/pwx/bin/pxctl volume inspect ${VOL}
Volume : 1033200420459220723
Name : pvc-3cc7c73d-736e-11e9-8bbc-000c29549a08
Size : 5.0 GiB
Format : ext4
HA : 2
IO Priority : LOW
Creation time : May 10 21:54:52 UTC 2019
Shared : no
Status : up
State : Attached: 20ad6a2e-6fe2-4304-b038-4f1768d1b982 (70.0.60.174)
Device Path : /dev/pxd/pxd1033200420459220723
Labels : namespace=default,pvc=cassandra-data-cassandra-0,repl=2
Reads : 55
Reads MS : 39
Bytes Read : 1110016
Writes : 1318
Writes MS : 32749
Bytes Written : 98054144
IOs in progress : 0
Bytes used : 14 MiB
Replica sets on nodes:
Set 0
Node : 70.0.60.174 (Pool 1)
Node : 70.0.60.171 (Pool 0)
Replication Status : Up
Volume consumers :
- Name : cassandra-0 (3cc8741e-736e-11e9-8bbc-000c29549a08) (Pod)
Namespace : default
Running on : 70.0.60.174
Controlled by : cassandra (StatefulSet)
The output from the above command confirms the creation of volumes that are backing Cassandra nodes.

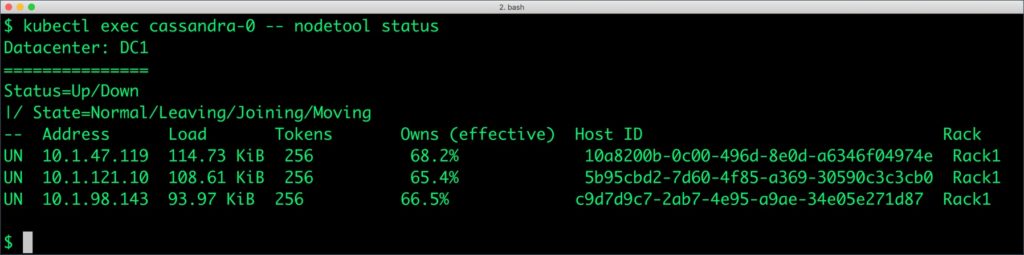

We can also use Cassandra’s nodetool to check the status of the cluster.
$ kubectl exec cassandra-0 -- nodetool status Datacenter: DC1 =============== Status=Up/Down |/ State=Normal/Leaving/Joining/Moving -- Address Load Tokens Owns (effective) Host ID Rack UN 10.1.47.119 114.73 KiB 256 68.2% 10a8200b-0c00-496d-8e0d-a6346f04974e Rack1 UN 10.1.121.10 108.61 KiB 256 65.4% 5b95cbd2-7d60-4f85-a369-30590c3c3cb0 Rack1 UN 10.1.98.143 93.97 KiB 256 66.5% c9d7d9c7-2ab7-4e95-a9ae-34e05e271d87 Rack1
To get the pods and hosts associated with the Cassandra cluster, run the below command:
$ kubectl get pods -l app=cassandra -o json | jq '.items[] | {"name": .metadata.name,"hostname": .spec.nodeName, "hostIP": .status.hostIP, "PodIP": .status.podIP}'
{
"name": "cassandra-0",
"hostname": "70.0.60.174",
"hostIP": "70.0.60.174",
"PodIP": "10.1.121.10"
}
{
"name": "cassandra-1",
"hostname": "70.0.60.173",
"hostIP": "70.0.60.173",
"PodIP": "10.1.98.143"
}
{
"name": "cassandra-2",
"hostname": "70.0.60.171",
"hostIP": "70.0.60.171",
"PodIP": "10.1.47.119"
}
Failing over Cassandra pod on Kubernetes
Populating sample data
Let’s populate the database with some sample data by accessing the first node of the Cassandra cluster. We will do this by invoking Cassandra shell, cqlsh in one of the pods.
$ kubectl exec -it cassandra-0 -- cqlsh Connected to Cassandra at 127.0.0.1:9042. [cqlsh 5.0.1 | Cassandra 3.11.3 | CQL spec 3.4.4 | Native protocol v4] Use HELP for help. cqlsh>
Now that we are inside the shell, we can create a keyspace and populate it.
CREATE KEYSPACE classicmodels WITH REPLICATION = { 'class' : 'SimpleStrategy', 'replication_factor' : 3 };
CONSISTENCY QUORUM;
Consistency level set to QUORUM.
use classicmodels;
CREATE TABLE offices (officeCode text PRIMARY KEY, city text, phone text, addressLine1 text, addressLine2 text, state text, country text, postalCode text, territory text);
INSERT into offices(officeCode, city, phone, addressLine1, addressLine2, state, country ,postalCode, territory) values
('1','San Francisco','+1 650 219 4782','100 Market Street','Suite 300','CA','USA','94080','NA');
INSERT into offices(officeCode, city, phone, addressLine1, addressLine2, state, country ,postalCode, territory) values
('2','Boston','+1 215 837 0825','1550 Court Place','Suite 102','MA','USA','02107','NA');
INSERT into offices(officeCode, city, phone, addressLine1, addressLine2, state, country ,postalCode, territory) values
('3','NYC','+1 212 555 3000','523 East 53rd Street','apt. 5A','NY','USA','10022','NA');
INSERT into offices(officeCode, city, phone, addressLine1, addressLine2, state, country ,postalCode, territory) values
('4','Paris','+33 14 723 4404','43 Rue Jouffroy abbans', NULL ,NULL,'France','75017','EMEA');
INSERT into offices(officeCode, city, phone, addressLine1, addressLine2, state, country ,postalCode, territory) values
('5','Tokyo','+81 33 224 5000','4-1 Kioicho',NULL,'Chiyoda-Ku','Japan','102-8578','Japan');
INSERT into offices(officeCode, city, phone, addressLine1, addressLine2, state, country ,postalCode, territory) values
('6','Sydney','+61 2 9264 2451','5-11 Wentworth Avenue','Floor #2',NULL,'Australia','NSW 2010','APAC');
INSERT into offices(officeCode, city, phone, addressLine1, addressLine2, state, country ,postalCode, territory) values
('7','London','+44 20 7877 2041','25 Old Broad Street','Level 7',NULL,'UK','EC2N 1HN','EMEA');
INSERT into offices(officeCode, city, phone, addressLine1, addressLine2, state, country ,postalCode, territory) values
('8','Mumbai','+91 22 8765434','BKC','Building 2',NULL,'MH','400051','APAC');

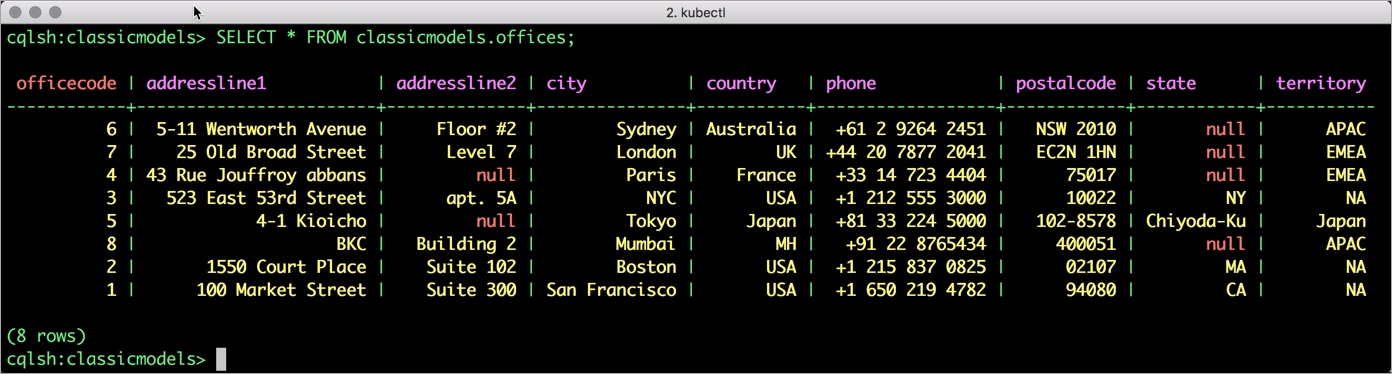

Let’s verify that the data is populated.
SELECT * FROM classicmodels.offices;
officecode | addressline1 | addressline2 | city | country | phone | postalcode | state | territory
------------+------------------------+--------------+---------------+-----------+------------------+------------+------------+-----------
6 | 5-11 Wentworth Avenue | Floor #2 | Sydney | Australia | +61 2 9264 2451 | NSW 2010 | null | APAC
7 | 25 Old Broad Street | Level 7 | London | UK | +44 20 7877 2041 | EC2N 1HN | null | EMEA
4 | 43 Rue Jouffroy abbans | null | Paris | France | +33 14 723 4404 | 75017 | null | EMEA
3 | 523 East 53rd Street | apt. 5A | NYC | USA | +1 212 555 3000 | 10022 | NY | NA
5 | 4-1 Kioicho | null | Tokyo | Japan | +81 33 224 5000 | 102-8578 | Chiyoda-Ku | Japan
8 | BKC | Building 2 | Mumbai | MH | +91 22 8765434 | 400051 | null | APAC
2 | 1550 Court Place | Suite 102 | Boston | USA | +1 215 837 0825 | 02107 | MA | NA
1 | 100 Market Street | Suite 300 | San Francisco | USA | +1 650 219 4782 | 94080 | CA | NA
(8 rows)
cqlsh:classicmodels>
Exit from the client shell to return to the host.
You can run the select query by accessing cqlsh from any of the pods of the StatefulSet.
Run nodetool again to check the replication of the data. The below command shows that the hosts on which the row with officecode=6 is available.
$ kubectl exec -it cassandra-0 -- nodetool getendpoints classicmodels offices 6 192.168.172.87 192.168.81.245 192.168.196.73
Simulating node failure
Let’s get the node name where the first pod of Cassandra StatefulSet is running.
$ NODE=`kubectl get pods cassandra-0 -o json | jq -r .spec.nodeName`
Now, let’s simulate the node failure by cordoning off the Kubernetes node.
$ kubectl cordon ${NODE}
node "70.0.60.174" cordoned
The above command disabled scheduling on one of the nodes.
$ kubectl get nodes NAME STATUS ROLES AGE VERSION 70.0.60.171 Ready 21d v1.10.0+icp 70.0.60.173 Ready 21d v1.10.0+icp 70.0.60.174 Ready,SchedulingDisabled 21d v1.10.0+icp
Let’s go ahead and delete the pod cassandra-0 running on the node that is cordoned off.
$ kubectl delete pod cassandra-0 pod "cassandra-0" deleted
Kubernetes controller now tries to create the pod on a different node.
$ kubectl get pods NAME READY STATUS RESTARTS AGE cassandra-0 0/1 ContainerCreating 0 2s cassandra-1 1/1 Running 0 54m cassandra-2 1/1 Running 1 53m
Wait for the pod to be in Running state on the node.
$ kubectl get pods NAME READY STATUS RESTARTS AGE cassandra-0 1/1 Running 0 1m cassandra-1 1/1 Running 0 54m cassandra-2 1/1 Running 1 53m
Finally, let’s verify that the data is still available.
Verifying that the data is intact
Let’s access the data in the first pod of the StatefulSet – cassandra-0.
$ kubectl exec cassandra-0 -- cqlsh -e 'select * from classicmodels.offices'
officecode | addressline1 | addressline2 | city | country | phone | postalcode | state | territory
------------+------------------------+--------------+---------------+-----------+------------------+------------+------------+-----------
6 | 5-11 Wentworth Avenue | Floor #2 | Sydney | Australia | +61 2 9264 2451 | NSW 2010 | null | APAC
7 | 25 Old Broad Street | Level 7 | London | UK | +44 20 7877 2041 | EC2N 1HN | null | EMEA
4 | 43 Rue Jouffroy abbans | null | Paris | France | +33 14 723 4404 | 75017 | null | EMEA
3 | 523 East 53rd Street | apt. 5A | NYC | USA | +1 212 555 3000 | 10022 | NY | NA
5 | 4-1 Kioicho | null | Tokyo | Japan | +81 33 224 5000 | 102-8578 | Chiyoda-Ku | Japan
8 | BKC | Building 2 | Mumbai | MH | +91 22 8765434 | 400051 | null | APAC
2 | 1550 Court Place | Suite 102 | Boston | USA | +1 215 837 0825 | 02107 | MA | NA
1 | 100 Market Street | Suite 300 | San Francisco | USA | +1 650 219 4782 | 94080 | CA | NA
(8 rows)
Observe that the data is still there and all the content is intact! We can also run the nodetool again to see that the new node is indeed a part of the StatefulSet.
$ kubectl exec cassandra-1 -- nodetool status Datacenter: DC1 =============== Status=Up/Down |/ State=Normal/Leaving/Joining/Moving -- Address Load Tokens Owns (effective) Host ID Rack UN 10.1.47.119 114.73 KiB 256 68.2% 10a8200b-0c00-496d-8e0d-a6346f04974e Rack1 UN 10.1.121.10 108.61 KiB 256 65.4% 5b95cbd2-7d60-4f85-a369-30590c3c3cb0 Rack1 UN 10.1.98.143 93.97 KiB 256 66.5% c9d7d9c7-2ab7-4e95-a9ae-34e05e271d87 Rack1
Capturing Application Consistent Snapshots to Restore Data
Portworx enables storage admins to perform backup and restore operations through the snapshots. 3DSnap is a feature to capture consistent snapshots from multiple nodes of a database cluster. This is highly recommended when running a multi-node Cassandra cluster as a Kubernetes StatefulSet. 3DSnap will create the snapshot from each of the node in the cluster, which ensures that the state is accurately captured from the distributed cluster.
3DSnap allows administrators to execute commands just before taking the snapshot and right after completing the task of taking a snapshot. These triggers will ensure that the data is fully committed to the disk before the snapshot. Similarly, it is possible to run a workload-specific command to refresh or force sync immediately after restoring the snapshot.
This section will walk you through the steps involved in creating and restoring a 3DSnap for the Cassandra StatefulSet.
Creating a 3DSnap
It’s a good idea to flush the data to the disk before initiating the snapshot creation. This is defined through a rule, which is a Custom Resource Definition created by Stork.
$ cat > px-cassandra-rule.yaml << EOF
apiVersion: stork.libopenstorage.org/v1alpha1
kind: Rule
metadata:
name: px-cassandra-rule
spec:
- podSelector:
app: cassandra
actions:
- type: command
value: nodetool flush
EOF
Create the rule from the above YAML file.
$ kubectl create -f px-cassandra-rule.yaml rule.stork.libopenstorage.org "px-cassandra-rule" created

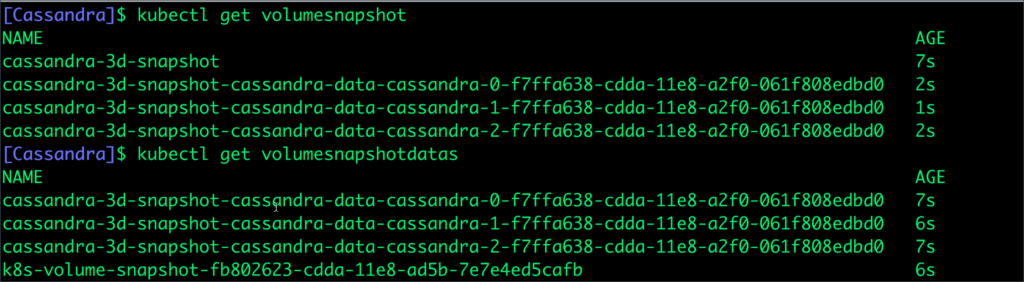

We will now initiate a 3DSnap task to backup all the PVCs associated with the Cassandra pods belonging to the StatefulSet.
$ cat > px-cassandra-snap.yaml << EOF
apiVersion: volumesnapshot.external-storage.k8s.io/v1
kind: VolumeSnapshot
metadata:
name: cassandra-3d-snapshot
annotations:
portworx.selector/app: cassandra
stork.rule/pre-snapshot: px-cassandra-rule
spec:
persistentVolumeClaimName: cassandra-data-cassandra-0
EOF
$ kubectl create -f px-cassandra-snap.yaml volumesnapshot.volumesnapshot.external-storage.k8s.io "cassandra-3d-snapshot" created
Let’s now verify that the snapshot creation is successful.
$ kubectl get volumesnapshot NAME AGE cassandra-3d-snapshot 7s cassandra-3d-snapshot-cassandra-data-cassandra-0-f7ffa638-cdda-11e8-a2f0-061f808edbd0 2s cassandra-3d-snapshot-cassandra-data-cassandra-1-f7ffa638-cdda-11e8-a2f0-061f808edbd0 1s cassandra-3d-snapshot-cassandra-data-cassandra-2-f7ffa638-cdda-11e8-a2f0-061f808edbd0 2s
$ kubectl get volumesnapshotdatas NAME AGE cassandra-3d-snapshot-cassandra-data-cassandra-0-f7ffa638-cdda-11e8-a2f0-061f808edbd0 7s cassandra-3d-snapshot-cassandra-data-cassandra-1-f7ffa638-cdda-11e8-a2f0-061f808edbd0 6s cassandra-3d-snapshot-cassandra-data-cassandra-2-f7ffa638-cdda-11e8-a2f0-061f808edbd0 7s k8s-volume-snapshot-fb802623-cdda-11e8-ad5b-7e7e4ed5cafb 6s
Restoring from a 3DSnap
Let’s now restore from the 3DSnap. Before that, we will simulate the database crash by deleting the StatefulSet and associated PVCs.
$ kubectl delete sts cassandra statefulset.apps "cassandra" deleted
$ kubectl delete pvc -l app=cassandra persistentvolumeclaim "cassandra-data-cassandra-0" deleted persistentvolumeclaim "cassandra-data-cassandra-1" deleted persistentvolumeclaim "cassandra-data-cassandra-2" deleted
Now our Kubernetes cluster has no database running. Let’s go ahead and restore the data from the snapshot before relaunching Cassandra StatefulSet.
We will now create three Persistent Volume Claims (PVCs) from existing 3DSnap with exactly the same volume name that the StatefulSet expects. When the pods are created as a part of the StatefulSet, they point to the existing PVCs which are already populated with the data restored from the snapshots.
Let’s create three PVCs from the 3DSnap snapshots. Notice how the annotation points to the snapshot in each PVC manifest.
$ cat > px-cassandra-pvc-0.yaml << EOF
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
name: cassandra-data-cassandra-0
annotations:
snapshot.alpha.kubernetes.io/snapshot: "cassandra-3d-snapshot-cassandra-data-cassandra-0-f7ffa638-cdda-11e8-a2f0-061f808edbd0"
spec:
accessModes:
- ReadWriteOnce
storageClassName: stork-snapshot-sc
resources:
requests:
storage: 5Gi
EOF
$ cat > px-cassandra-pvc-1.yaml << EOF
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
name: cassandra-data-cassandra-1
annotations:
snapshot.alpha.kubernetes.io/snapshot: "cassandra-3d-snapshot-cassandra-data-cassandra-0-f7ffa638-cdda-11e8-a2f0-061f808edbd0"
spec:
accessModes:
- ReadWriteOnce
storageClassName: stork-snapshot-sc
resources:
requests:
storage: 5Gi
EOF
$ cat > px-cassandra-pvc-2.yaml << EOF
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
name: cassandra-data-cassandra-0
annotations:
snapshot.alpha.kubernetes.io/snapshot: "cassandra-3d-snapshot-cassandra-data-cassandra-2-f7ffa638-cdda-11e8-a2f0-061f808edbd0"
spec:
accessModes:
- ReadWriteOnce
storageClassName: stork-snapshot-sc
resources:
requests:
storage: 5Gi
EOF
Create the PVCs from the above definitions.
$ kubectl create -f px-cassandra-snap-pvc-0.yaml persistentvolumeclaim "cassandra-data-cassandra-0" created $ kubectl create -f px-cassandra-snap-pvc-1.yaml persistentvolumeclaim "cassandra-data-cassandra-1" created $ kubectl create -f px-cassandra-snap-pvc-2.yaml persistentvolumeclaim "cassandra-data-cassandra-2" created $ kubectl create -f px-cassandra-app.yaml statefulset.apps "cassandra" created

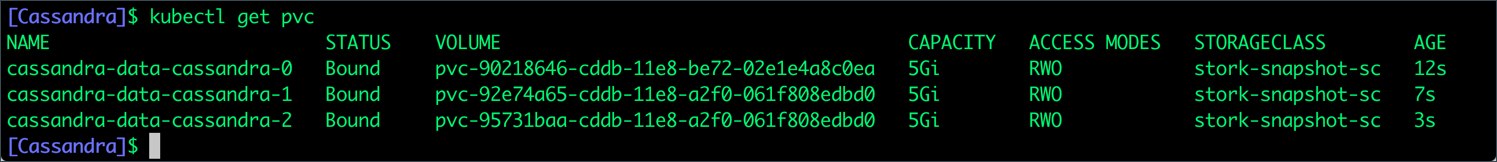

Verify that the new PVCs are ready and bound.
$ kubectl get pvc NAME STATUS VOLUME CAPACITY ACCESS MODES STORAGECLASS AGE cassandra-data-cassandra-0 Bound pvc-90218646-cddb-11e8-be72-02e1e4a8c0ea 5Gi RWO stork-snapshot-sc 12s cassandra-data-cassandra-1 Bound pvc-92e74a65-cddb-11e8-a2f0-061f808edbd0 5Gi RWO stork-snapshot-sc 7s cassandra-data-cassandra-2 Bound pvc-95731baa-cddb-11e8-a2f0-061f808edbd0 5Gi RWO stork-snapshot-sc 3s
With the PVCs in place, we are ready to launch the StatefulSet with no changes to the YAML file. Everything remains exactly the same while the data is already restored from the snapshots.
$ kubectl create -f px-cassandra-app.yaml statefulset.apps "cassandra" created
Check the data through the cqlsh from one the Cassandra pods.
$ kubectl exec cassandra-0 -- cqlsh -e 'select * from classicmodels.offices'
officecode | addressline1 | addressline2 | city | country | phone | postalcode | state | territory
------------+------------------------+--------------+---------------+-----------+------------------+------------+------------+-----------
6 | 5-11 Wentworth Avenue | Floor #2 | Sydney | Australia | +61 2 9264 2451 | NSW 2010 | null | APAC
7 | 25 Old Broad Street | Level 7 | London | UK | +44 20 7877 2041 | EC2N 1HN | null | EMEA
4 | 43 Rue Jouffroy abbans | null | Paris | France | +33 14 723 4404 | 75017 | null | EMEA
3 | 523 East 53rd Street | apt. 5A | NYC | USA | +1 212 555 3000 | 10022 | NY | NA
5 | 4-1 Kioicho | null | Tokyo | Japan | +81 33 224 5000 | 102-8578 | Chiyoda-Ku | Japan
8 | BKC | Building 2 | Mumbai | MH | +91 22 8765434 | 400051 | null | APAC
2 | 1550 Court Place | Suite 102 | Boston | USA | +1 215 837 0825 | 02107 | MA | NA
1 | 100 Market Street | Suite 300 | San Francisco | USA | +1 650 219 4782 | 94080 | CA | NA
(8 rows)
Congratulations! You have successfully restored an application-consistent snapshot for Cassandra.
Share
Subscribe for Updates
About Us
Portworx is the leader in cloud native storage for containers.
Thanks for subscribing!
Janakiram MSV
Contributor | Certified Kubernetes Administrator (CKA) and Developer (CKAD)Explore Related Content:
- cassandra
- Ibm
- icp
- kubernetes
