How to Run HA MariaDB on Red Hat OpenShift



This post is part of our ongoing series on running MariaDB on Kubernetes.  We’ve published a number of articles about running MariaDB on Kubernetes for specific platforms and for specific use cases.  If you are looking for a specific Kubernetes platform, check out these related articles.

Running HA MariaDB on Google Kubernetes Engine (GKE)

Running HA MariaDB on Amazon Elastic Container Service for Kubernetes (EKS)

Running HA MariaDB on Azure Kubernetes Service (AKS)

Running HA MariaDB with Rancher Kubernetes Engine (RKE)

And now, onto the post…

Red Hat OpenShift is a comprehensive enterprise-grade application platform built for containers powered by Kubernetes. OpenShift lets developers quickly build, develop, and deploy applications on nearly any infrastructure, public or private. It offers enterprises full control over their Kubernetes environments, whether they’re on-premise or in the public cloud, giving teams freedom to build and run applications anywhere.

Portworx recently achieved Red Hat certification for Red Hat OpenShift Container Platform and PX-Enterprise is available in the Red Hat Container Catalog. This certification enables enterprises to confidently run high-performance stateful applications like databases, big and fast data workloads, and machine learning applications on the Red Hat OpenShift Container Platform. Learn more about Portworx & OpenShift in our Product Brief.

This tutorial is a walk-through of the steps involved in deploying, managing, and backing up a highly available MariaDB database on OpenShift.

In summary, to backup and recover an HA MariaDB database on OpenShift you need to:

  1. Create an OpenShift cluster running at least three nodes
  2. Install a cloud native storage solution like Portworx as a DaemonSet on OpenShift
  3. Create a storage class defining your storage requirements like replication factor, snapshot policy, and performance profile
  4. Deploy MariaDB using Kubernetes
  5. Take a snapshot of Kubernetes PV
  6. Restore MariaDB using the Kubernetes persistent volume snapshot



How to install and configure an OpenShift Origin cluster

OpenShift Origin can be deployed in a variety of environments ranging from VirtualBox to a public cloud IaaS such as Amazon, Google, Azure. Refer to the official installation guide for the steps involved in setting up your own cluster. For this guide, we run an OpenShift Origin cluster in Microsoft Azure. Follow the instructions mentioned in Azure documentation.

Your OpenShift cluster setup should look similar to the below configuration. It is recommended that you run at least 3 nodes for the HA configuration.


$ oc get nodes
NAME                 STATUS    ROLES     AGE       VERSION
mycluster-infra-0    Ready     none      8d        v1.9.1+a0ce1bc657
mycluster-master-0   Ready     master    8d        v1.9.1+a0ce1bc657
mycluster-node-0     Ready     compute   8d        v1.9.1+a0ce1bc657
mycluster-node-1     Ready     compute   8d        v1.9.1+a0ce1bc657
mycluster-node-2     Ready     compute   8d        v1.9.1+a0ce1bc657

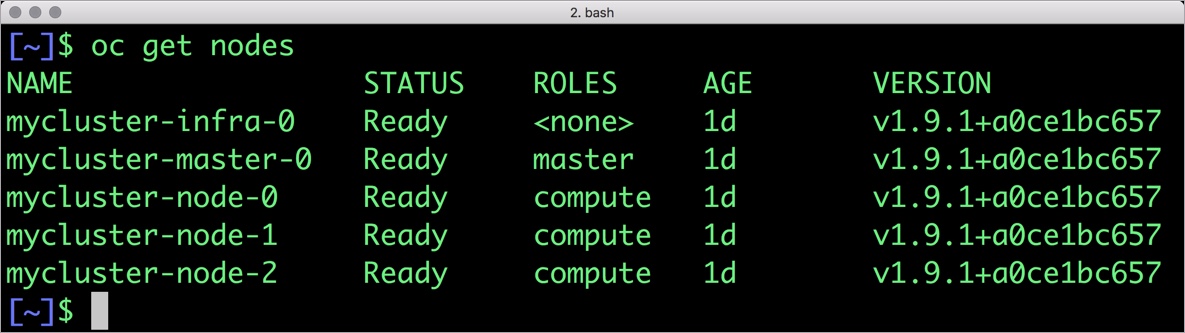

$ oc get nodes

Though almost all the steps can be performed through the OpenShift Console, we are using the oc CLI. Please note that most of the kubectl commands are available through oc tool. You may find the tools used interchangeably.


Installing Portworx on OpenShift

Since OpenShift is based on Kubernetes, the steps involved in installing Portworx are not very different from the standard Kubernetes installation. Portworx documentation has a detailed guide with the prerequisites and all the steps to install on OpenShift.

Before proceeding further, ensure that Portworx is up and running on OpenShift.

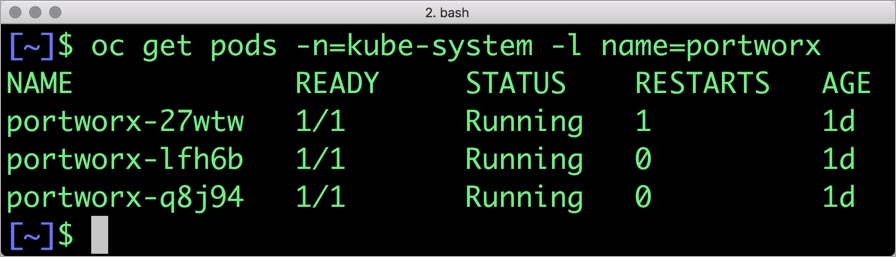

$ oc get pods -n=kube-system -l name=portworx
portworx-27wtw   1/1       Running   1          1d
portworx-lfh6b   1/1       Running   0          1d
portworx-q8j94   1/1       Running   0          1d


$ oc get pods -n=kube-system -l name=portworx

We can check the status of Portworx by running the following commands:


$ PX_POD=$(oc get pods -l name=portworx -n kube-system -o jsonpath='{.items[0].metadata.name}')

$ oc exec -it $PX_POD -n kube-system -- /opt/pwx/bin/pxctl status
Status: PX is operational
License: Trial (expires in 30 days)
Node ID: mycluster-node-2
	IP: 10.2.0.4
 	Local Storage Pool: 1 pool
	POOL	IO_PRIORITY	RAID_LEVEL	USABLE	USED	STATUS	ZONE	REGION
	0	LOW		raid0		20 GiB	3.1 GiB	Online	default	default
	Local Storage Devices: 1 device
	Device	Path		Media Type		Size		Last-Scan
	0:1	/dev/sdd	STORAGE_MEDIUM_MAGNETIC	20 GiB		06 Aug 18 16:58 UTC
	total			-			20 GiB
Cluster Summary
	Cluster ID: px-cluster-8764
	Cluster UUID: c29f07f2-dada-4f36-8f29-1f1ba2d5e198
	Scheduler: kubernetes
	Nodes: 3 node(s) with storage (3 online)
	IP		ID			StorageNode	Used	Capacity	Status	StorageStatus  	Version		Kernel				OS
	10.2.0.4	mycluster-node-2	Yes		3.1 GiB	20 GiB		Online	Up (This node) 	1.4.0.0-0753ff93.10.0-862.9.1.el7.x86_64	CentOS Linux 7 (Core)
	10.2.0.6	mycluster-node-1	Yes		3.1 GiB	20 GiB		Online	Up	       	1.4.0.0-0753ff93.10.0-862.9.1.el7.x86_64	CentOS Linux 7 (Core)
	10.2.0.5	mycluster-node-0	Yes		3.1 GiB	20 GiB		Online	Up	       	1.4.0.0-0753ff93.10.0-862.9.1.el7.x86_64	CentOS Linux 7 (Core)
Global Storage Pool
	Total Used    	:  9.2 GiB
	Total Capacity	:  60 GiB

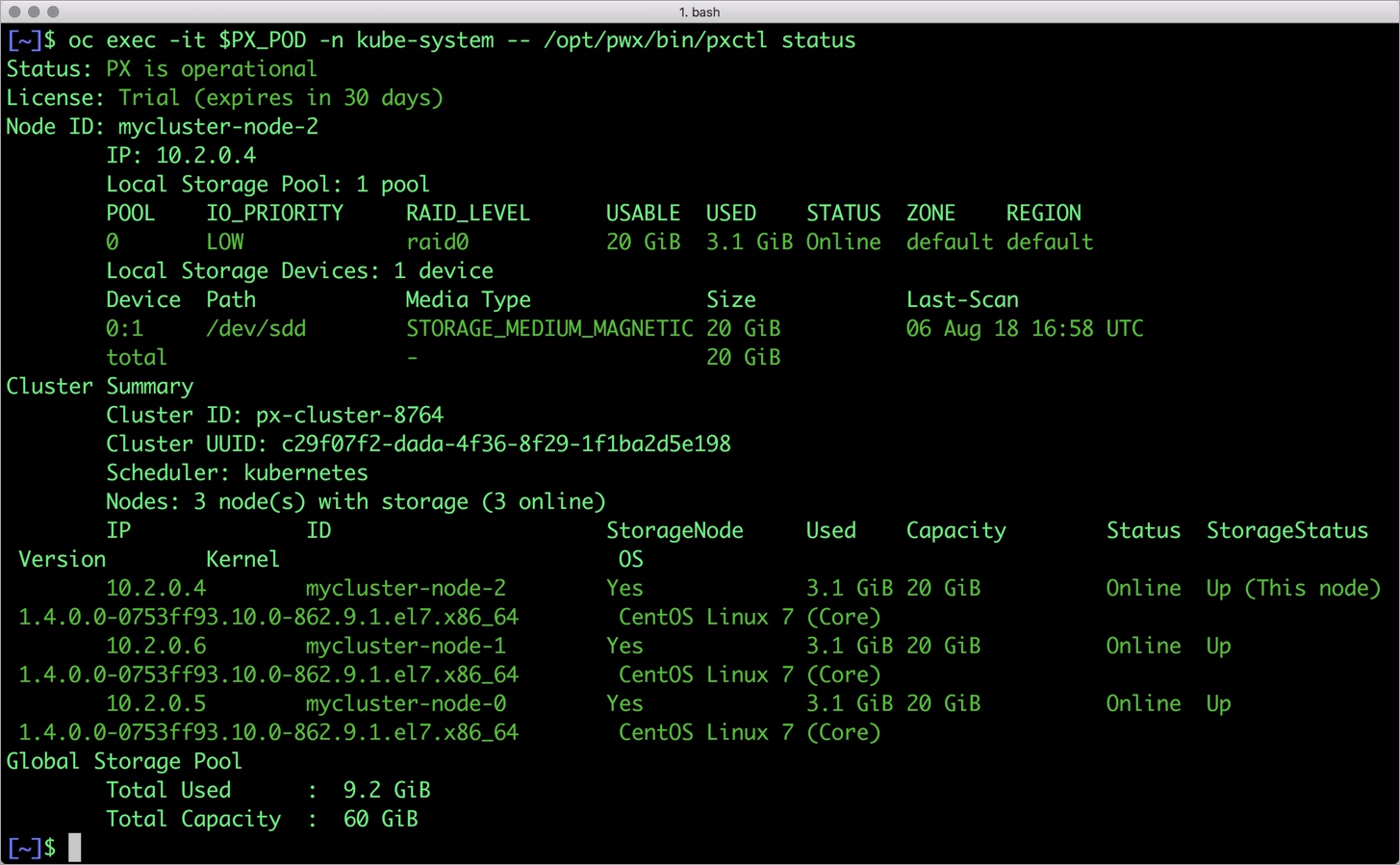

$ oc exec -it $PX_POD -n kube-system -- /opt/pwx/bin/pxctl status

Once OpenShift Origin cluster is up and running and Portworx is installed and configured, we will deploy a highly available MariaDB database.


Creating a Kubernetes storage class for MariaDB

Through storage class objects, an admin can define different classes of Portworx volumes that are offered in a cluster. These classes will be used during the dynamic provisioning of volumes. The storage class defines the replication factor, IO profile (e.g. for a database or a CMS), and priority (e.g. SSD or HDD). These parameters impact the availability and throughput of workload and can be specified for each volume. This is important because a production database will have different requirements than a development Jenkins cluster.

In this example, the storage class that we deploy has a replication factor of 3 with I/O profile set to “db,” and priority set to “high.” This means that the storage will be optimized for low latency database workloads like MariaDB and automatically placed on the highest performance storage available in the cluster. Notice that we also mention the filesystem, xfs in the storage class.


$ cat > px-mariadb-sc.yaml << EOF
kind: StorageClass
apiVersion: storage.k8s.io/v1beta1
metadata:
    name: px-ha-sc
provisioner: kubernetes.io/portworx-volume
parameters:
   repl: "3"
   io_profile: "db"
   io_priority: "high"
   fs: "xfs"
EOF
$ oc create -f px-mariadb-sc.yaml
storageclass.storage.k8s.io "px-ha-sc" created

$ oc get sc
NAME                PROVISIONER                     AGE
px-ha-sc            kubernetes.io/portworx-volume   10s
stork-snapshot-sc   stork-snapshot                  3d


Create the storage class and verify its available in the default namespace.


$ oc create -f px-mariadb-sc.yaml
storageclass.storage.k8s.io "px-ha-sc" created

$ oc get sc
NAME                PROVISIONER                     AGE
generic (default)   kubernetes.io/azure-disk        52m
px-ha-sc            kubernetes.io/portworx-volume   13s
stork-snapshot-sc   stork-snapshot                  17m



Creating a MariaDB PVC on OpenShift

We can now create a Persistent Volume Claim (PVC) based on the Storage Class. Thanks to dynamic provisioning, the claims will be created without explicitly provisioning a persistent volume (PV).


$ cat > px-mariadb-pvc.yaml << EOF
kind: PersistentVolumeClaim
apiVersion: v1
metadata:
   name: px-mariadb-pvc
   annotations:
     volume.beta.kubernetes.io/storage-class: px-ha-sc
spec:
   accessModes:
     - ReadWriteOnce
   resources:
     requests:
       storage: 1Gi
EOF

$
persistentvolumeclaim "px-mariadb-pvc" created

$ oc  get pvc
NAME           STATUS    VOLUME                                     CAPACITY   ACCESS MODES   STORAGECLASS   AGE
px-mariadb-pvc   Bound     pvc-739a7151-9a8d-11e8-9135-000d3a1a1cdf   1Gi        RWO            px-ha-sc       13s



Deploying MariaDB on OpenShift

Finally, let’s create a MariaDB instance as a Kubernetes deployment object. For simplicity’s sake, we will just be deploying a single mariadb pod. Because Portworx provides synchronous replication for High Availability, a single MariaDB instance might be the best deployment option for your MariaDB database. Portworx can also provide backing volumes for multi-node MariaDB cluster. The choice is yours.


$ cat > px-mariadb-app.yaml << EOF
apiVersion: extensions/v1beta1
kind: Deployment
metadata:
  name: mariadb
spec:
  strategy:
    rollingUpdate:
      maxSurge: 1
      maxUnavailable: 1
    type: RollingUpdate
  replicas: 1
  template:
    metadata:
      labels:
        app: mariadb
    spec:
      schedulerName: stork
      containers:
      - name: mariadb
        image: mariadb:latest
        imagePullPolicy: "Always"
        env:
        - name: MYSQL_ROOT_PASSWORD
          value: password
        ports:
        - containerPort: 3306
        volumeMounts:
        - mountPath: /var/lib/mysql
          name: mariadb-data
      volumes:
      - name: mariadb-data
        persistentVolumeClaim:
          claimName: px-mariadb-pvc
EOF
$ oc create -f px-mariadb-app.yaml
deployment "mariadb" created


The MariaDB deployment defined above is explicitly associated with the PVC, px-mariadb-pvc created in the previous step.

This deployment creates a single pod running MariaDB backed by Portworx.


$ oc get pods
NAME                       READY     STATUS    RESTARTS   AGE
docker-registry-2-7dwtc    1/1       Running   1          1d
mariadb-654cc68f68-gxxbd     1/1       Running   0          22s
registry-console-1-j9cg2   1/1       Running   1          1d
router-1-lqsxs             1/1       Running   1          1d


We can inspect the Portworx volume by accessing the pxctl tool running with the MariaDB pod.


$ VOL=`oc get pvc | grep px-mariadb-pvc | awk '{print $3}'`
$ PX_POD=$(oc get pods -l name=portworx -n kube-system -o jsonpath='{.items[0].metadata.name}')
$ oc exec -it $PX_POD -n kube-system -- /opt/pwx/bin/pxctl volume inspect ${VOL}
Volume	:  984374852040473937
	Name            	 :  pvc-739a7151-9a8d-11e8-9135-000d3a1a1cdf
	Size            	 :  1.0 GiB
	Format          	 :  xfs
	HA              	 :  3
	IO Priority     	 :  LOW
	Creation time   	 :  Aug 7 22:01:35 UTC 2018
	Shared          	 :  no
	Status          	 :  up
	State           	 :  Attached: mycluster-node-1 (10.2.0.6)
	Device Path     	 :  /dev/pxd/pxd984374852040473937
	Labels          	 :  pvc=px-mariadb-pvc
	Reads           	 :  138
	Reads MS        	 :  62
	Bytes Read      	 :  2371584
	Writes          	 :  659
	Writes MS       	 :  96013
	Bytes Written   	 :  172965888
	IOs in progress 	 :  0
	Bytes used      	 :  126 MiB
	Replica sets on nodes:
		Set 0
		  Node 		 : 10.2.0.6 (Pool 0)
		  Node 		 : 10.2.0.5 (Pool 0)
		  Node 		 : 10.2.0.4 (Pool 0)
	Replication Status	 :  Up
	Volume consumers	 :
		- Name           : mariadb-654cc68f68-gxxbd (e9daceb6-9a8d-11e8-9135-000d3a1a1cdf) (Pod)
		  Namespace      : default
		  Running on     : mycluster-node-1
		  Controlled by  : mariadb-654cc68f68 (ReplicaSet)

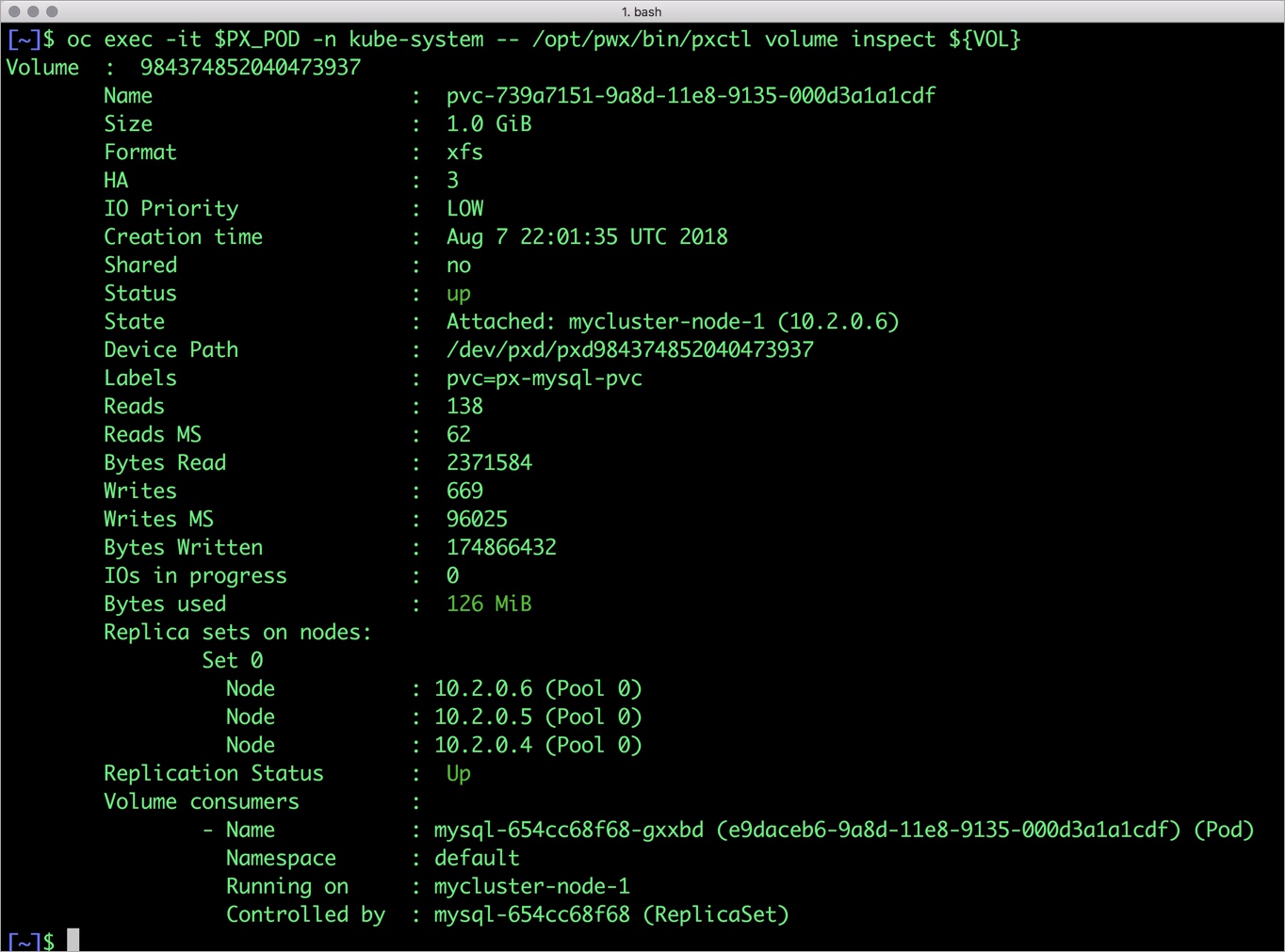

The screenshot looks similar to the one shown below:

$ oc exec -it $PX_POD -n kube-system -- /opt/pwx/bin/pxctl volume inspect ${VOL}


Failing over MariaDB pod on OpenShift

Populating sample data

Let’s populate the database with some sample data.

We will first find the pod that’s running MariaDB to access the shell.


$ POD=`oc get pods -l app=mariadb | grep Running | grep 1/1 | awk '{print $1}'`

$ oc exec -it $POD -- mariadb -uroot -ppassword
Welcome to the MariaDB monitor.  Commands end with ; or \g.
Your MariaDB connection id is 11
Server version: 10.4.6-MariaDB-1:10.4.6+maria~bionic mariadb.org binary distribution

Copyright (c) 2000, 2018, Oracle, MariaDB Corporation Ab and others.

Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.

MariaDB [(none)]>


Now that we are inside the shell, we can populate create a sample database and table.


MariaDB> CREATE DATABASE `classicmodels`;

MariaDB> USE `classicmodels`;

MariaDB> CREATE TABLE `offices` (
  `officeCode` varchar(10) NOT NULL,
  `city` varchar(50) NOT NULL,
  `phone` varchar(50) NOT NULL,
  `addressLine1` varchar(50) NOT NULL,
  `addressLine2` varchar(50) DEFAULT NULL,
  `state` varchar(50) DEFAULT NULL,
  `country` varchar(50) NOT NULL,
  `postalCode` varchar(15) NOT NULL,
  `territory` varchar(10) NOT NULL,
  PRIMARY KEY (`officeCode`)
) ENGINE=InnoDB DEFAULT CHARSET=latin1;
Query OK, 0 rows affected (0.227 sec)

MariaDB> insert  into `offices`(`officeCode`,`city`,`phone`,`addressLine1`,`addressLine2`,`state`,`country`,`postalCode`,`territory`) values
('1','San Francisco','+1 650 219 4782','100 Market Street','Suite 300','CA','USA','94080','NA'),
('2','Boston','+1 215 837 0825','1550 Court Place','Suite 102','MA','USA','02107','NA'),
('3','NYC','+1 212 555 3000','523 East 53rd Street','apt. 5A','NY','USA','10022','NA'),
('4','Paris','+33 14 723 4404','43 Rue Jouffroy D\'abbans',NULL,NULL,'France','75017','EMEA'),
('5','Tokyo','+81 33 224 5000','4-1 Kioicho',NULL,'Chiyoda-Ku','Japan','102-8578','Japan'),
('6','Sydney','+61 2 9264 2451','5-11 Wentworth Avenue','Floor #2',NULL,'Australia','NSW 2010','APAC'),
('7','London','+44 20 7877 2041','25 Old Broad Street','Level 7',NULL,'UK','EC2N 1HN','EMEA');
Query OK, 7 rows affected (0.039 sec)
Records: 7  Duplicates: 0  Warnings: 0


Let’s run a few queries on the table.


MariaDB> select `officeCode`,`city`,`phone`,`addressLine1`,`city` from `offices`;
+------------+---------------+------------------+--------------------------+---------------+
| officeCode | city          | phone            | addressLine1             | city          |
+------------+---------------+------------------+--------------------------+---------------+
| 1          | San Francisco | +1 650 219 4782  | 100 Market Street        | San Francisco |
| 2          | Boston        | +1 215 837 0825  | 1550 Court Place         | Boston        |
| 3          | NYC           | +1 212 555 3000  | 523 East 53rd Street     | NYC           |
| 4          | Paris         | +33 14 723 4404  | 43 Rue Jouffroy D'abbans | Paris         |
| 5          | Tokyo         | +81 33 224 5000  | 4-1 Kioicho              | Tokyo         |
| 6          | Sydney        | +61 2 9264 2451  | 5-11 Wentworth Avenue    | Sydney        |
| 7          | London        | +44 20 7877 2041 | 25 Old Broad Street      | London        |
+------------+---------------+------------------+--------------------------+---------------+
7 rows in set (0.01 sec)

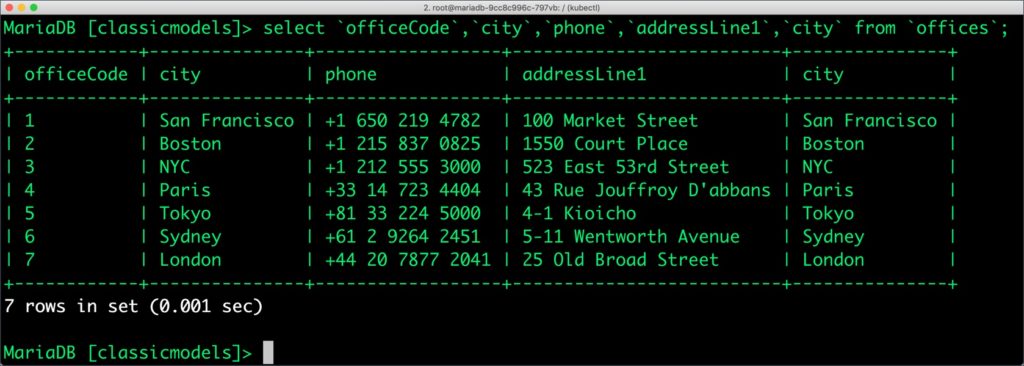

MariaDB[classicmodels]> select `officeCode`,`city`,`phone`,`addressLine1`,`city` from `offices`;

Find all the offices in USA.


MariaDB [classicmodels]> select `officeCode`, `city`, `phone`  from `offices` where `country` = "USA";
+------------+---------------+-----------------+
| officeCode | city          | phone           |
+------------+---------------+-----------------+
| 1          | San Francisco | +1 650 219 4782 |
| 2          | Boston        | +1 215 837 0825 |
| 3          | NYC           | +1 212 555 3000 |
+------------+---------------+-----------------+
3 rows in set (0.00 sec)


Exit from the MariaDB shell to return to the host.


Simulating node failure

Now, let’s simulate node failure by cordoning off the OpenShift node on which MariaDB is running.


$ NODE=`oc get pods -l app=mariadb -o wide | grep -v NAME | awk '{print $7}'`

$ oc adm cordon ${NODE}
node "mycluster-node-1" cordoned


The above command disabled scheduling on one of the nodes.


$ oc get nodes
NAME                                            STATUS                     ROLES     AGE       VERSION
NAME                 STATUS                     ROLES     AGE       VERSION
mycluster-infra-0    Ready                          1h        v1.9.1+a0ce1bc657
mycluster-master-0   Ready                      master    1h        v1.9.1+a0ce1bc657
mycluster-node-0     Ready                      compute   1h        v1.9.1+a0ce1bc657
mycluster-node-1     Ready,SchedulingDisabled   compute   1h        v1.9.1+a0ce1bc657
mycluster-node-2     Ready                      compute   1h        v1.9.1+a0ce1bc657


Now, let’s go ahead and delete the mariadbDB pod.


$ POD=`oc get pods -l app=mariadb -o wide | grep -v NAME | awk '{print $1}'`
$ oc delete pod ${POD}
pod "mariadb-654cc68f68-gxxbd" deleted


As soon as the pod is deleted, it is relocated to the node with the replicated data. Storage Orchestrator for Kubernetes (STORK), a Portworx-contributed open source storage scheduler, ensures that the pod is co-located on the exact node where the data is stored. It ensures that an appropriate node is selected for scheduling the pod.

Let’s verify this by running the below command. We will notice that a new pod has been created and scheduled in a different node.


$ oc get pods -l app=mariadb -o wide
NAME                     READY     STATUS    RESTARTS   AGE       IP               NODE
mariadb-97b758c4c-sssfg   1/1       Running   0          18s       10.129.0.7   mycluster-node-2


Let’s uncordon the node to bring it back to action.


$ oc adm uncordon ${NODE}
node "mycluster-node-1" uncordoned


Finally, let’s verify that the data is still available.


Verifying that the data is intact

Let’s find the pod name and run the ‘exec’ command, and then access the MariaDB shell.


$ oc exec -it $POD -- mysql -uroot -ppassword
Welcome to the MariaDB monitor.  Commands end with ; or \g.
Your MariaDB connection id is 8
Server version: 10.4.6-MariaDB-1:10.4.6+maria~bionic mariadb.org binary distribution

Copyright (c) 2000, 2018, Oracle, MariaDB Corporation Ab and others.

Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.

MariaDB [(none)]>


We will query the database to verify that the data is intact.


MariaDB [none]> USE `classicmodels`;
MariaDB [classicmodels]> select `officeCode`, `city`, `phone`  from `offices` where `country` = "USA";
+------------+---------------+-----------------+
| officeCode | city          | phone           |
+------------+---------------+-----------------+
| 1          | San Francisco | +1 650 219 4782 |
| 2          | Boston        | +1 215 837 0825 |
| 3          | NYC           | +1 212 555 3000 |
+------------+---------------+-----------------+
3 rows in set (0.00 sec)


Observe that the database table is still there and all the content is intact! Exit from the client shell to return to the host.


Taking Snapshots of a Kubernetes volume and restoring the database

Portworx supports creating snapshots for OpenShift PVCs.

Let’s create a snapshot for the PVC we created for MariaDB.


cat >  px-mariadb-snap.yaml << EOF
apiVersion: volumesnapshot.external-storage.k8s.io/v1
kind: VolumeSnapshot
metadata:
  name: px-mariadb-snapshot
  namespace: default
spec:
  persistentVolumeClaimName: px-mariadb-pvc
EOF
$ oc create -f px-mariadb-snap.yaml
volumesnapshot.volumesnapshot.external-storage.k8s.io "px-mariadb-snapshot" created


Verify the creation of volume snapshot.


$ oc get volumesnapshot
NAME                AGE
px-mariadb-snapshot   30s
$ oc get volumesnapshotdatas
NAME                                                       AGE
k8s-volume-snapshot-6ab731c7-9278-11e8-b018-e2f4b6cbb690   34s


With the snapshot in place, let’s go ahead and delete the database.


$ POD=`oc get pods -l app=mariadb | grep Running | grep 1/1 | awk '{print $1}'`
$ oc exec -it $POD -- mysql -uroot -ppassword
Welcome to the MariaDB monitor. Commands end with ; or \g.
Your MariaDB connection id is 9
Server version: 10.4.6-MariaDB-1:10.4.6+maria~bionic mariadb.org binary distribution

Copyright (c) 2000, 2018, Oracle, MariaDB Corporation Ab and others.

Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.

MariaDB [(none)]>
drop database classicmodels;


Since snapshots are just like volumes, we can use it to start a new instance of MariaDB. Let’s create a new instance of MariaDB by restoring the snapshot data.


$ cat > px-mariadb-snap-pvc << EOF
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: px-mariadb-snap-clone
  annotations:
    snapshot.alpha.kubernetes.io/snapshot: px-mariadb-snapshot
spec:
  accessModes:
     - ReadWriteOnce
  storageClassName: stork-snapshot-sc
  resources:
    requests:
      storage: 2Gi
EOF

$ oc create -f px-mariadb-snap-pvc.yaml
persistentvolumeclaim "px-mariadb-snap-clone" created


From the new PVC, we will create a MariaDB pod.


$ cat < px-mariadb-snap-restore.yaml >> EOF
apiVersion: extensions/v1beta1
kind: Deployment
metadata:
  name: mariadb-snap
spec:
  strategy:
    rollingUpdate:
      maxSurge: 1
      maxUnavailable: 1
    type: RollingUpdate
  replicas: 1
  template:
    metadata:
      labels:
        app: mariadb-snap
    spec:
      affinity:
        nodeAffinity:
          requiredDuringSchedulingIgnoredDuringExecution:
            nodeSelectorTerms:
            - matchExpressions:
              - key: px/running
                operator: NotIn
                values:
                - "false"
              - key: px/enabled
                operator: NotIn
                values:
                - "false"
    spec:
      containers:
      - name: mariadb
        image: mariadb:latest
        imagePullPolicy: "Always"
        env:
        - name: MYSQL_ROOT_PASSWORD
          value: password
        ports:
        - containerPort: 3306
        volumeMounts:
        - mountPath: /var/lib/mysql
          name: mariadb-data
      volumes:
      - name: mariadb-data
        persistentVolumeClaim:
          claimName: px-mariadb-snap-clone
EOF
$ oc create -f px-mariadb-snap-restore.yaml
deployment "mariadb-snap" created


Verify that the new pod is in running state.


$ oc get pods -l app=mariadb-snap
NAME                         READY     STATUS    RESTARTS   AGE
mariadb-snap-5ddd6b6848-bb6wx   1/1       Running   0          30s


Finally, let’s access the sample data created earlier in the walkthrough.


$ POD=`oc get pods -l app=mariadb-snap | grep Running | grep 1/1 | awk '{print $1}'`
$ oc exec -it $POD -- mysql -uroot -ppassword
Welcome to the MariaDB monitor.  Commands end with ; or \g.
Your MariaDB connection id is 8
Server version: 10.4.6-MariaDB-1:10.4.6+maria~bionic mariadb.org binary distribution

Copyright (c) 2000, 2018, Oracle, MariaDB Corporation Ab and others.

Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.

MariaDB [(none)]>

MariaDB [(none)]> USE `classicmodels`;
MariaDB [classicmodels]> select `officeCode`, `city`, `phone`  from `offices` where `country` = "USA";
+------------+---------------+-----------------+
| officeCode | city          | phone           |
+------------+---------------+-----------------+
| 1          | San Francisco | +1 650 219 4782 |
| 2          | Boston        | +1 215 837 0825 |
| 3          | NYC           | +1 212 555 3000 |
+------------+---------------+-----------------+
3 rows in set (0.00 sec)


Notice that the collection is still there with the data intact.

We can also push the snapshot to Amazon S3 if we want to create a Disaster Recovery backup in another region. Portworx snapshots also work with any S3 compatible object storage, so the backup can go to a different cloud or even an on-premises data center. Alternatively, we can stretch a single Portworx cluster across two independent Kubernetes clusters for Zero RPO DR for Kubernetes.


Summary

Portworx can be easily deployed on Red Hat OpenShift to run stateful workloads in production, including mission-critical data management functions like backup and restore. Through the integration of Portworx and OpenShift, DevOps and DataOps teams can seamlessly run highly available database clusters in OpenShift. They can perform traditional operations such as volume expansion, snapshots, backup and recovery for the cloud-native applications.

Janakiram MSV

Contributor | Certified Kubernetes Administrator (CKA) and Developer (CKAD)

Share Share on Facebook Tweet about this on Twitter Share on LinkedIn



Back to Blog
