How to Run HA Elasticsearch (ELK) on Red Hat OpenShift

This post is part of our ongoing series on running Elasticsearch (ELK) on Kubernetes.  We’ve published a number of articles about running MySQL on Kubernetes for specific platforms and for specific use cases.  If you are looking for a specific Kubernetes platform, check out these related articles.

Running HA ELK on Amazon Elastic Container Service for Kubernetes (EKS)

Running HA ELK on Google Kubernetes Engine (GKE)

Running HA ELK on Azure Kubernetes Service (AKS)

Running HA ELK on IBM Cloud Kubernetes Service (IKS)

Running HA ELK with Rancher Kubernetes Engine (RKE)

And now, onto the post…



Red Hat OpenShift is a comprehensive enterprise-grade application platform built for containers powered by Kubernetes. OpenShift lets developers quickly build, develop, and deploy applications on nearly any infrastructure, public or private.

OpenShift comes in four flavors – OpenShift Origin, OpenShift Online, OpenShift Container Platform, and OpenShift Dedicated. OpenShift Origin is the upstream, open source version which can be installed on Fedora, CentOS or Red Hat Enterprise Linux. OpenShift Online is the hosted version of the platform managed by Red Hat. OpenShift Container Platform is the enterprise offering that can be deployed in the public cloud or within an enterprise data center. OpenShift Dedicated is a single-tenant, highly-available cluster running in the public cloud.

For this walk-through, we are using a cluster running OpenShift Origin.

Portworx is a cloud native storage platform to run persistent workloads deployed on a variety of orchestration engines including Kubernetes. With Portworx, customers can manage the database of their choice on any infrastructure using any container scheduler. It provides a single data management layer for all stateful services, no matter where they run.

Portworx is Red Hat certified for Red Hat OpenShift Container Platform and PX-Enterprise is available in the Red Hat Container Catalog. This certification enables enterprises to confidently run high-performance stateful applications like databases, big and fast data workloads, and machine learning applications on the Red Hat OpenShift Container Platform. Learn more about Portworx & OpenShift in our Product Brief.

This tutorial is a walk-through of the steps involved in deploying and managing a highly available ELK stack on OpenShift.

In summary, to run HA ELK stack on Red Hat OpenShift you need to:

  1. Create an OpenShift cluster running at least three nodes
  2. Install a cloud native storage solution like Portworx as a daemonset on OpenShift
  3. Create a storage class defining your storage requirements like replication factor, snapshot policy, and performance profile
  4. Deploy Elasticsearch as a StatefulSet on OpenShift
  5. Deploy Kibana Replicaset on Kubernetes
  6. Ingest data from Logstash into Elasticsearch, and visualize it through Kibana dashboard
  7. Test failover by killing or cordoning nodes in your cluster
  8. Take an application consistent backup with 3DSnap and restore Elasticsearch cluster



How to install and configure an OpenShift Origin cluster

OpenShift Origin can be deployed in a variety of environments ranging from VirtualBox to a public cloud IaaS such as Amazon, Google, Azure. Refer to the official installation guide for the steps involved in setting up your own cluster. For this guide, we run an OpenShift Origin cluster in AWS.

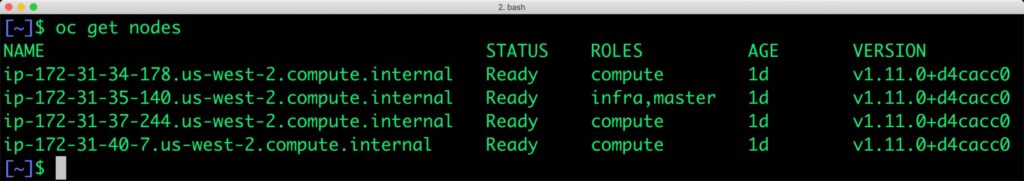

Your OpenShift cluster setup should look similar to the below configuration. It is recommended that you run at least 3 nodes for the HA configuration.

$ oc get nodes
NAME                                          STATUS    ROLES          AGE       VERSION
ip-172-31-34-178.us-west-2.compute.internal   Ready     compute        1d        v1.11.0+d4cacc0
ip-172-31-35-140.us-west-2.compute.internal   Ready     infra,master   1d        v1.11.0+d4cacc0
ip-172-31-37-244.us-west-2.compute.internal   Ready     compute        1d        v1.11.0+d4cacc0
ip-172-31-40-7.us-west-2.compute.internal     Ready     compute        1d        v1.11.0+d4cacc0

$ oc get nodes

Though almost all the steps can be performed through the OpenShift Console, we are using the oc CLI. Please note that most of the kubectl commands are available through oc tool. You may find the tools used interchangeably.



Installing Portworx in OpenShift

Since OpenShift is based on Kubernetes, the steps involved in installing Portworx are not very different from the standard Kubernetes installation. Portworx documentation has a detailed guide with the prerequisites and all the steps to install on OpenShift.

Before proceeding further, ensure that Portworx is up and running on OpenShift.

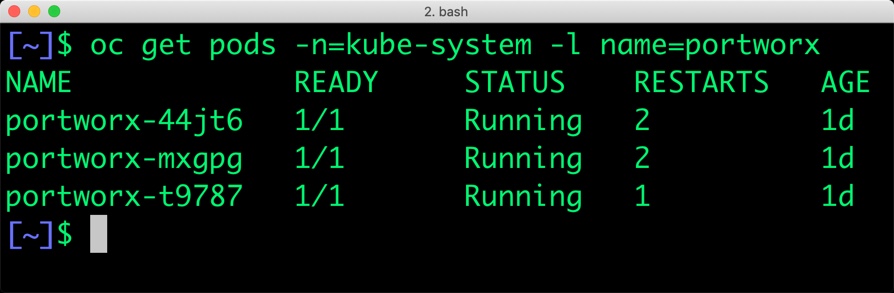

$ oc get pods -n=kube-system -l name=portworx
NAME             READY     STATUS    RESTARTS   AGE
portworx-44jt6   1/1       Running   2          1d
portworx-mxgpg   1/1       Running   2          1d
portworx-t9787   1/1       Running   1          1d

$ oc get pods -n=kube-system -l name=portworx



Creating a storage class for ELK stack

Once the OpenShift cluster is up and running, and Portworx is installed and configured, we will deploy a highly available Elasticsearch cluster.

Through storage class objects, an admin can define different classes of Portworx volumes that are offered in a cluster. These classes will be used during the dynamic provisioning of volumes. The storage class defines the replication factor, I/O profile (e.g., for a database or a CMS), and priority (e.g., SSD or HDD). These parameters impact the availability and throughput of workloads and can be specified for each volume. This is important because a production database will have different requirements than a development Jenkins cluster.

In this example, the storage class that we deploy has a replication factor of 3 with I/O profile set to “db,” and priority set to “high.” This means that the storage will be optimized for low latency database workloads like Cassandra and automatically placed on the highest performance storage available in the cluster.

$ cat > px-elk-sc.yaml << EOF
kind: StorageClass
apiVersion: storage.k8s.io/v1beta1
metadata:
    name: px-ha-sc
provisioner: kubernetes.io/portworx-volume
parameters:
   repl: "3"
EOF

Create the storage class and verify it’s available in the default namespace.

$ oc create -f px-elk-sc.yaml
storageclass.storage.k8s.io/px-ha-sc created

$ oc get sc
NAME                PROVISIONER                     AGE
px-ha-sc            kubernetes.io/portworx-volume   13s
stork-snapshot-sc   stork-snapshot                  1d



Deploying Elasticsearch StatefulSet on OpenShift

Finally, let’s create an Elasticsearch cluster as an OpenShift StatefulSet object. Like a Kubernetes deployment, a StatefulSet manages pods that are based on an identical container spec. Unlike a deployment, a StatefulSet maintains a sticky identity for each of their Pods. For more details on StatefulSets, refer to Kubernetes documentation.

A StatefulSet in OpenShift requires a headless service to provide network identity to the pods it creates. The following command and the spec will help you create a headless service for your Elasticsearch installation.

$ cat > px-elastic-svc.yaml << EOF
kind: Service
apiVersion: v1
metadata:
  name: elasticsearch
  labels:
    app: elasticsearch
spec:
  selector:
    app: elasticsearch
  clusterIP: None
  ports:
    - port: 9200
      name: rest
    - port: 9300
      name: inter-node
EOF
$ oc create -f px-elastic-svc.yaml
service/elasticsearch created

Now, let’s go ahead and create a StatefulSet running Elasticsearch cluster based on the below spec.

cat > px-elastic-app.yaml << EOF
apiVersion: apps/v1
kind: StatefulSet
metadata:
  name: es-cluster
spec:
  serviceName: elasticsearch
  replicas: 3
  selector:
    matchLabels:
      app: elasticsearch
  template:
    metadata:
      labels:
        app: elasticsearch
    spec:
      containers:
      - name: elasticsearch
        image: docker.elastic.co/elasticsearch/elasticsearch-oss:6.4.3
        resources:
            limits:
              cpu: 1000m
            requests:
              cpu: 100m
        ports:
        - containerPort: 9200
          name: rest
          protocol: TCP
        - containerPort: 9300
          name: inter-node
          protocol: TCP
        volumeMounts:
        - name: data
          mountPath: /usr/share/elasticsearch/data
        env:
          - name: cluster.name
            value: px-elk-demo
          - name: node.name
            valueFrom:
              fieldRef:
                fieldPath: metadata.name
          - name: discovery.zen.ping.unicast.hosts
            value: "es-cluster-0.elasticsearch,es-cluster-1.elasticsearch,es-cluster-2.elasticsearch"
          - name: discovery.zen.minimum_master_nodes
            value: "2"
          - name: ES_JAVA_OPTS
            value: "-Xms512m -Xmx512m"
      initContainers:
      - name: fix-permissions
        image: busybox
        command: ["sh", "-c", "chown -R 1000:1000 /usr/share/elasticsearch/data"]
        securityContext:
          privileged: true
        volumeMounts:
        - name: data
          mountPath: /usr/share/elasticsearch/data
      - name: increase-vm-max-map
        image: busybox
        command: ["sysctl", "-w", "vm.max_map_count=262144"]
        securityContext:
          privileged: true
      - name: increase-fd-ulimit
        image: busybox
        command: ["sh", "-c", "ulimit -n 65536"]
        securityContext:
          privileged: true
  volumeClaimTemplates:
  - metadata:
      name: data
      labels:
        app: elasticsearch
    spec:
      accessModes: [ "ReadWriteOnce" ]
      storageClassName: px-ha-sc
      resources:
        requests:
          storage: 10Gi
EOF
$ oc apply -f px-elastic-app.yaml
statefulset.apps/es-cluster created

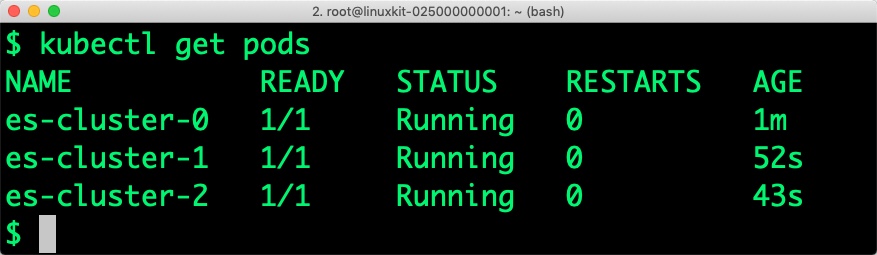

Verify that all the pods are in the Running state before proceeding further.

$ oc get statefulset
NAME        DESIRED   CURRENT   AGE
es-cluster   3         3         36s

$ kubectl get pods

Let’s also check if persistent volume claims are bound to the volumes.

$ oc get pvc
NAME                STATUS    VOLUME                                     CAPACITY   ACCESS MODES   STORAGECLASS   AGE
data-es-cluster-0   Bound     pvc-28b8a28f-2a1b-11e9-94d6-06c14675d88a   10Gi       RWO            px-ha-sc       1m
data-es-cluster-1   Bound     pvc-33422653-2a1b-11e9-94d6-06c14675d88a   10Gi       RWO            px-ha-sc       1m
data-es-cluster-2   Bound     pvc-3f0814fd-2a1b-11e9-94d6-06c14675d88a   10Gi       RWO            px-ha-sc       1m

Notice the naming convention followed by Kubernetes for the pods and volume claims. The arbitrary number attached to each object indicates the association of pods and volumes.

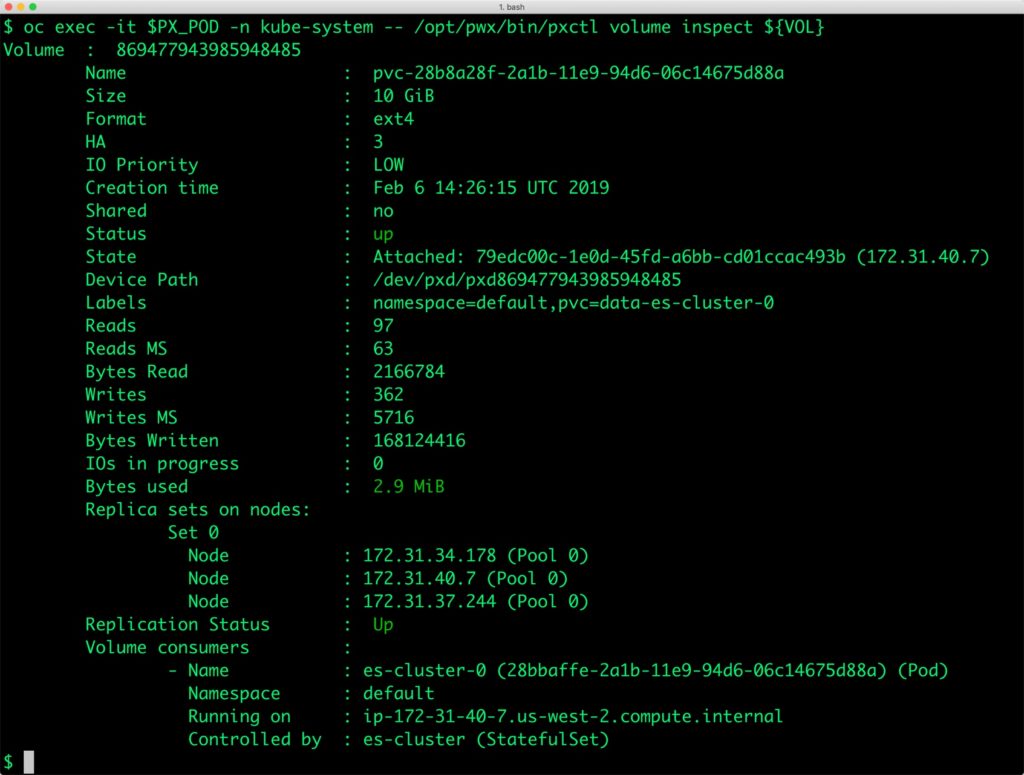

We can now inspect the Portworx volume associated with one of the Elasticsearch pods by accessing the pxctl tool.

$ PX_POD=$(oc get pods -l name=portworx -n kube-system -o jsonpath='{.items[0].metadata.name}')
$ VOL=`oc get pvc | grep es-cluster-0 | awk '{print $3}'`
$ oc exec -it $PX_POD -n kube-system -- /opt/pwx/bin/pxctl volume inspect ${VOL}
Volume	:  869477943985948485
	Name            	 :  pvc-28b8a28f-2a1b-11e9-94d6-06c14675d88a
	Size            	 :  10 GiB
	Format          	 :  ext4
	HA              	 :  3
	IO Priority     	 :  LOW
	Creation time   	 :  Feb 6 14:26:15 UTC 2019
	Shared          	 :  no
	Status          	 :  up
	State           	 :  Attached: 79edc00c-1e0d-45fd-a6bb-cd01ccac493b (172.31.40.7)
	Device Path     	 :  /dev/pxd/pxd869477943985948485
	Labels          	 :  namespace=default,pvc=data-es-cluster-0
	Reads           	 :  97
	Reads MS        	 :  63
	Bytes Read      	 :  2166784
	Writes          	 :  362
	Writes MS       	 :  5716
	Bytes Written   	 :  168124416
	IOs in progress 	 :  0
	Bytes used      	 :  2.9 MiB
	Replica sets on nodes:
		Set 0
		  Node 		 : 172.31.34.178 (Pool 0)
		  Node 		 : 172.31.40.7 (Pool 0)
		  Node 		 : 172.31.37.244 (Pool 0)
	Replication Status	 :  Up
	Volume consumers	 :
		- Name           : es-cluster-0 (28bbaffe-2a1b-11e9-94d6-06c14675d88a) (Pod)
		  Namespace      : default
		  Running on     : ip-172-31-40-7.us-west-2.compute.internal
		  Controlled by  : es-cluster (StatefulSet)

$ oc exec -it $PX_POD -n kube-system -- /opt/pwx/bin/pxctl volume inspect ${VOL}

Let’s configure a tunnel to talk to the first pod of the Elasticsearch cluster.

$ oc port-forward es-cluster-0 9200:9200 &
[1] 43090

Sending an HTTP GET request to the endpoint sends the following JSON:

$ curl localhost:9200
{
  "name" : "es-cluster-0",
  "cluster_name" : "px-elk-demo",
  "cluster_uuid" : "E8Up_xT-QRqBvgJFK3-PLQ",
  "version" : {
    "number" : "6.4.3",
    "build_flavor" : "oss",
    "build_type" : "tar",
    "build_hash" : "fe40335",
    "build_date" : "2018-10-30T23:17:19.084789Z",
    "build_snapshot" : false,
    "lucene_version" : "7.4.0",
    "minimum_wire_compatibility_version" : "5.6.0",
    "minimum_index_compatibility_version" : "5.0.0"
  },
  "tagline" : "You Know, for Search"
}

Let’s get the count of the nodes.

$ curl -s localhost:9200/_nodes | jq ._nodes
{
  "total": 3,
  "successful": 3,
  "failed": 0
}



Deploying Kibana on OpenShift

Kibana exposes a port for accessing the UI. Let’s start by creating the service first.

cat > px-kibana-svc.yaml << EOF
apiVersion: v1
kind: Service
metadata:
  name: kibana
  labels:
    app: kibana
spec:
  ports:
  - port: 5601
  selector:
    app: kibana
EOF
$ oc create -f px-kibana-svc.yaml
service/kibana created

Create the Kibana deployment with the following YAML file.

cat > px-kibana-app.yaml << EOF
apiVersion: apps/v1
kind: Deployment
metadata:
  name: kibana
  labels:
    app: kibana
spec:
  replicas: 1
  selector:
    matchLabels:
      app: kibana
  template:
    metadata:
      labels:
        app: kibana
    spec:
      containers:
      - name: kibana
        image: docker.elastic.co/kibana/kibana-oss:6.4.3
        resources:
          limits:
            cpu: 1000m
          requests:
            cpu: 100m
        env:
          - name: ELASTICSEARCH_URL
            value: http://elasticsearch:9200
        ports:
        - containerPort: 5601
EOF
$ oc create -f px-kibana-app.yaml
deployment.apps/kibana created

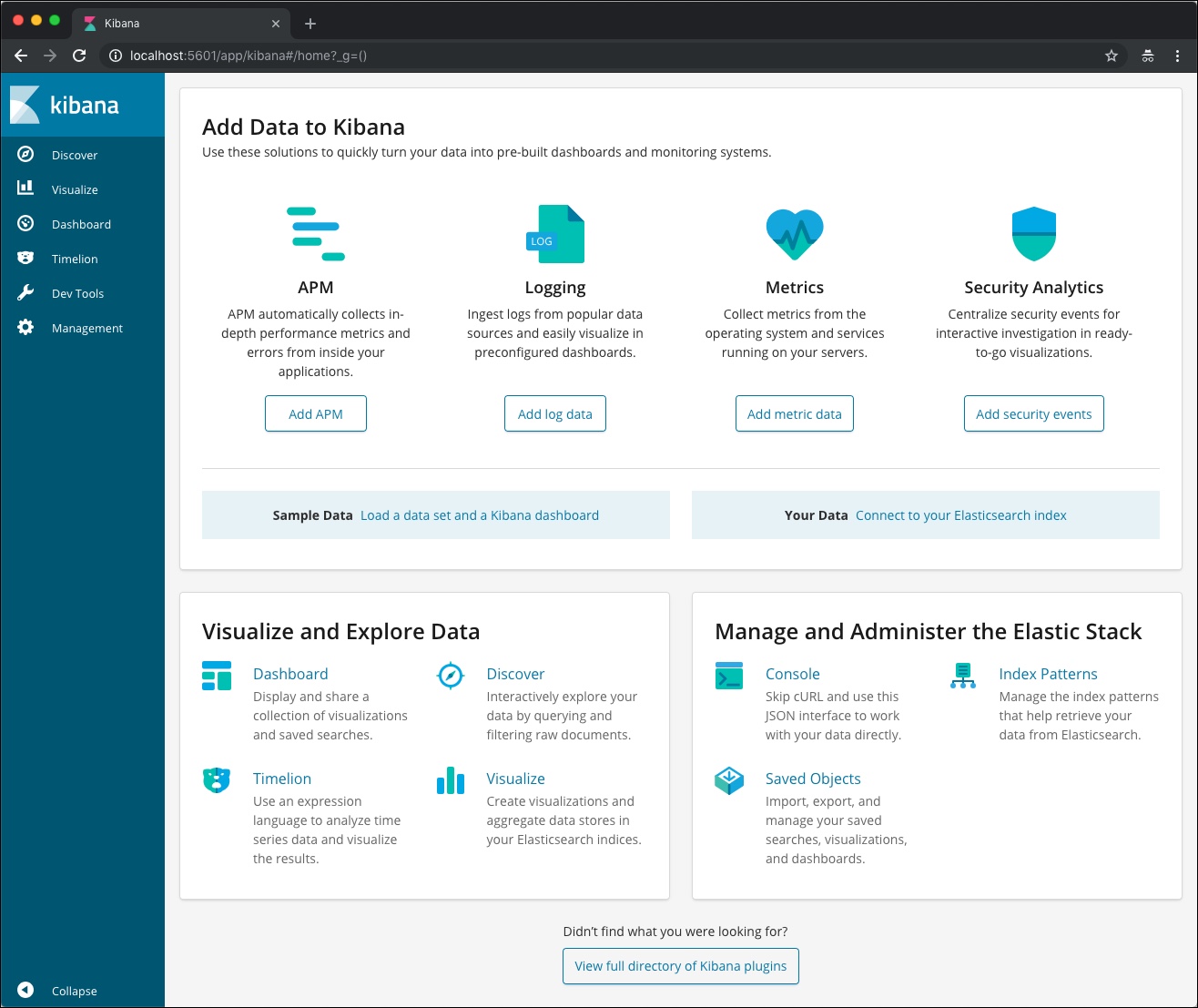

We can verify Kibana installation by accessing the UI from the browser. Before that, let’s expose the internal IP to our development machine. Once it is done, you can access the UI from http://localhost:5601.

$ KIBANA_POD=$(oc get pods -l app=kibana -o jsonpath='{.items[0].metadata.name}')
$ oc port-forward $KIBANA_POD 5601:5601 &
[1] 40162

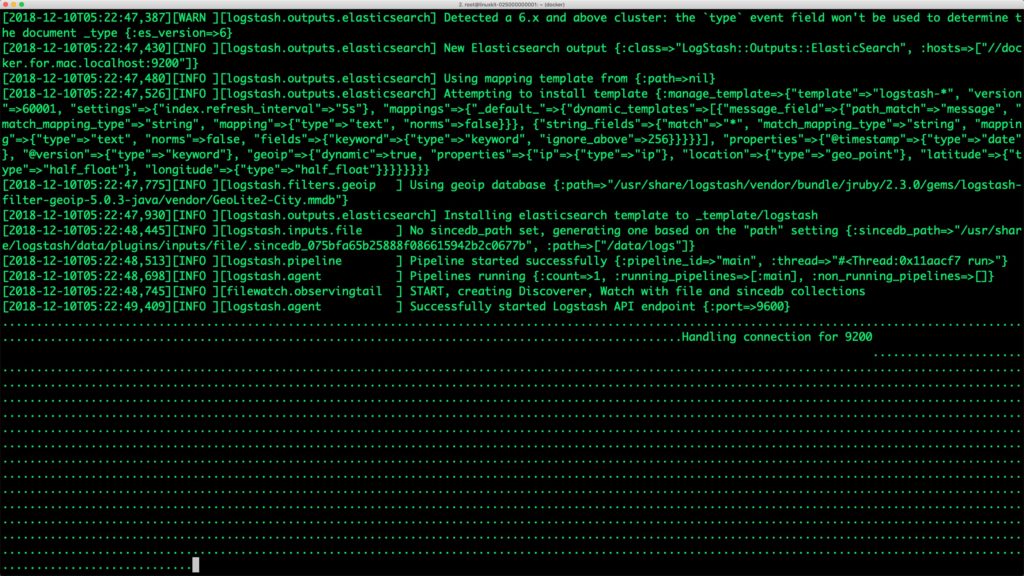

Ingesting data into Elasticsearch through Logstash

Now, we are ready to ingest data into the Elasticsearch through Logstash. For this, we will use the Docker image of Logstash running in your development machine.

Let’s get some sample data from one of the Github repositories of Elasticsearch.

Create a directory and fetch the dataset into that. Uncompress the dataset with the gzip utility.

$ mkdir logstash && cd logstash
$ wget https://github.com/elastic/elk-index-size-tests/raw/master/logs.gz
--2019-02-06 20:06:59--  https://github.com/elastic/elk-index-size-tests/raw/master/logs.gz
Resolving github.com (github.com)... 192.30.253.112, 192.30.253.113
Connecting to github.com (github.com)|192.30.253.112|:443... connected.
HTTP request sent, awaiting response... 302 Found
Location: https://raw.githubusercontent.com/elastic/elk-index-size-tests/master/logs.gz [following]
--2019-02-06 20:07:01--  https://raw.githubusercontent.com/elastic/elk-index-size-tests/master/logs.gz
Resolving raw.githubusercontent.com (raw.githubusercontent.com)... 151.101.152.133
Connecting to raw.githubusercontent.com (raw.githubusercontent.com)|151.101.152.133|:443... connected.
HTTP request sent, awaiting response... 200 OK
Length: 6632680 (6.3M) [application/octet-stream]
Saving to: 'logs.gz'

logs.gz                               100%[=======================================================================>]   6.33M  4.09MB/s    in 1.5s

2019-02-06 20:07:03 (4.09 MB/s) - 'logs.gz' saved [6632680/6632680]

$ gzip -d logs.gz

Logstash needs a configuration file that points the agent to the source log file and the target Elasticsearch cluster.

Create the below configuration file in the same directory.

$ cat > logstash.conf < "/data/logs"
		type => "logs"
		start_position => "beginning"
	}

}

filter
{
	grok{
		match => {
			"message" => "%{COMBINEDAPACHELOG}"
		}
	}
	mutate{
		convert => { "bytes" => "integer" }
	}
	date {
		match => [ "timestamp", "dd/MMM/YYYY:HH:mm:ss Z" ]
		locale => en
		remove_field => "timestamp"
	}
	geoip {
		source => "clientip"
	}
	useragent {
		source => "agent"
		target => "useragent"
	}
}


output
{
	stdout {
		codec => dots
	}

 	elasticsearch {
		hosts => [ "docker.for.mac.localhost:9200" ]
 	}

}
EOF

Notice how Logstash talks to Elasticsearch within the Docker container. The alias docker.for.mac.localhost maps to the host port on which the Docker VM is running. If you are running it on Windows machine, use the string docker.for.win.localhost.

With the sample log and configuration files in place, let’s launch the Docker container. We are passing an environment variable, running the container in host networking mode, and mounting the ./logstash directory as /data within the container.

Navigate back to the parent directory and launch the Logstash Docker container.

$ cd ..
$ docker run --rm -it --network host\
>	-e XPACK_MONITORING_ENABLED=FALSE \
>	-v $PWD/logstash:/data docker.elastic.co/logstash/logstash:6.5.1 \
>	/usr/share/logstash/bin/logstash -f /data/logstash.conf

After a few seconds, the agent starts streaming the log file to Elasticsearch cluster.

Ingesting data into Elasticsearch through Logstash

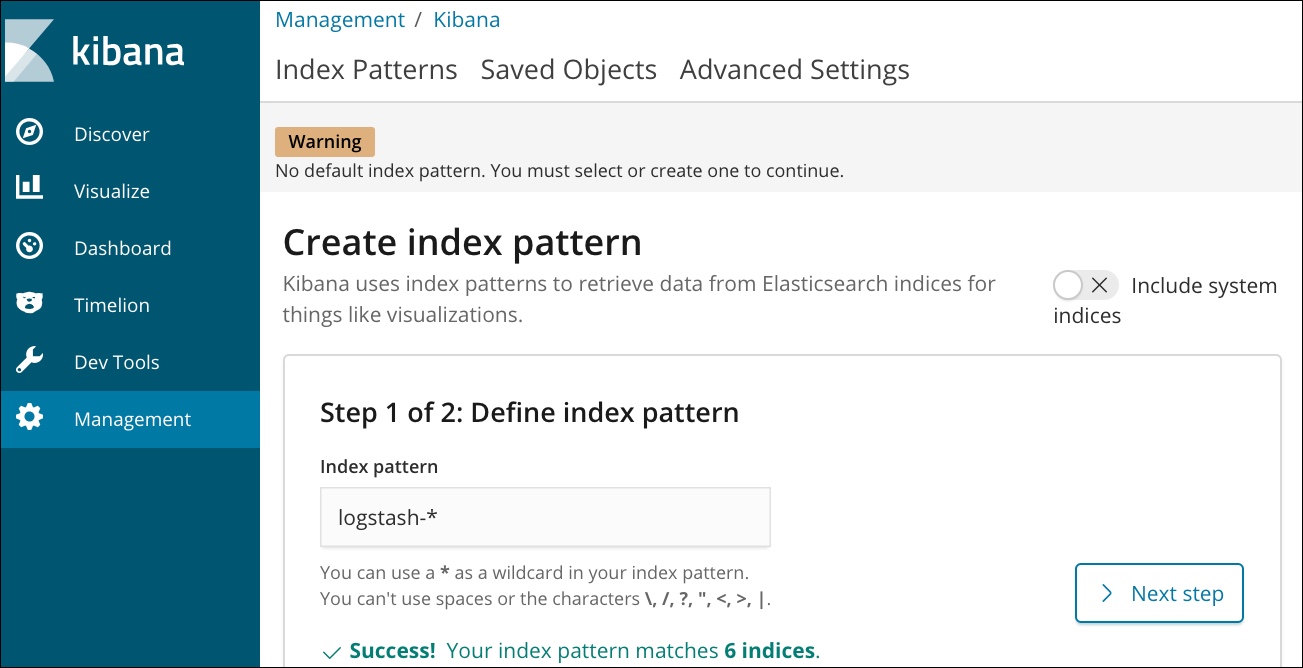

Switch to the browser to access the Kibana dashboard. Click the index pattern for Logstash by clicking on the Management tab and choosing @timestamp as the time filter field.

Ingesting data into Elasticsearch through Logstash step 1

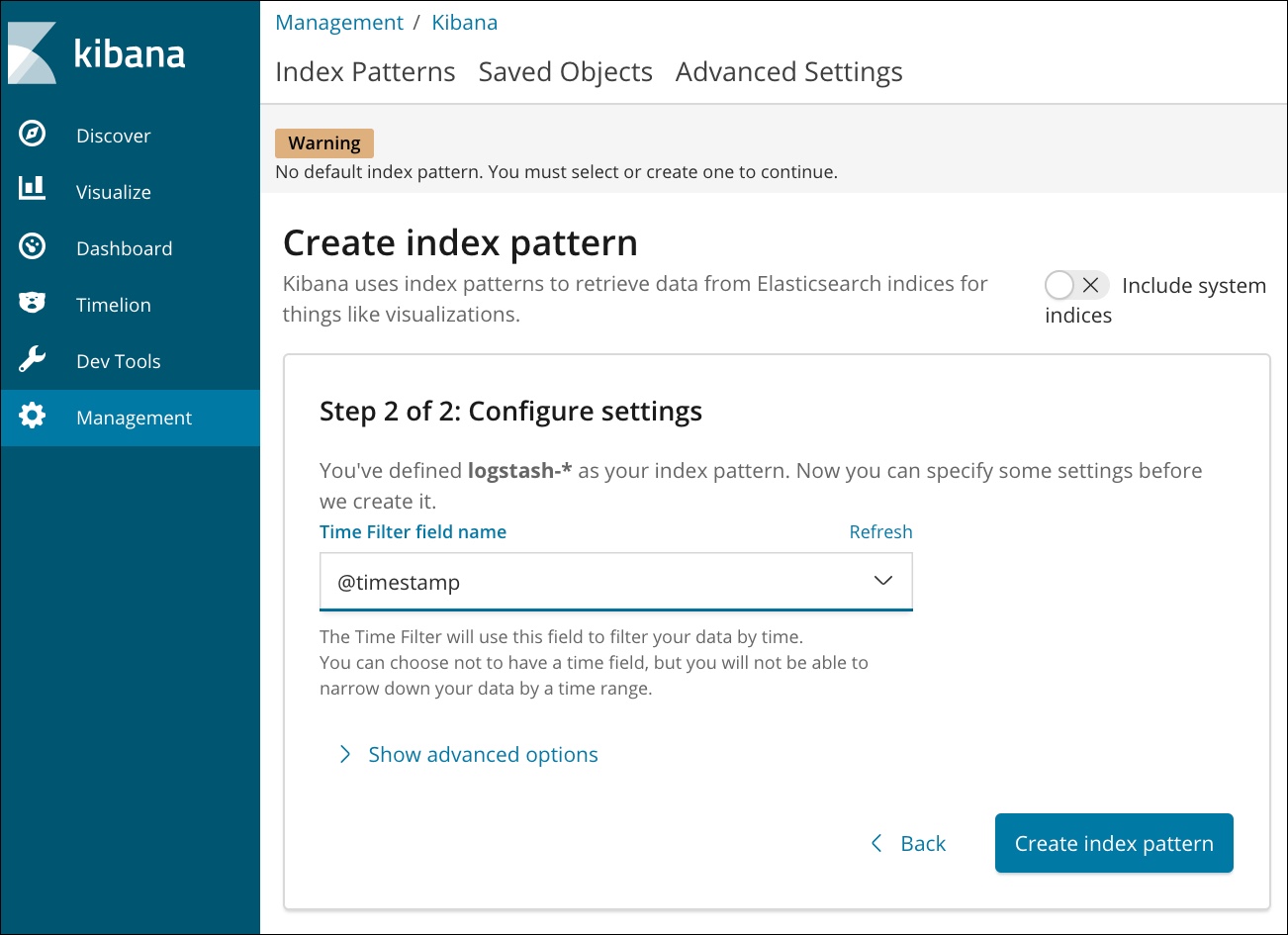

Ingesting data into Elasticsearch through Logstash step 2

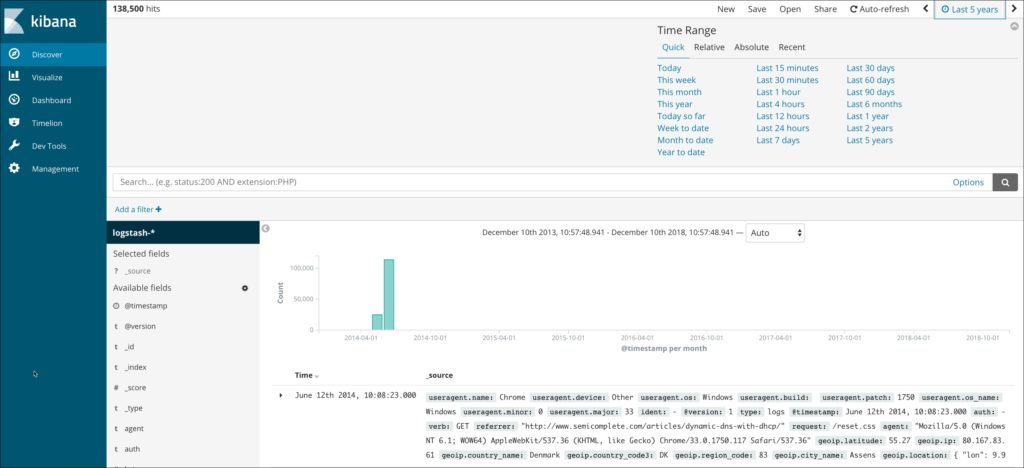

Click on the Discover tab, choose the timepicker and select Last 5 Years as the range. You should see Apache logs in the dashboard.

Ingesting data into Elasticsearch through Logstash

In a few minutes, the Logstash agent running in the Docker container will ingest all the data.

Ingesting data into Elasticsearch through Logstash



Failing over an Elasticsearch pod on Kubernetes

When one of the nodes running en Elasticsearch pod goes down, the pod will automatically get scheduled in another node with the same PVC backing it.

We will simulate the failover by cordoning off one of the nodes and deleting the Elasticsearch pod deployed on it. When the new pod is created it has the same number of documents as the original pod.

First, let’s get the count of the documents indexed and stored on node es-cluster-0. We can access this by calling the HTTP endpoint of the node.

$ EL_NODE_NAME=`curl -s 'http://localhost:9200/_nodes/es-cluster-0/stats/indices?pretty=true' | jq -r '.nodes | keys[0]'`

$ curl -s 'http://localhost:9200/_nodes/es-cluster-0/stats/indices?pretty=true' | jq .nodes.${EL_NODE_NAME}.indices.docs.count
140770

Let’s get the node name where the first Elasticsearch pod is running.

$ NODE=`oc get pods es-cluster-0 -o json | jq -r .spec.nodeName`

Now, let’s simulate the node failure by cordoning off the Kubernetes node.

$ oc adm cordon ${NODE}
node/ip-172-31-40-7.us-west-2.compute.internal cordoned

The above command disabled scheduling on one of the nodes.

$ oc get nodes
NAME                                          STATUS                     ROLES          AGE       VERSION
ip-172-31-34-178.us-west-2.compute.internal   Ready                      compute        1d        v1.11.0+d4cacc0
ip-172-31-35-140.us-west-2.compute.internal   Ready                      infra,master   1d        v1.11.0+d4cacc0
ip-172-31-37-244.us-west-2.compute.internal   Ready                      compute        1d        v1.11.0+d4cacc0
ip-172-31-40-7.us-west-2.compute.internal     Ready,SchedulingDisabled   compute        1d        v1.11.0+d4cacc0

Let’s go ahead and delete the pod es-cluster-0 running on the node that is cordoned off.

$ oc delete pod es-cluster-0
pod "es-cluster-0" deleted

Kubernetes controller now tries to create the pod on a different node.

$ oc get pods
NAME                        READY     STATUS     RESTARTS   AGE
docker-registry-1-mq7t9     1/1       Running    1          1d
es-cluster-0                0/1       Init:0/3   0          1s
es-cluster-1                1/1       Running    0          14m
es-cluster-2                1/1       Running    0          14m
kibana-5cf657765c-w7nl4     1/1       Running    0          5m
registry-console-1-f5wzl    1/1       Running    1          1d
router-1-nk4c7              1/1       Running    1          1d

Wait for the pod to be in Running state on the node.

$ oc get pods
NAME          READY     STATUS              RESTARTS   AGE
es-cluster-0  1/1       Running              0          1m
es-cluster-1   1/1       Running             0          1h
es-cluster-2   1/1       Running             0          1h

Finally, let’s verify that the data is still available.

$ EL_NODE_NAME=`curl -s 'http://localhost:9200/_nodes/es-cluster-0/stats/indices?pretty=true' | jq -r '.nodes | keys[0]'`

$ curl -s 'http://localhost:9200/_nodes/es-cluster-0/stats/indices?pretty=true' | jq .nodes.${EL_NODE_NAME}.indices.docs.count
140770

The matching document count confirms that the pod is backed by the same PV.



Capturing Application Consistent Snapshots to Restore Data

Portworx enables storage admins to perform backup and restore operations through the snapshots. 3DSnap is a feature to capture consistent snapshots from multiple nodes of a database cluster. This is highly recommended when running a multi-node Elasticsearch cluster as a Kubernetes StatefulSet. The 3DSnap will create a snapshot from each of the nodes in the cluster, which ensures that the state is accurately captured from the distributed cluster.

3DSnap allows administrators to execute commands just before taking the snapshot and right after completing the task of taking a snapshot. These triggers will ensure that the data is fully committed to the disk before the snapshot. Similarly, it is possible to run a workload-specific command to refresh or force sync immediately after restoring the snapshot.

This section will walk you through the steps involved in creating and restoring a 3DSnap for the Elasticsearch StatefulSet.



Creating a 3DSnap

It’s a good idea to flush the data to the disk before initiating the snapshot creation. This is defined through a rule, which is a Custom Resource Definition created by Stork, a Kubernetes scheduler extender and Operator created by Portworx.

$ cat > px-elastic-rule.yaml << EOF
apiVersion: stork.libopenstorage.org/v1alpha1
kind: Rule
metadata:
  name: px-elastic-rule
spec:
  - podSelector:
      app: elasticsearch
    actions:
    - type: command
      value: curl -s 'http://localhost:9200/_all/_flush'
EOF

Create the rule from the above YAML file.

$ oc create -f px-elastic-rule.yaml
rule.stork.libopenstorage.org "px-elastic-rule" created

We will now initiate a 3DSnap task to backup all the PVCs associated with the Elasticsearch pods belonging to the StatefulSet.

$ cat > px-elastic-snap.yaml << EOF
apiVersion: volumesnapshot.external-storage.k8s.io/v1
kind: VolumeSnapshot
metadata:
  name: elastic-3d-snapshot
  annotations:
    portworx.selector/app: elasticsearch
    stork.rule/pre-snapshot: px-elastic-rule
spec:
  persistentVolumeClaimName: data-es-cluster-0
EOF
$ oc create -f px-elastic-snap.yaml
volumesnapshot.volumesnapshot.external-storage.k8s.io/elastic-3d-snapshot created

Let’s now verify that the snapshot creation is successful.

$ oc get volumesnapshot
NAME                                                                         AGE
elastic-3d-snapshot                                                          21s
elastic-3d-snapshot-data-es-cluster-0-1e664b65-2189-11e9-865e-de77e24fecce   11s
elastic-3d-snapshot-data-es-cluster-1-1e664b65-2189-11e9-865e-de77e24fecce   12s
elastic-3d-snapshot-data-es-cluster-2-1e664b65-2189-11e9-865e-de77e24fecce   11s
$ oc get volumesnapshotdatas
NAME                                                                         AGE
elastic-3d-snapshot-data-es-cluster-0-1e664b65-2189-11e9-865e-de77e24fecce   35s
elastic-3d-snapshot-data-es-cluster-1-1e664b65-2189-11e9-865e-de77e24fecce   36s
elastic-3d-snapshot-data-es-cluster-2-1e664b65-2189-11e9-865e-de77e24fecce   35s
k8s-volume-snapshot-24636a1c-2189-11e9-b33a-4a3867a50193                     35s



Restoring from a 3DSnap

Let’s now restore from the 3DSnap. Before that, we will simulate the crash by deleting the StatefulSet and associated PVCs.

$ oc delete sts es-cluster
statefulset.apps "es-cluster" deleted
$ oc delete pvc -l app=elasticsearch
persistentvolumeclaim "data-es-cluster-0" deleted
persistentvolumeclaim "data-es-cluster-1" deleted
persistentvolumeclaim "data-es-cluster-2" deleted

Now our Kubernetes cluster has no Elasticsearch instance running. Let’s go ahead and restore the data from the snapshot before relaunching the StatefulSet.

We will now create three Persistent Volume Claims (PVCs) from existing 3DSnap with exactly the same volume name that the StatefulSet expects. When the pods are created as a part of the StatefulSet, they point to the existing PVCs which are already populated with the data restored from the snapshots.

Let’s create three PVCs from the 3DSnap snapshots. Notice how the annotation points to the snapshot in each PVC manifest.

$ cat > px-elastic-pvc-0.yaml << EOF
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: data-es-cluster-0
  labels:
     app: elasticsearch
  annotations:
    snapshot.alpha.kubernetes.io/snapshot: "elastic-3d-snapshot-data-es-cluster-0-1e664b65-2189-11e9-865e-de77e24fecce"
spec:
  accessModes:
     - ReadWriteOnce
  storageClassName: stork-snapshot-sc
  resources:
    requests:
      storage: 5Gi
EOF
$ cat > px-elastic-pvc-1.yaml << EOF
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: data-es-cluster-1
  labels:
     app: elasticsearch
  annotations:
    snapshot.alpha.kubernetes.io/snapshot: "elastic-3d-snapshot-data-es-cluster-1-1e664b65-2189-11e9-865e-de77e24fecce"
spec:
  accessModes:
     - ReadWriteOnce
  storageClassName: stork-snapshot-sc
  resources:
    requests:
      storage: 5Gi
EOF
$ cat > px-cassandra-pvc-2.yaml << EOF
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: data-es-cluster-2
  labels:
     app: elasticsearch
  annotations:
    snapshot.alpha.kubernetes.io/snapshot: "elastic-3d-snapshot-data-es-cluster-2-1e664b65-2189-11e9-865e-de77e24fecce"
spec:
  accessModes:
     - ReadWriteOnce
  storageClassName: stork-snapshot-sc
  resources:
    requests:
      storage: 5Gi
EOF

Create the PVCs from the above definitions.

$ oc create -f px-elastic-snap-pvc-0.yaml
persistentvolumeclaim "data-es-cluster-0" created

$ oc create -f px-elastic-snap-pvc-1.yaml
persistentvolumeclaim "data-es-cluster-1" created

$ oc create -f px-elastic-snap-pvc-2.yaml
persistentvolumeclaim "data-es-cluster-2" created

Verify that the new PVCs are ready and bound.

$ oc get pvc
NAME                         STATUS    VOLUME                                     CAPACITY   ACCESS MODES   STORAGECLASS        AGE
data-es-cluster-0   Bound     pvc-31389fa1-218a-11e9-865e-de77e24fecce   5Gi        RWO            stork-snapshot-sc   12s
data-es-cluster-1   Bound     pvc-3319c230-218a-11e9-865e-de77e24fecce   5Gi        RWO            stork-snapshot-sc   9s
data-es-cluster-2   Bound     pvc-351bb0b6-218a-11e9-865e-de77e24fecce   5Gi        RWO            stork-snapshot-sc   5s

With the PVCs in place, we are ready to launch the StatefulSet with no changes to the YAML file. Everything remains exactly the same while the data is already restored from the snapshots.

$ oc create -f px-elastic-app.yaml
statefulset.apps "es-cluster" created

Check the data through the curl request sent to one the Elastic pods.

$ oc port-forward es-cluster-0 9200:9200 &
$ EL_NODE_NAME=`curl -s 'http://localhost:9200/_nodes/es-cluster-0/stats/indices?pretty=true'| jq -r '.nodes | keys[0]'`
$ curl -s 'http://localhost:9200/_nodes/es-cluster-0/stats/indices?pretty=true' | jq .nodes.${EL_NODE_NAME}.indices.docs.count
140770

Congratulations! You have successfully restored an application consistent snapshot for Elasticsearch.



Summary

Portworx can easily be deployed on Red Hat OpenShift to run stateful workloads in production. It integrates well with Kubernetes and OpenShift StatefulSets by providing dynamic provisioning. Additional operations such as expanding the volumes and performing backups stored as snapshots on object storage can be performed while managing production workloads.

Avatar

Contributor | Certified Kubernetes Administrator (CKA) and Developer (CKAD)

Share Share on Facebook Tweet about this on Twitter Share on LinkedIn



Back to Blog
