And now, onto the post…

We’ve been excited to partner with Microsoft, including enabling innovative customers like Beco to build an IoT cloud on Microsoft Azure. Working with the Azure Kubernetes Service (AKS) team and Brendan Burns, distinguished engineer at Microsoft, we’re excited to showcase how Portworx runs on AKS to provide seamless support for any Kubernetes customer. Brendan and Eric Han, our VP of Product, were both part of the original Kubernetes team at Google and it is exciting to watch Kubernetes mature and extend into the enterprise.

Today’s post will look at Azure Kubernetes Service (AKS), a managed Kubernetes offering from Microsoft, which makes it easy to create, configure, and manage a cluster of virtual machines that are preconfigured to run containerized applications.

Portworx, is a cloud-native storage platform to run persistent workloads deployed on a variety of orchestration engines including Kubernetes. With Portworx, customers can manage the database of their choice on any infrastructure using any container scheduler. It provides a single data management layer for all stateful services, no matter where they run.

This tutorial is a walk-through of the steps involved in deploying and managing a highly available PostgreSQL cluster on AKS.

In summary, to run HA PostgreSQL on AKS you need to:

  1. Create an AKS cluster following these instructions, which this guide refers to as a set of compute nodes
  2. Provision storage nodes with Managed Disks in order to allow for compute nodes to scale independently of storage
  3. Install cloud native storage solution like Portworx as a daemon set on AKS
  4. Create storage class defining your storage requirements like replication factor, snapshot policy, and performance profile
  5. Deploy PostgreSQL using Kubernetes
  6. Test failover by killing or cordoning node in your cluster and confirming that data is still accessible
  7. Optional: dynamically resize Postgres volume, snapshot and backup Postgres to Azure object storage

How to set up an AKS cluster

Portworx is fully supported on Azure Kubernetes Service. Run the following commands to configure a 3 node cluster in Europe West. More on Azure AKS is available here.

$ az group create --name px --location westeurope
$ az aks install-cli
$ az aks create --resource-group px --name pxdemo --node-count 3 --generate-ssh-keys
$ az aks get-credentials --resource-group px --name pxdemo

When the cluster is ready, verify it with the following command:

$ kubectl get nodes

NAME STATUS ROLES AGE VERSION
aks-nodepool1-12748671-0 Ready agent 55m v1.9.6
aks-nodepool1-12748671-1 Ready agent 55m v1.9.6
aks-nodepool1-12748671-2 Ready agent 55m v1.9.6

Provision Azure Storage Nodes

Running storage nodes separately from compute nodes will allow us to independently scale compute and storage resources. We use Portworx to manage the storage nodes and also access storage from the compute nodes.

Follow these steps to create three storage node VMs. Afterwards, we attach the Managed Disk to the storage nodes in the Azure portal using these instructions. Finally, we ssh into the VM and install Portworx on each of the storage nodes using the commands below.

latest_stable=$(curl -fsSL 'https://install.portworx.com/1.4/?type=dock&stork=false' | awk '/image: / {print $2}')

# Download OCI bits (reminder, you will still need to run `px-runc install ..` after this step)
sudo docker run --entrypoint /runc-entry-point.sh \
--rm -i --privileged=true \
-v /opt/pwx:/opt/pwx -v /etc/pwx:/etc/pwx \
$latest_stable
# Basic installation where
sudo /opt/pwx/bin/px-runc install -c CLUSTER-NAME \
-k etcd://[etcd-service]:2379 \
-a -f
# Reload systemd configurations, enable and start Portworx service
sudo systemctl daemon-reload
sudo systemctl enable portworx
sudo systemctl start portworx

For the CLUSTER-NAME, use the same string in each of your installs for that cluster.

Installing Portworx in AKS

Here is an example spec for deploying Portworx on Azure. Note that the [cluster-name] should be replaced with cluster name provided to the storage nodes (in the prior step). Also the Kubernetes version used here is 1.9.6 and the etcd-service should be updated with an etcd endpoint.

$ kubectl apply -f portworx_azure_example_spec.yaml

After all the components of Portworx are installed, check for the Portworx Pods running running on each node as a DaemonSet. Example PX daemonset spec can be found here

$ kubectl get pods -n=kube-system -l name=portworx

NAME READY STATUS RESTARTS AGE
portworx-kw2kz 1/1 Running 0 43m
portworx-pkgdf 1/1 Running 0 43m
portworx-w6hkg 1/1 Running 0 43m

Get the first Pod name of the DaemonSet, and check the status of Portworx cluster.

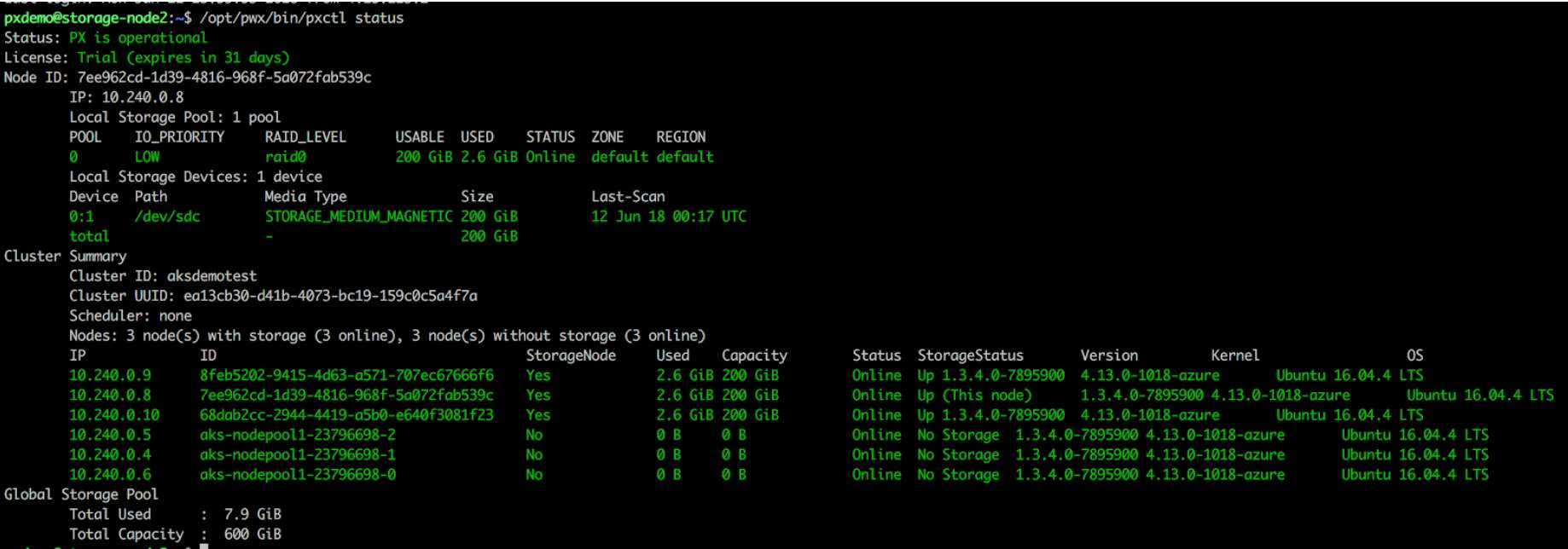

aks-postgres-install-1

$ PX_POD=$(kubectl get pods -l name=portworx -n kube-system -o jsonpath='{.items[0].metadata.name}')

Notice that the total capacity available to Portworx is an aggregate of all the disks that we attached, which adds up to 600GiB.

Once the AKS cluster is up and running, and Portworx is installed and configured, we will deploy a highly available PostgreSQL database.

Creating a Postgres storage class in Kubernetes

Through Storage Class objects, an admin can define different classes of Portworx volumes that are offered in a cluster. These classes will be used during the dynamic provisioning of volumes. The Storage Class defines the replication factor, IO profile (e.g. for a database or a CMS), and priority (e.g. SSD or HDD). These parameters impact the availability and throughput of workload and can be specified for each volume. This is important because a production database will have different requirements than a development Jenkins cluster.

In this example, the Storage Class that we deploy has a replication factor of 3 with IO profile set to “db_remote”, and priority set to “high”. This means that the storage will be optimized for low latency database workloads like PostgreSQL and automatically placed on the highest performance storage available in the cluster.

$ cat > px-repl3-sc.yaml << EOF
kind: StorageClass
apiVersion: storage.k8s.io/v1beta1
metadata:
    name: px-repl3-sc
provisioner: kubernetes.io/portworx-volume
parameters:
   repl: "3"
   io_profile: "db_remote"
   priority_io: "high"
EOF
$ kubectl create -f px-repl3-sc.yaml
storageclass "px-repl3-sc" created

Creating a Postgres PVC on AKS

We can now create a Persistent Volume Claim (PVC) based on the Storage Class. Thanks to dynamic provisioning, the claims will be created without explicitly provisioning Persistent Volume (PV).

$ cat > px-postgres-pvc.yaml << EOF
kind: PersistentVolumeClaim
apiVersion: v1
metadata:
   name: px-postgres-pvc
   annotations:
     volume.beta.kubernetes.io/storage-class: px-repl3-sc
spec:
   accessModes:
     - ReadWriteOnce
   resources:
     requests:
       storage: 1Gi
EOF
$ kubectl create -f px-postgres-pvc.yaml
persistentvolumeclaim "px-postgres-pvc" created

The password for PostgreSQL will be created as a secret. Run the following commands to create the secret in the correct format.

$ echo postgres123 > password.txt
$ tr -d '\n' .strippedpassword.txt && mv .strippedpassword.txt password.txt

$ kubectl create secret generic postgres-pass --from-file=password.txt
secret "postgres-pass" created

Deploying Postgres on AKS

Finally, let’s create PostgreSQL instance as a Kubernetes deployment object. For simplicity sake, we will just be deploying a single Postgres pod. Because Portworx provides synchronous replication for High Availability, a single Postgres instance might be the best deployment option for your Postgres database. Portworx can also provide backing volumes for multi-node Postgres deployments. The choice is yours.

$ cat > postgres-app.yaml << EOF
apiVersion: apps/v1
kind: Deployment
metadata:
  name: postgres
spec:
  strategy:
    rollingUpdate:
      maxSurge: 1
      maxUnavailable: 1
    type: RollingUpdate
  replicas: 1
  selector:
    matchLabels:
      app: postgres
  template:
    metadata:
      labels:
        app: postgres
    spec:
      schedulerName: stork
      containers:
      - name: postgres
        image: postgres:9.5
        imagePullPolicy: "Always"
        ports:
        - containerPort: 5432
        env:
        - name: POSTGRES_USER
          value: pgbench
        - name: PGUSER
          value: pgbench
        - name: POSTGRES_PASSWORD
          valueFrom:
            secretKeyRef:
              name: postgres-pass
              key: password.txt
        - name: PGBENCH_PASSWORD
          value: superpostgres
        - name: PGDATA
          value: /var/lib/postgresql/data/pgdata
        volumeMounts:
        - mountPath: /var/lib/postgresql/data
          name: postgredb
      volumes:
      - name: postgredb
        persistentVolumeClaim:
          claimName: px-postgres-pvc
EOF
$ kubectl create -f postgres-app.yaml
deployment "postgres" created

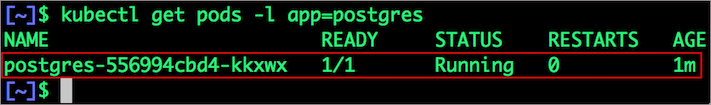

Wait till the Postgres pod is in running state.

px-pgsql

We can inspect the Portworx volume by accessing the pxctl tool running with the Postgres pod.

$ VOL=`kubectl get pvc | grep px-postgres-pvc | awk '{print $3}'`
$ PX_POD=$(kubectl get pods -l name=portworx -n kube-system -o jsonpath='{.items[0].metadata.name}')

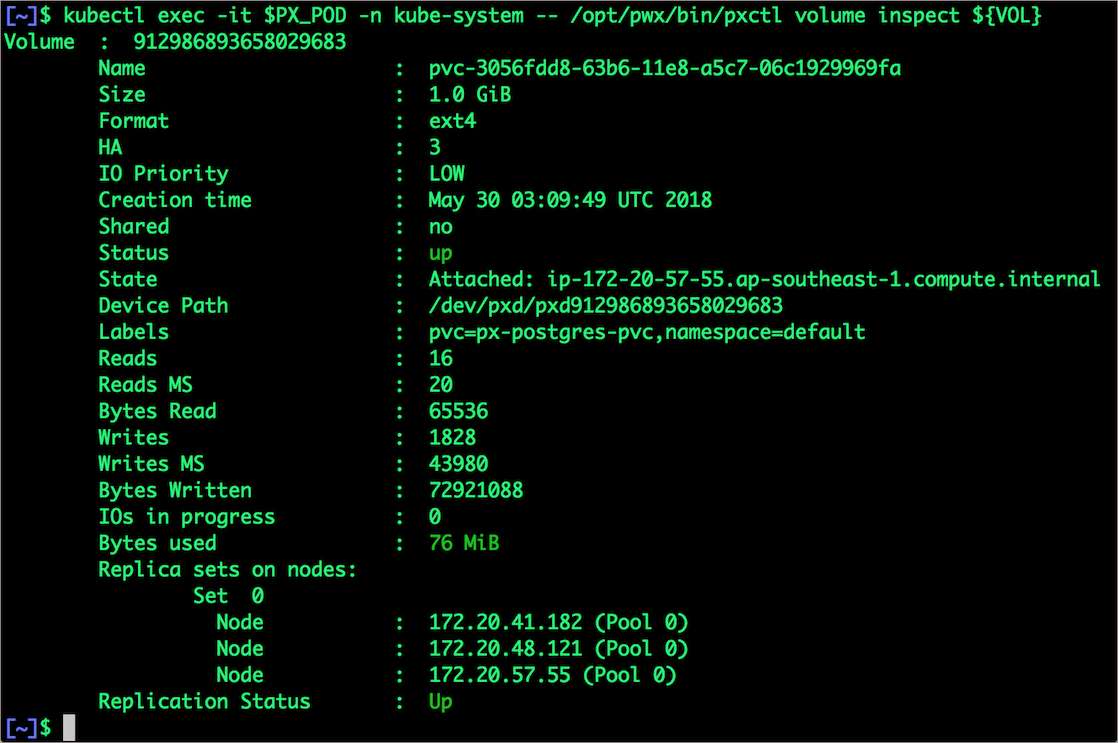

$ kubectl exec -it $PX_POD -n kube-system -- /opt/pwx/bin/pxctl volume inspect ${VOL}

px-pgsql-3

Failing over PostgreSQL on AKS

Let’s populate the database will 5 million rows of sample data.

We will first find the pod that’s running PostgreSQL to access the shell.

$ POD=`kubectl get pods -l app=postgres | grep Running | grep 1/1 | awk '{print $1}'`
$ kubectl exec -it $POD bash

Now that we are inside the pod, we can connect to Postgres and create a database.

# psql
pgbench=# c\q

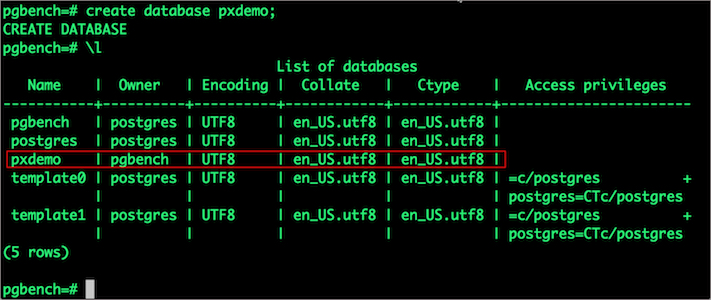

pgbench=# \l
pgbench=# \q

px-pgsql

By default, pgbench will create 4 tables (pgbench_branches, pgbench_tellers, pgbench_accounts, and pgbench_history) with 100,000 rows in the main pgbench_accounts table. This creates a simple 16MB database.

The -s option is used for multiplying the number of rows entered into each table. In the command below, we enter a “scaling” option of 50. This tells pgbench to create a database with 50 times the default size.

What this means is our pgbench_accounts table now has 5,000,000 records. It also means our database size is now 800MB (50 x 16MB).

# pgbench -i -s 50 pxdemo;

Wait for pgbench to finish populating the table. After that’s done, let’s verify that the pgbench_accounts is populated by 5 million rows.

# psql pxdemo
\dt
select count(*) from pgbench_accounts;
\q
exit

px-pgsql

px-pgsql

Now, let’s simulate the node failure by cordoning off the node on which PostgreSQL is running.

$ NODE=`kubectl get pods -l app=postgres -o wide | grep -v NAME | awk '{print $7}'`
$ kubectl cordon ${NODE}


node "ip-172-20-57-55.ap-southeast-1.compute.internal" cordoned

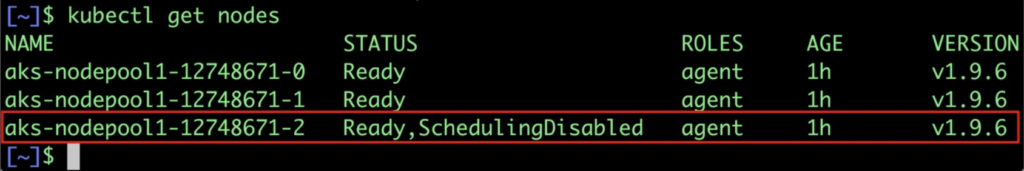

Executing kubectl get nodes confirms that scheduling is disabled for one of the nodes.

$ kubectl get nodes

kubctl-get-nodes-aks

We will now go ahead and delete the PostgreSQL pod.

$ POD=`kubectl get pods -l app=postgres -o wide | grep -v NAME | awk '{print $1}'`
$ kubectl delete pod ${POD}

pod "postgres-556994cbd4-b6ghn" deleted

As soon as the pod is deleted, it is relocated to the node with the replicated data. STorage ORchestrator for Kubernetes (STORK), Portworx’s custom storage scheduler allows co-locating the pod on the exact node where the data is stored. It ensures that an appropriate node is selected for scheduling the pod.

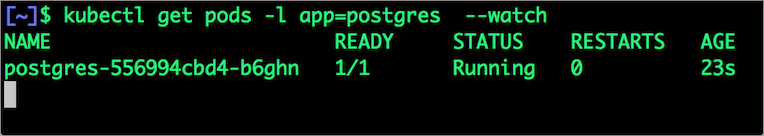

Let’s verify this by running the below command. We will notice that a new pod has been created and scheduled in a different node.

$ kubectl get pods -l app=postgres

px-pgsql

Let’s uncordon the node to bring it back to action.

$ kubectl uncordon ${NODE}

node "ip-172-20-57-55.ap-southeast-1.compute.internal" uncordoned

Finally, let’s verify that the data is still available.

Let’s find the pod name and exec into the container.

$ POD=`kubectl get pods -l app=postgres | grep Running | grep 1/1 | awk '{print $1}'`
$ kubectl exec -it $POD bash

Now use psql to make sure our data is still there.

# psql pxdemo

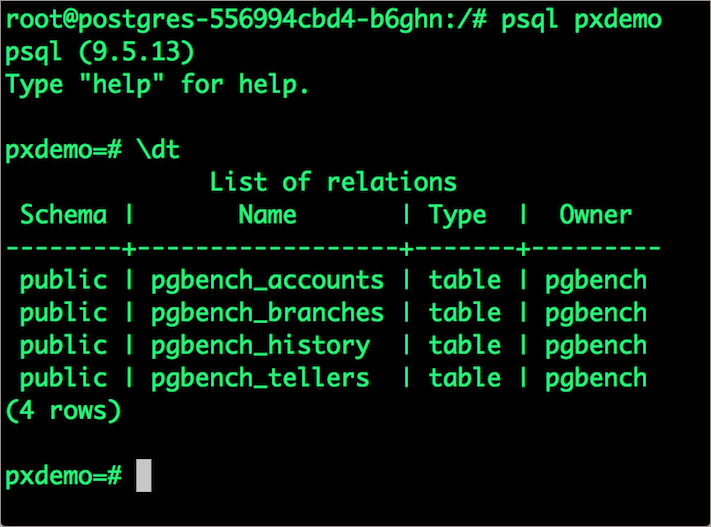

pxdemo=# \dt
pxdemo=# select count(*) from pgbench_accounts;
pxdemo=# \q
pxdemo=# exit

px-pgsql

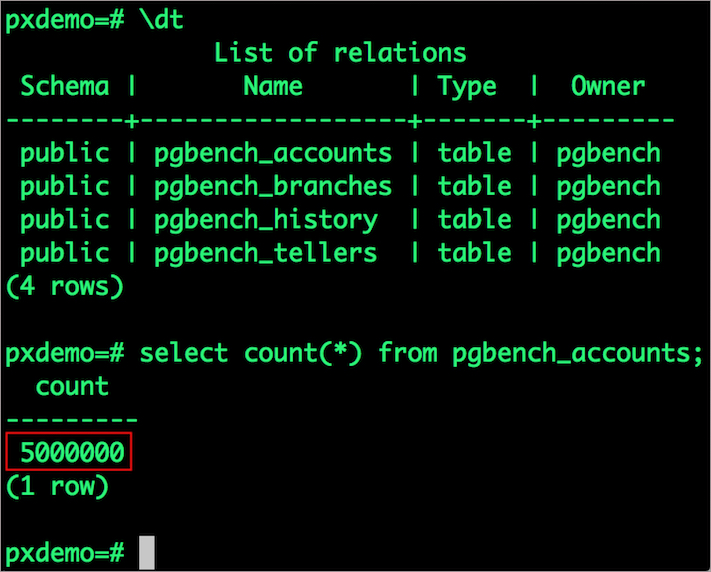

Observe that the database table is still there and all the content intact!

Performing Storage Operations on Postgres on AKS

After testing end-to-end failover of the database, let’s perform StorageOps on our AKS cluster.
Expanding the Volume with no downtime

We will now run a bigger benchmark to run out of space to show how easy it is to add space to a volume dynamically.

Open a shell inside the container.

$ POD=`kubectl get pods -l app=postgres | grep Running | awk '{print $1}'`
$ kubectl exec -it $POD bash

Let’s use pgbench to run a baseline transaction benchmark which will try to grow the volume to more than 1 Gib and fail.

$ pgbench -c 10 -j 2 -t 10000 pxdemo
$ exit



There may be multiple errors during the execution of the above command. The first error indicates that Pod is running out of space.

PANIC: could not write to file “pg_xlog/xlogtemp.73”: No space left on device

Since Kubernetes doesn’t support modifying the PVC after creation, we perform this operation directly on Portworx with the pxctl cli tool.

Let’s get the volume name and inspect it through the pxctl tool.

If you have access, SSH into one of the nodes and run the following command.

POD=`/opt/pwx/bin/pxctl volume list --label pvc=px-postgres-pvc | grep -v ID | awk '{print $1}'`

$ /opt/pwx/bin/pxctl v i $POD

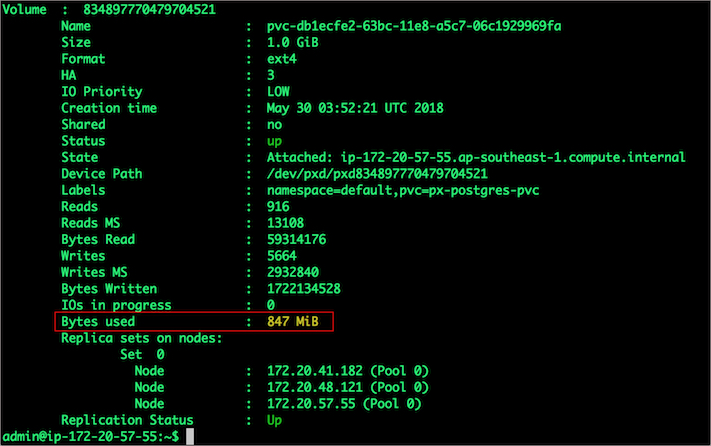

Notice that the volume is within 10% of being full. Let’s expand it using the following command.

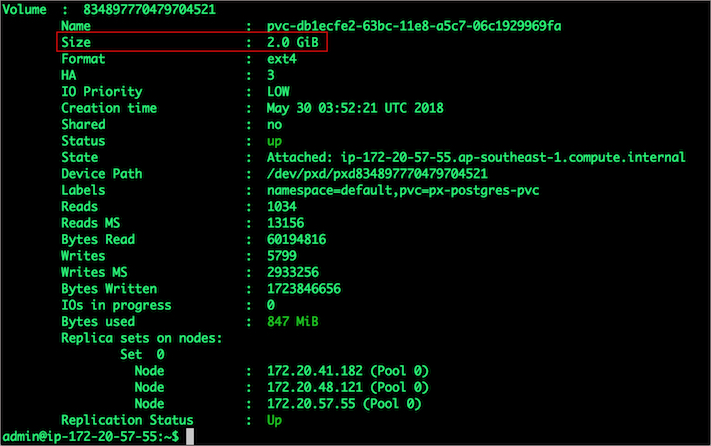

$ /opt/pwx/bin/pxctl volume update $POD --size=2

Update Volume: Volume update successful for volume 834897770479704521

px-pgsql

px-pgsql

Taking Snapshots of a Kubernetes volume and restoring the Postgres database

Portworx supports creating snapshots for Kubernetes PVCs.

Let’s create a snapshot for the PVC we created for Postgres.

$ cat > px-snap.yaml  <<EOF
apiVersion: volumesnapshot.external-storage.k8s.io/v1
kind: VolumeSnapshot
metadata:
  name: px-postgres-snapshot
  namespace: default
spec:
  persistentVolumeClaimName: px-postgres-pvc
EOF
kubectl create -f px-snap.yaml
volumesnapshot "px-postgres-snapshot" created

You can see all the snapshots using the below command.

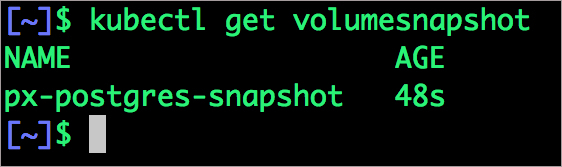

$ kubectl get volumesnapshot,volumesnapshotdata

px-pgsql

px-pgsql

With the snapshot in place, let’s go ahead and delete the database.

$ POD=`kubectl get pods -l app=postgres | grep Running | grep 1/1 | awk '{print $1}'`
$ kubectl exec -it $POD bash
$ psql
drop database pxdemo;
\l
\q
exit

Since snapshots are just like volumes, we can use it to start a new instance of PostgresSQL. Let’s create a new instance of PostgresSQL by restoring the snapshot data.

$ cat > px-snap-pvc.yaml <<EOF
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: px-postgres-snap-clone
  annotations:
    snapshot.alpha.kubernetes.io/snapshot: px-postgres-snapshot
spec:
  accessModes:
     - ReadWriteOnce
  storageClassName: stork-snapshot-sc
  resources:
    requests:
      storage: 2Gi
EOF
kubectl create -f px-snap.yaml
persistentvolumeclaim "px-postgres-snap-clone" created

From the new PVC, we will create a PostgreSQL pod.

$ cat > postgres-app-restore.yaml << EOF
apiVersion: apps/v1
kind: Deployment
metadata:
  name: postgres-snap
spec:
  strategy:
    rollingUpdate:
      maxSurge: 1
      maxUnavailable: 1
    type: RollingUpdate
  replicas: 1
  selector:
    matchLabels:
      app: postgres-snap
  template:
    metadata:
      labels:
        app: postgres-snap
    spec:
      affinity:
        nodeAffinity:
          requiredDuringSchedulingIgnoredDuringExecution:
            nodeSelectorTerms:
            - matchExpressions:
              - key: px/running
                operator: NotIn
                values:
                - "false"
              - key: px/enabled
                operator: NotIn
                values:
                - "false"
      containers:
      - name: postgres
        image: postgres:9.5
        imagePullPolicy: "IfNotPresent"
        ports:
        - containerPort: 5432
        env:
        - name: POSTGRES_USER
          value: pgbench
        - name: PGUSER
          value: pgbench
        - name: POSTGRES_PASSWORD
          valueFrom:
            secretKeyRef:
              name: postgres-pass
              key: password.txt
        - name: PGBENCH_PASSWORD
          value: superpostgres
        - name: PGDATA
          value: /var/lib/postgresql/data/pgdata
        volumeMounts:
        - mountPath: /var/lib/postgresql/data
          name: postgredb
      volumes:
      - name: postgredb
        persistentVolumeClaim:
          claimName: px-postgres-snap-clone
EOF
kubectl create -f postgres-app-restore.yaml
deployment "postgres-snap" created

Verify that the new pod is in running state


$ kubectl get pods -l app=postgres-snap

px-pgsql

Finally, let’s access the data created by the benchmark tool earlier in the walkthrough.


$ POD=`kubectl get pods -l app=postgres-snap | grep Running | grep 1/1 | awk '{print $1}'`
$ kubectl exec -it $POD bash

$ psql pxdemo
\dt
select count(*) from pgbench_accounts;
\q
exit

pxdemo

Notice that the table is still there with the data intact.

Summary

Portworx can be easily deployed on Azure Kubernetes Service to run stateful workloads in productions. Through the integration of Portworx and AKS, DevOps and DataOps teams can seamlessly run highly available database clusters in AKS. They can perform traditional operations such as volume expansion, snapshots, backup and recovery for the cloud-native applications.

Share
Subscribe for Updates

About Us
Portworx is the leader in cloud native storage for containers.

Janakiram

Janakiram MSV

Contributor | Certified Kubernetes Administrator (CKA) and Developer (CKAD)
Explore Related Content:
  • aks
  • azure
  • postgresql
link
kubernetes
May 29, 2018 How To
PostgreSQL Kubernetes: How to run HA Postgres on Kubernetes
Janakiram MSV
Janakiram MSV
link
Docker-Crash
March 20, 2018 How To
Debugging Errors in Kubernetes on Azure: Docker Daemon Crash or Stop
Kai Davenport
Kai Davenport
link
Twitter social
March 20, 2018 How To
Debugging Errors in Kubernetes on Azure: Network Partition
Kai Davenport
Kai Davenport
